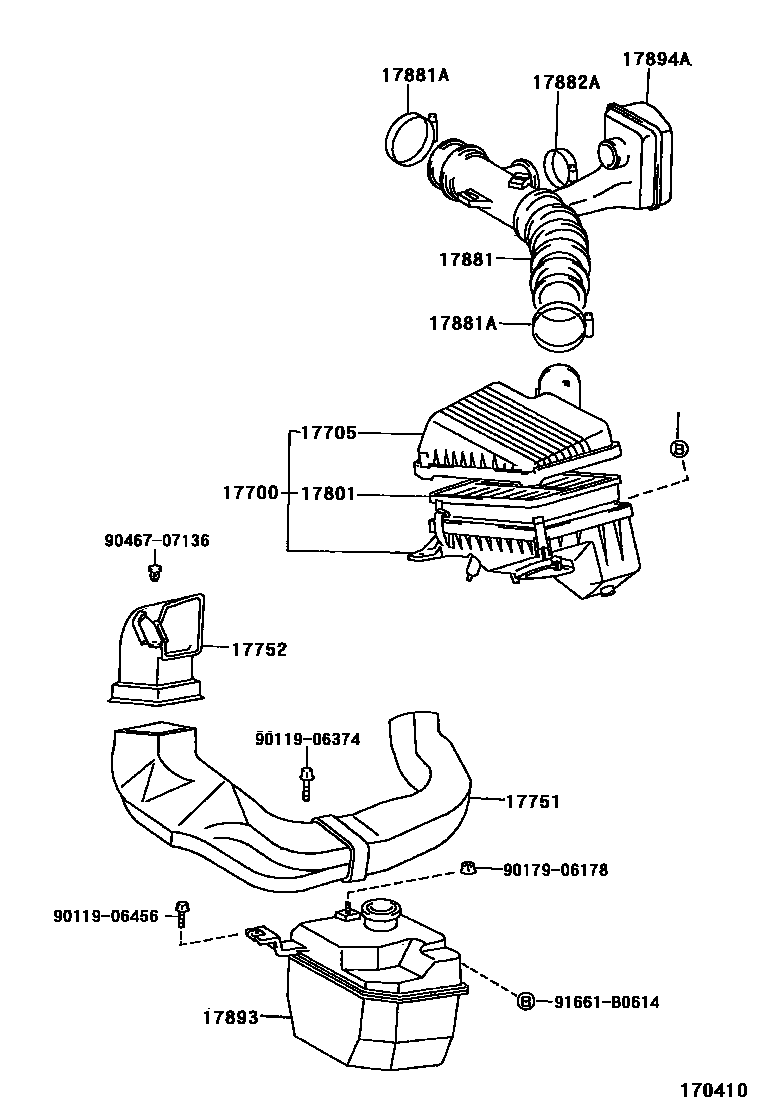

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-02040 |
| 17705 | Air filter cover sub-assembly | 17705-02040 |
| 17751 | No. 1 air filter air inlet | 17750-02010 |
| 17752 | No. 2 air filter air inlet | 17753-02010 |
| 17801 | Air filter element sub-assembly | 17801-02030 |
| 17881 | No. 1 air cleaner hose | 17881-02030 · 17881-02040 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-73001 · 90460-73007 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90080-46097 · 90080-46146 |
| 17893 | Intake resonator | 17893-02010 |
| 17894A | No. 2 intake resonator | 17894-02010 · 17894-02020 |
