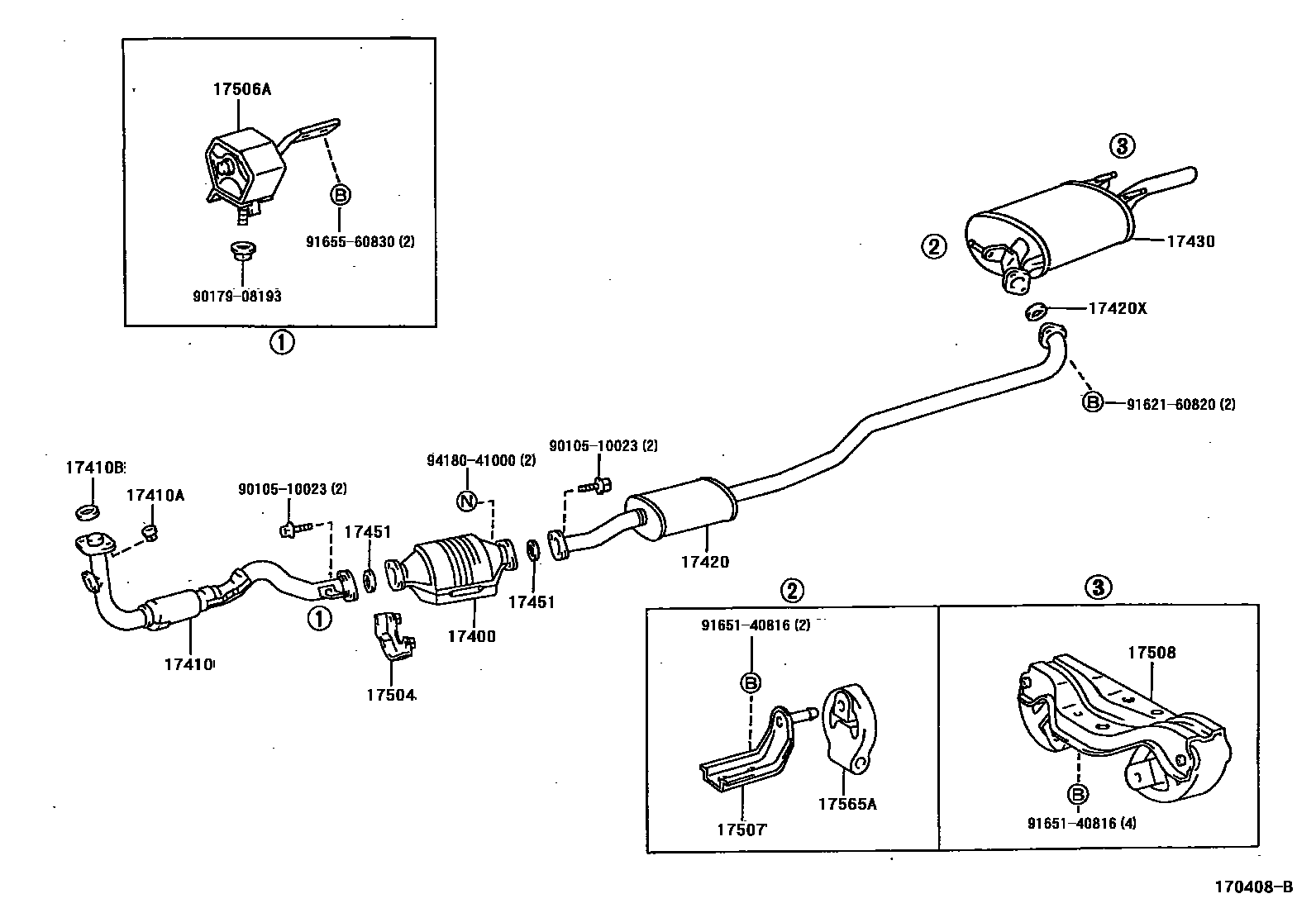

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-01060 · 18450-01070 · 18450-01080 · 18450-01090 · 18450-01100 · 18450-01110 · 18450-02060 · 18450-16520 · 18450-16580 · 18450-16670 · 18450-16680 |
| 17410 | Front exhaust pipe assembly | 17410-02090 · 17410-02100 · 17410-02110 · 17410-02120 · 17410-02240 · 17410-02250 · 17410-02280 · 17410-02290 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06065 |
| 17420 | Central exhaust pipe assembly | 17420-01100 · 17420-01110 · 17420-02080 |
| 17420X | Center exhaust pipe liner | 90917-06074 |
| 17430 | Exhaust tailpipe assembly | 17430-01070 · 17430-02080 |
| 17451 | Exhaust pipe gasket | 90917-06041 · 90917-06044 · 90917-06045 |
| 17504 | Three-way catalytic converter bracket sub-assembly | 17504-01010 · 17582-41030 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-02030 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-02020 |
| 17508 | No. 3 exhaust pipe bracket sub-assembly | 17508-01030 · 17508-02040 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-02090 |
