Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.

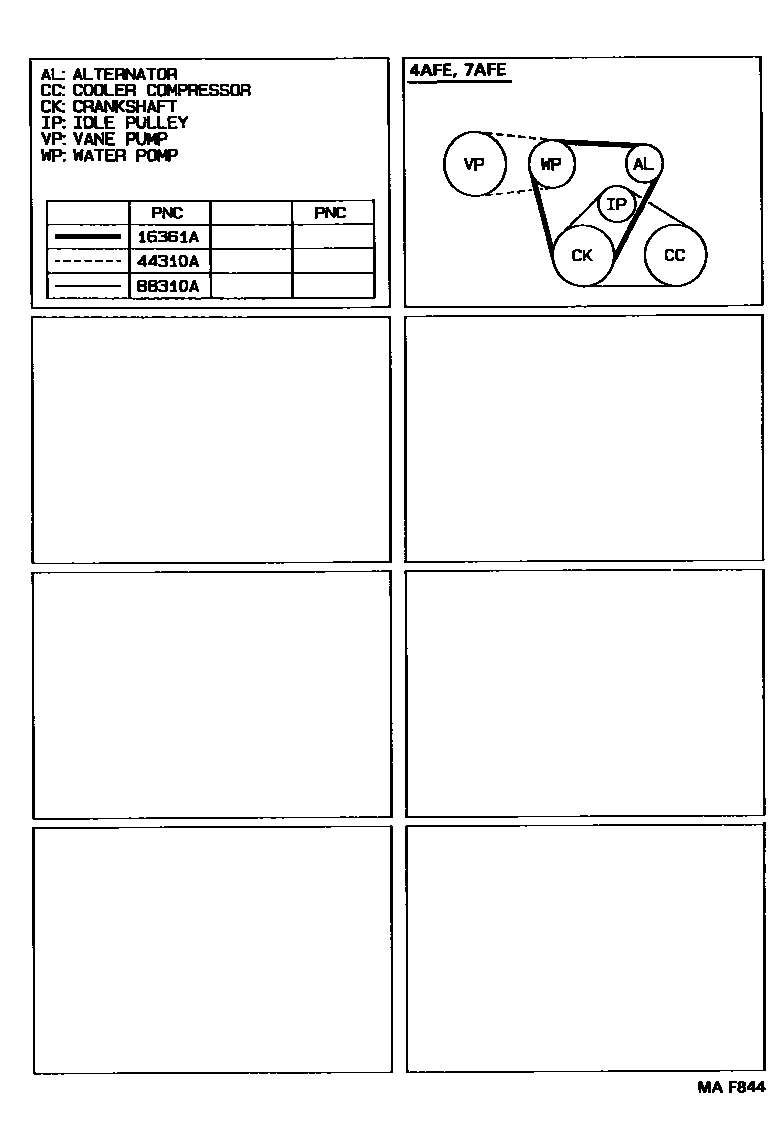

Toyota COROLLA V-Belt EPC diagram — MAF844
V-Belt — MAF844 (199209 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90080-91055
44310AV-belt (for vane pump)90080-91051
88310ANo. 1 V-belt (cooler compressor to crankshaft pulley)90080-91047 · 90082-93002
