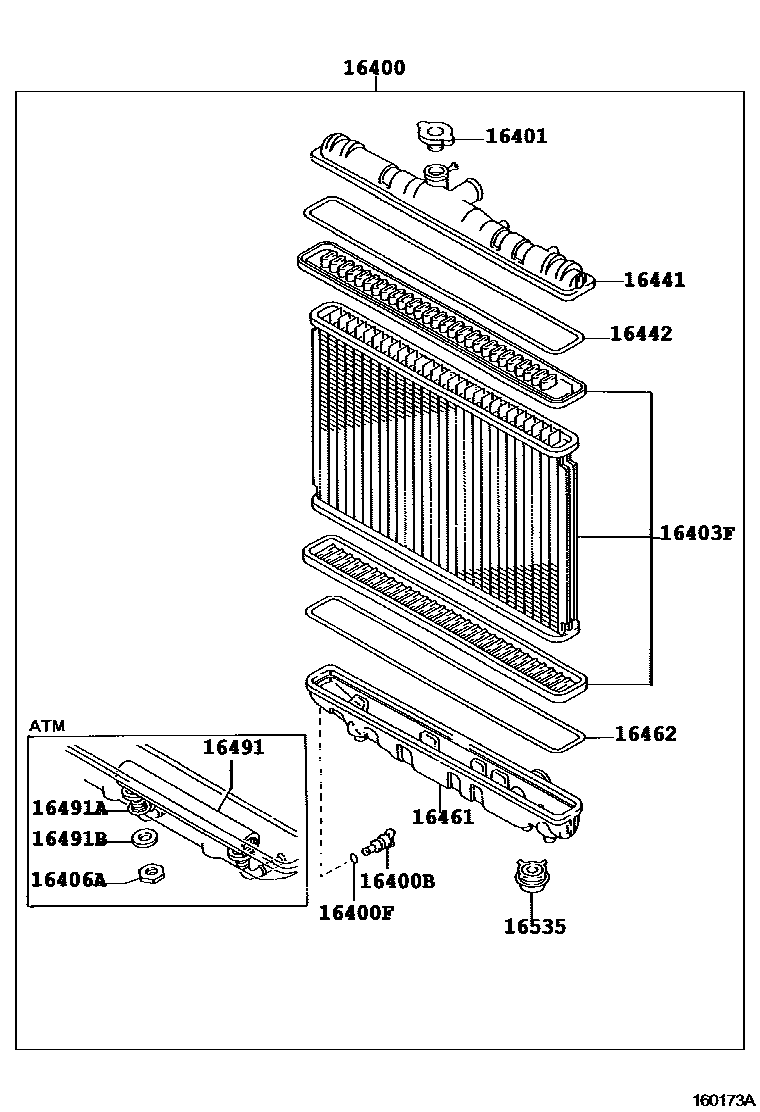

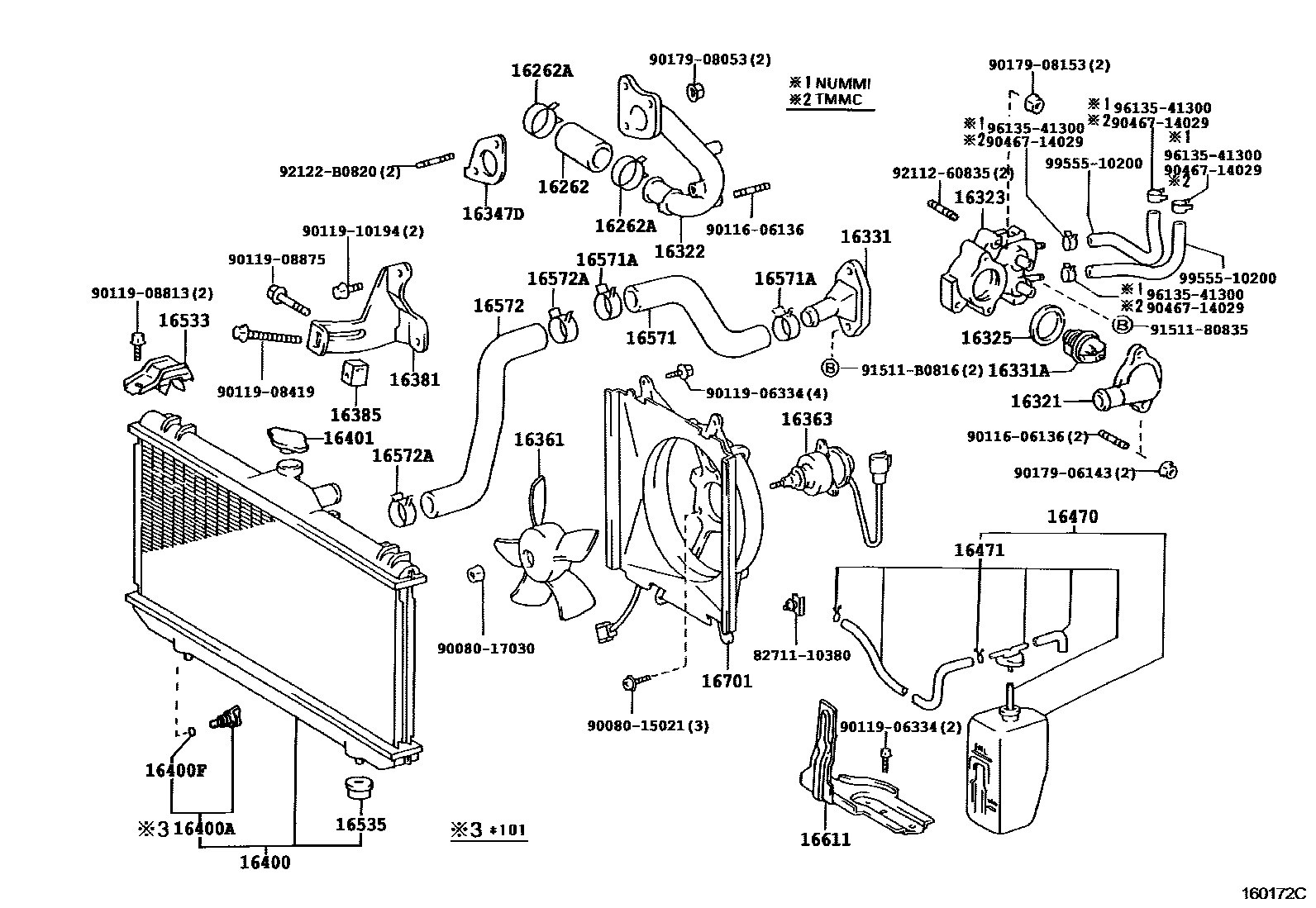

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16262 | water inlet hose | 16262-02050 · 16262-15040 |
| 16262A | Clamp (for water inlet hose) | 90467-37002 |
| 16321 | water inlet | 16321-15040 |
| 16322 | PIPE, WATER INLET | 16322-15050 · 16322-16060 |
| 16323 | HOUSING, WATER INLET | 16323-16420 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63010 · 16325-63011 |
| 16331 | Water outlet | 16331-15080 |
| 16331A | thermostat | 90916-03046 · 90916-03109 |
| 16347D | water bypass liner | 16347-15010 |
| 16361 | Fan | 16361-02050 |
| 16363 | cooling fan motor | 16363-02040 |
| 16381 | Fan belt adjustment lever | 16381-02050 · 16381-15080 |
| 16385 | Fan belt adjustment slider | 16385-15020 |
| 16400 | Radiator assembly | 16410-02100 · 16410-02110 · 16410-02130 · 16410-02140 · 16410-02150 · 16410-02151 |
| 16400A | Radiator drain switch sub-assembly | 90080-34011 |
| 16400B | Radiator drain switch screw plug | 90080-34002 |
| 16400F | Seal (for radiator drain switch) | 90069-08019 · 90080-30011 |
| 16401 | Radiator cover sub-assembly | 16401-16020 · 16401-72090 |
| 16403F | Radiator core sub-assembly | 16403-02020 · 16403-02040 · 16403-02050 |
| 16406A | Bracket (for transmission oil cooler) | 16406-02010 · 16406-62060 |
| 16441 | Radiator water tank | 16441-02020 · 16441-02040 |
| 16442 | O-ring (for radiator tank) | 16442-02020 · 16462-02030 |
| 16461 | Radiator lower tank | 16461-02040 · 16461-02050 · 16461-02060 |
| 16462 | O-ring (for radiator lower tank) | 16462-02020 · 16462-02030 |
| 16470 | Radiator reservoir assembly | 16470-02020 · 16470-02021 · 16470-02030 · 16470-02031 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-02020 · 16405-02021 · 16405-02030 · 16405-02031 |
| 16491 | Oil cooler (for ATM) | 16491-02010 · 16491-02030 · 16491-02031 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-02010 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-02010 · 16493-62060 |
| 16533 | Radiator upper bracket | 16533-02020 · 16533-15130 |
| 16535 | Radiator lower support | 16535-02020 · 16535-11030 · 16535-15050 · 16535-74010 |
| 16571 | Radiator water inlet hose | 16571-02030 · 16571-02040 · 16571-02050 · 16571-02060 · 16571-15160 · 16571-16180 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34003 |
| 16572 | Radiator outlet hose | 16572-02020 · 16572-02030 · 16572-02040 · 16572-02050 · 16572-15210 · 16572-16150 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-34003 |
| 16611 | Radiator reservoir bracket | 16611-15020 |
| 16701 | Fan cover sub-assembly | 16711-02050 · 16711-02051 |
