Toyota COROLLA Cylinder Block — Figure 1105

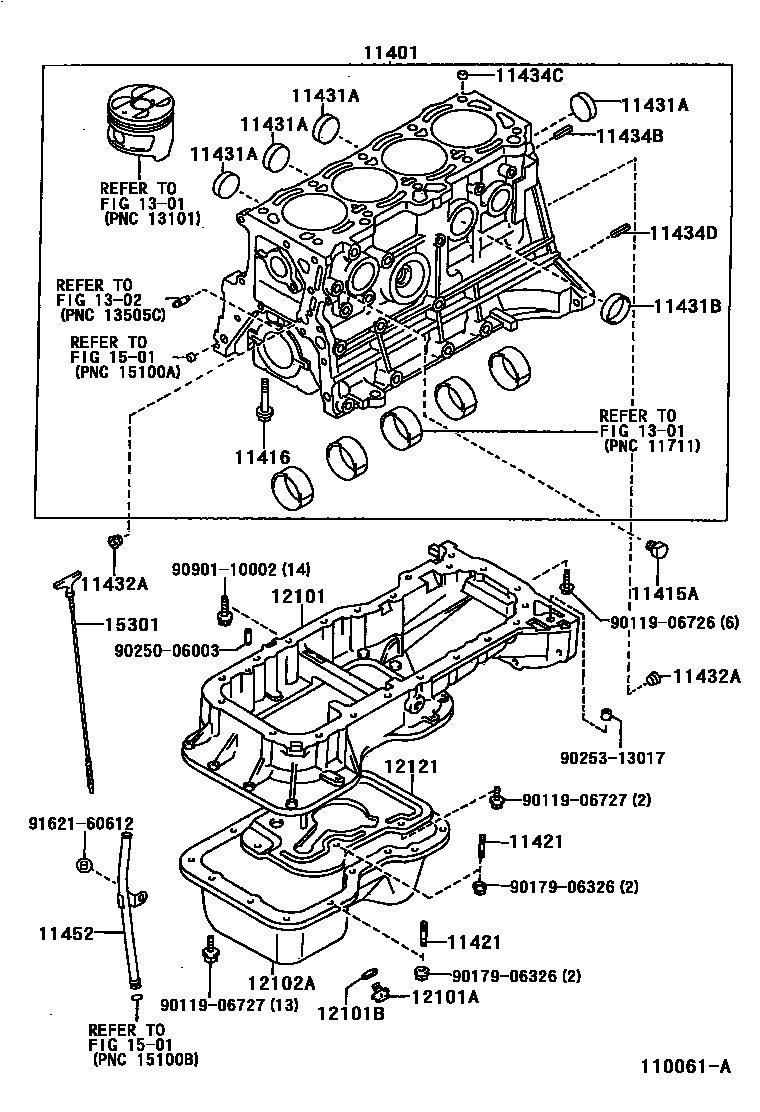

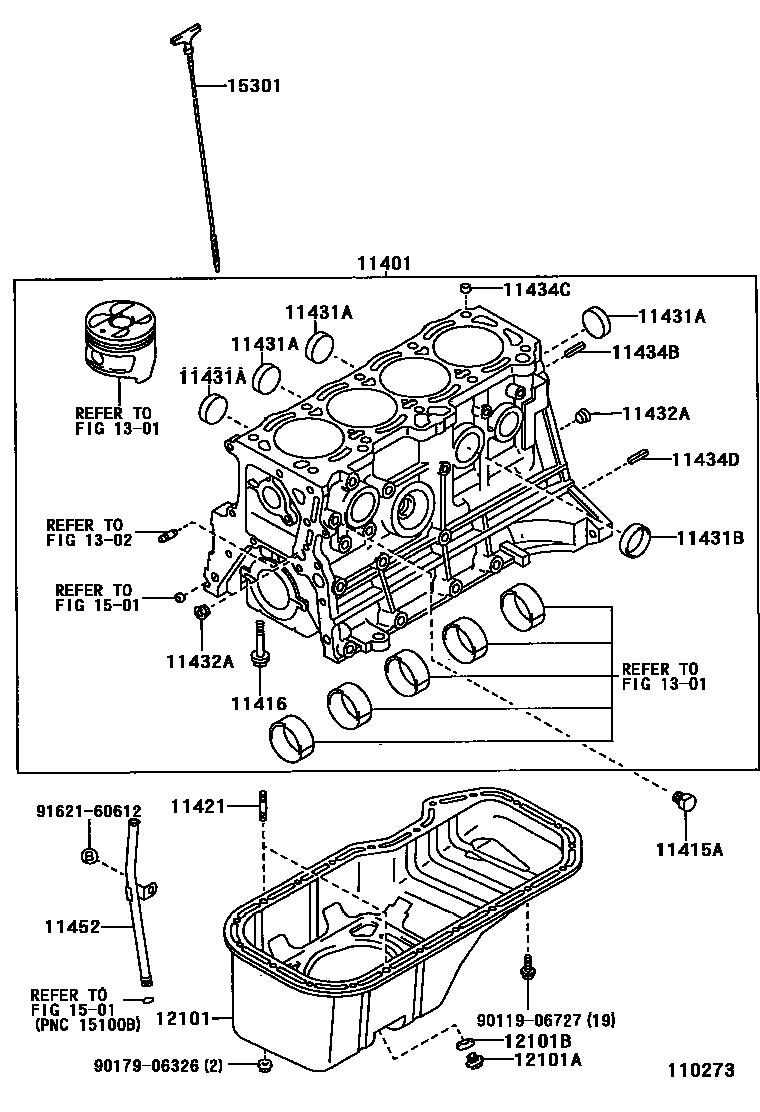

Toyota COROLLA EPC diagram 1105, Cylinder Block, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-19695 · 11401-19725 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90345-52003 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10007 |
| 11421 | Stud bolts (for oil pan) | 90116-06022 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-43500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-44000 |
| 11432A | No. 1 headed tapered thread plug | 90344-53006 · 90344-53008 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90253-13017 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 |
| 11452 | Engine oil level gauge guide | 11452-15030 |
| 12101 | Oil pan sub-assembly | 12101-02070 · 12101-16100 · 12111-16120 · 12111-16130 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12026 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12027 · 90430-12031 |
| 12102A | No. 2 oil pan sub-assembly | 12102-02030 · 12102-16010 |
| 12121 | No. 1 oil pan baffle | 12121-16040 |
| 15301 | Engine oil level scoring assembly | 15301-15050 · 15301-15051 · 15301-16090 · 15301-16091 |
