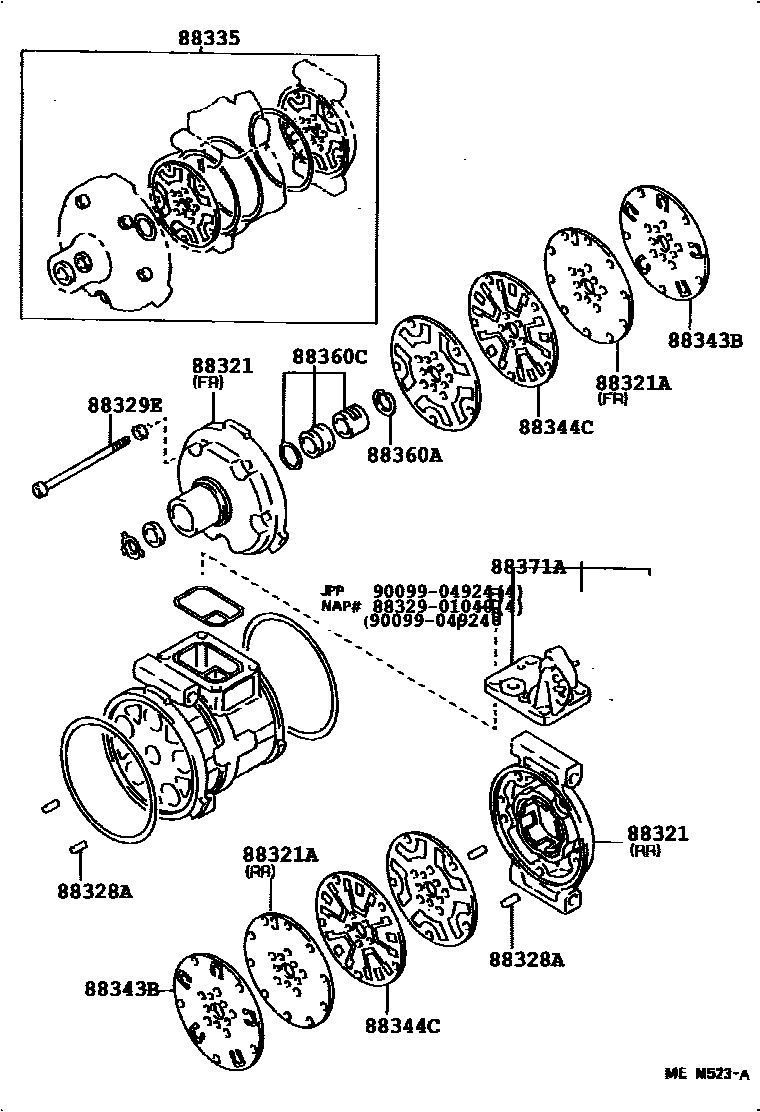

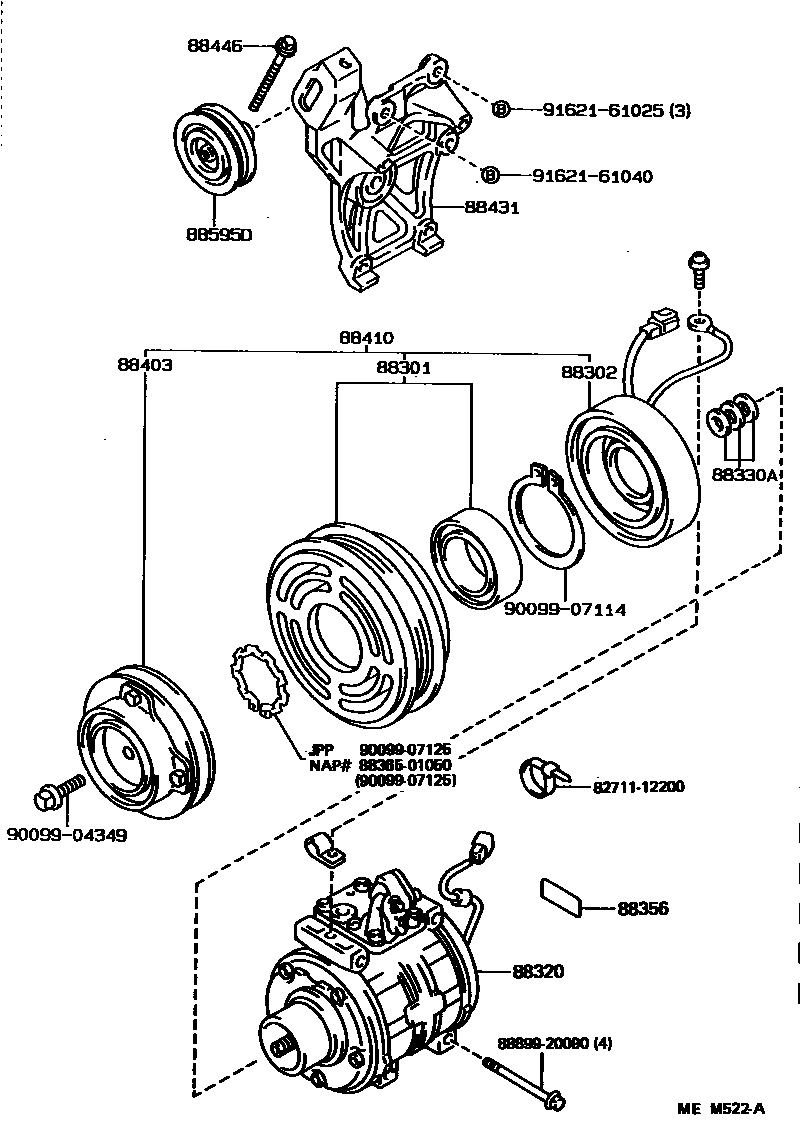

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-01020 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-01020 |
| 88320 | Cooler Compressor Assembly | 88320-01020 |
| 88321 | Cooler compressor cylinder head | 88321-01020 · 88322-01020 |
| 88321A | Valve sub-assembly | 88341-01020 · 88342-01020 |
| 88328A | compressor pin | 88328-01010 |
| 88329E | No. 1 compressor bolt | 88329-01030 |
| 88330A | Washer (for electromagnetic clutch) | 88335-01030 |
| 88335 | Overhaul gasket assembly | 88335-01020 |
| 88343B | suction valve reed | 88343-01020 |
| 88344C | Discharge valve reed | 88344-01020 |
| 88356 | Compressor warning label | 88356-02010 |
| 88360A | Compressor seal ring | 88365-01040 |
| 88360C | Shaft seal assembly | 88360-01020 |
| 88371A | suction valve | 88371-01020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-01020 |
| 88410 | Magnetic Clutch Assembly | 88410-01020 |
| 88431 | Compressor No. 1 mounting bracket | 88431-01020 |
| 88446 | Idler gear bolt | 88446-01020 |
| 88595D | Idler gear assembly | 88440-01020 |
