Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

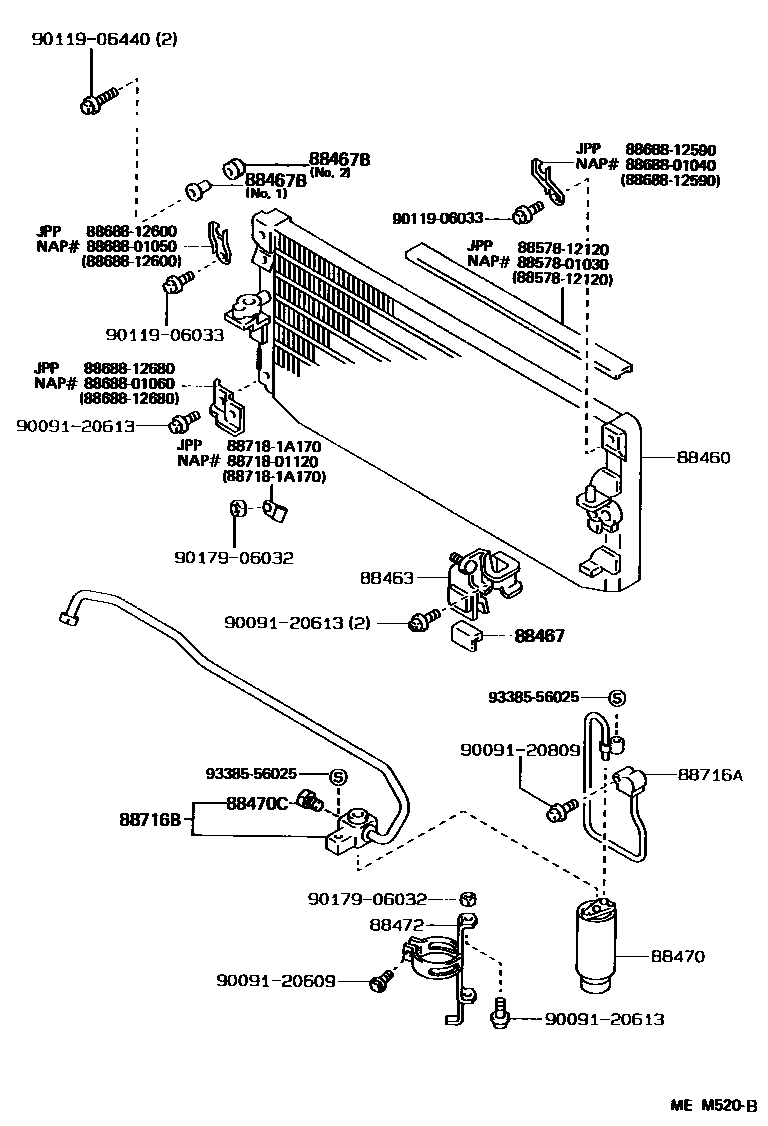

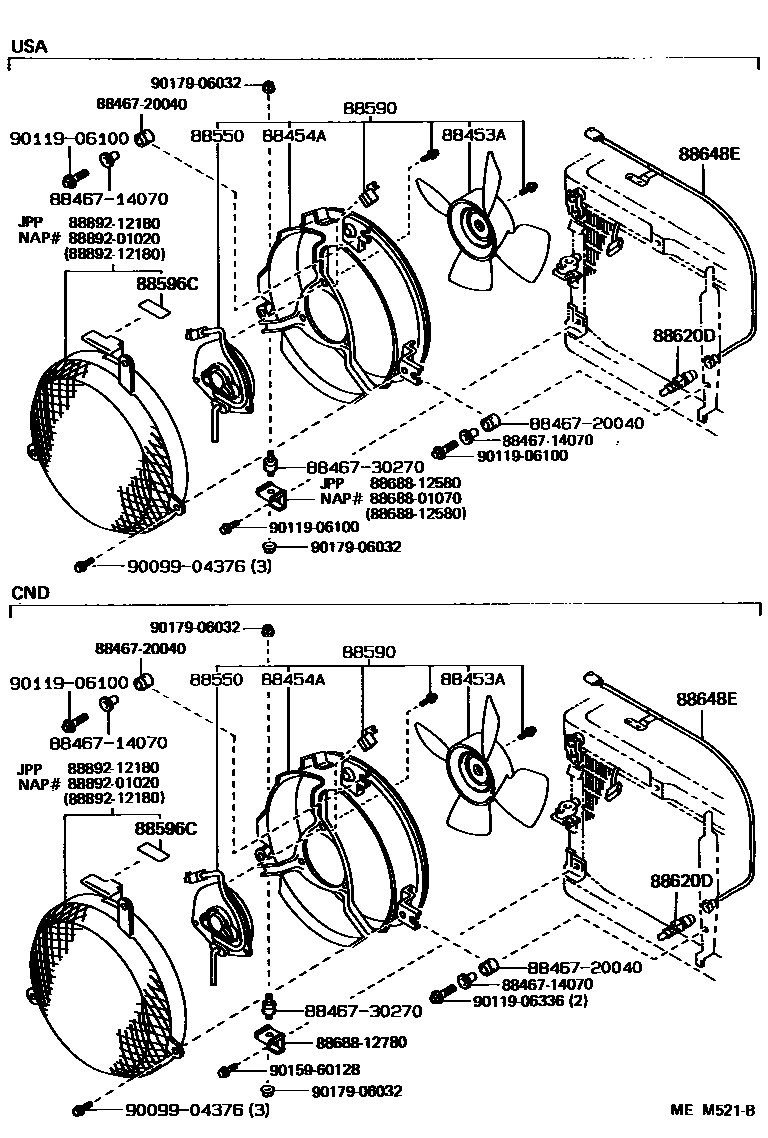

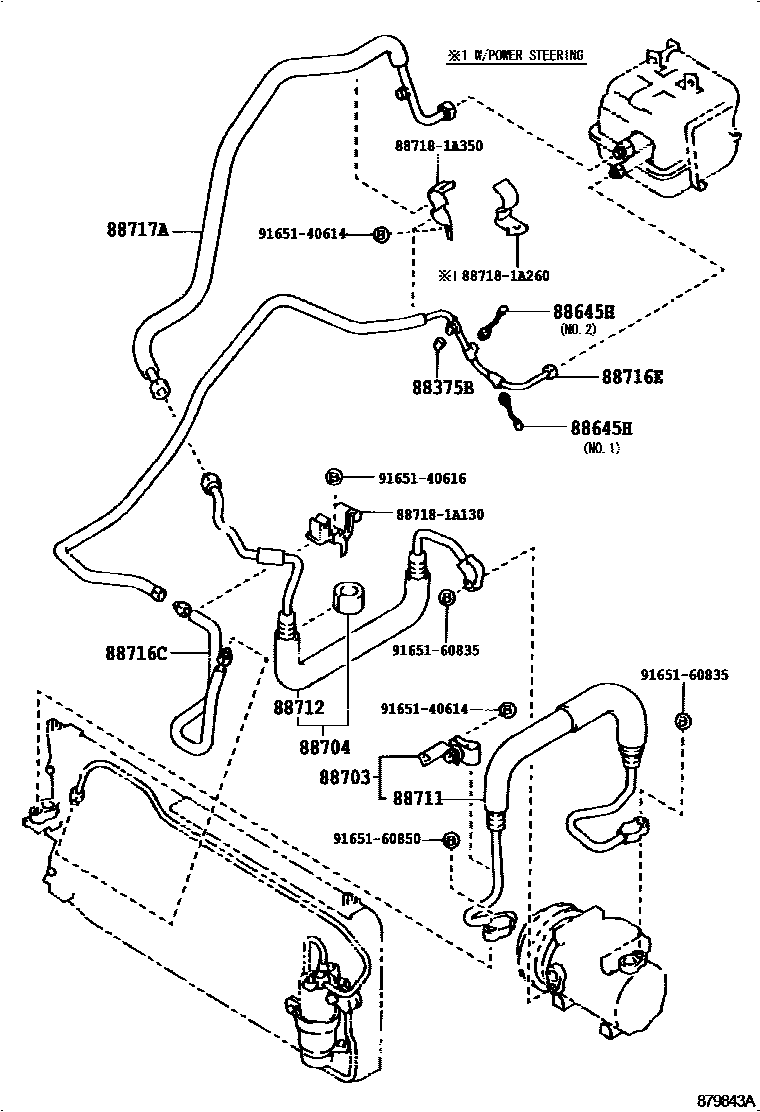

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88375B | No. 1 maintenance valve cover | 88375-01020 |
| 88453A | cooling fan | 88453-01020 |
| 88454A | fan cover | 88454-01020 |
| 88460 | Air conditioning condenser assembly | 88460-01030 |
| 88463 | No. 1 air conditioner condenser bracket | 88463-01010 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-02020 |
| 88467B | Air conditioning condenser fixed vibration isolation pad | 88467-01050 · 88467-01060 |
| 88470 | Cooler reservoir and dryer assembly | 88471-01010 |
| 88470C | fuse bolt | 88475-01010 |
| 88472 | No. 1 liquid storage tank bracket | 88473-01020 |
| 88550 | Blower motor assembly (for condenser) | 88550-01020 |
| 88590 | Blower assembly with hood | 88590-01030 |
| 88596C | No. 2 warning nameplate | 88723-01010 · 88723-01020 · 88723-01030 |
| 88620D | Thermostat assembly | 88620-01010 |
| 88645H | No. 1 pressure switch | 88645-01020 · 88645-01030 |
| 88648E | Cooler wiring harness | 88648-01020 |
| 88703 | Discharge hose sub-assembly | 88703-01010 |
| 88704 | Oil suction hose sub-assembly | 88704-01010 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-01020 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-01020 |
| 88716A | Cooler refrigerant liquid pipe A | 88726-01020 |
| 88716B | Cooler refrigerant liquid pipe B | 88726-01030 |
| 88716C | Cooler refrigerant liquid pipe C | 88726-01050 |
| 88716E | Cooler refrigerant liquid pipe E | 88726-01040 |
| 88717A | Cooler refrigerant suction pipe A | 88717-01020 |
