Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717

Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 2 images and 5 PNC and OE references.

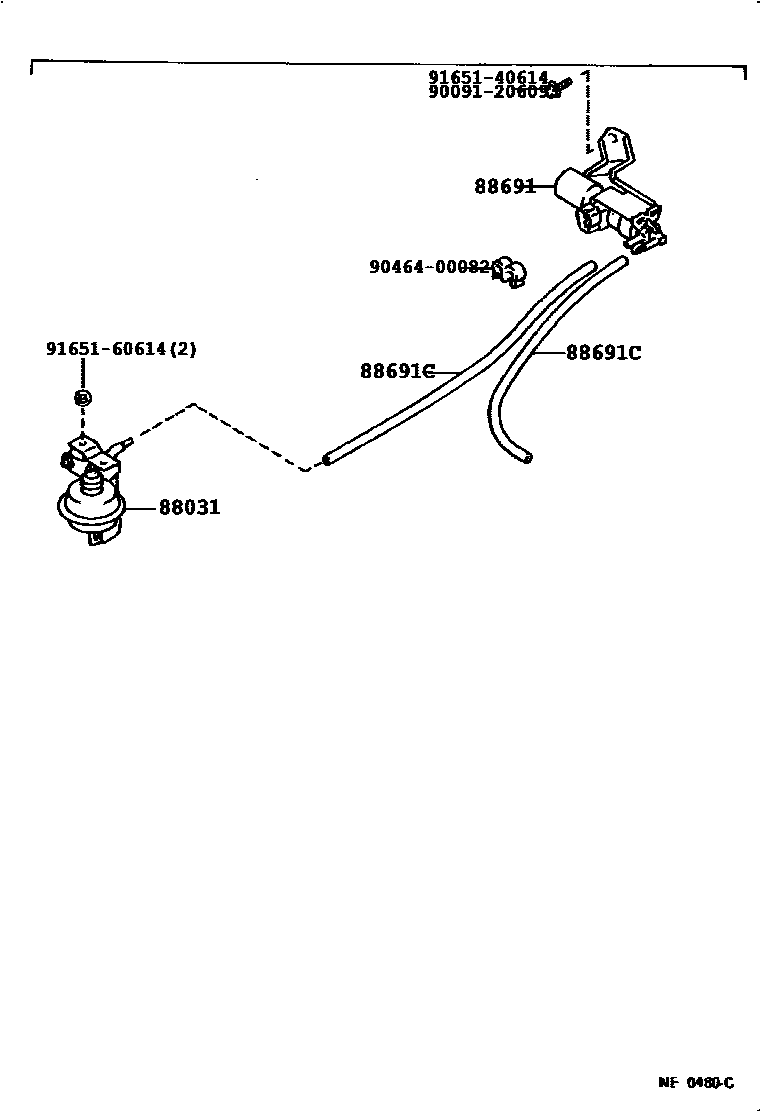

Toyota COROLLA 暖风和空调系统 - 真空管 EPC diagram — 87B783
暖风和空调系统 - 真空管 — 87B783 (198809 – 198909)

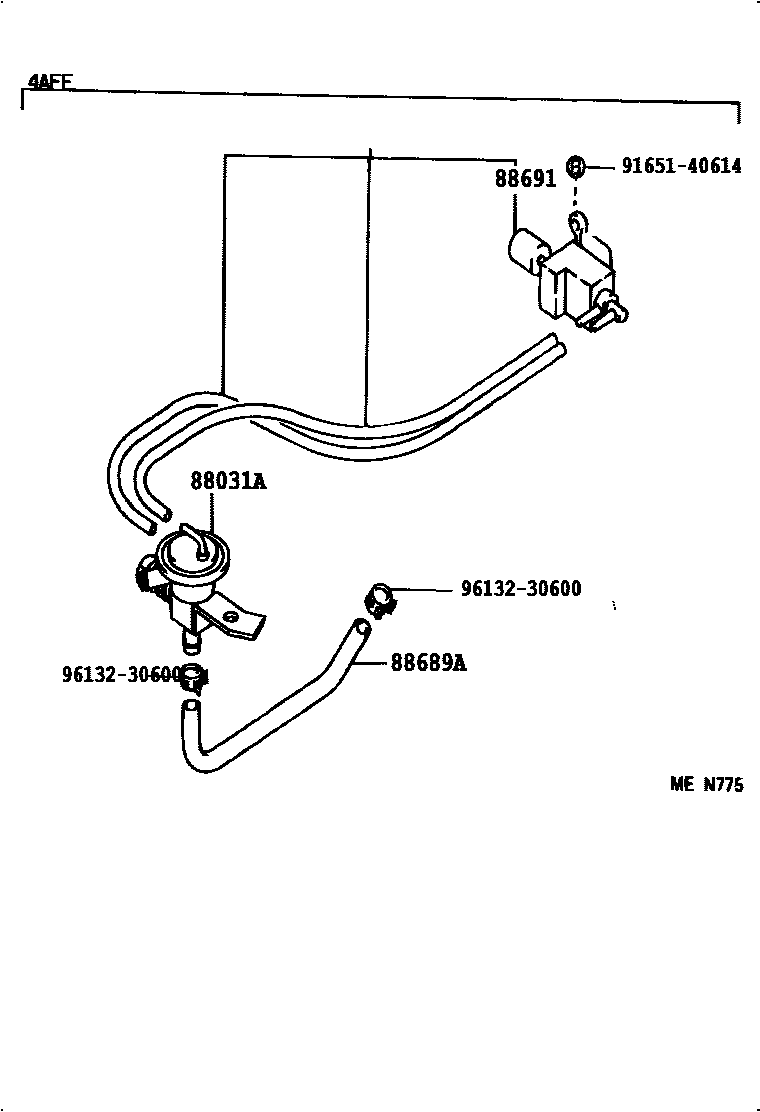

Toyota COROLLA 暖风和空调系统 - 真空管 EPC diagram — 87B784
暖风和空调系统 - 真空管 — 87B784 (198808 – 999999)

PNC and OE references

PNCPart nameOE numbers
88031Idle speed lift actuator assembly88031-12140
88031AIdle speed lift actuator diaphragm sub-assembly88606-01010
88689ACooler Vacuum Hose No. 188689-01010
88691Solenoid valve (for idle speed lifting device)88690-01020 · 88690-02020
88691CVacuum hose No. 1 (for idle lift)90999-92002 · 90999-92003
