Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

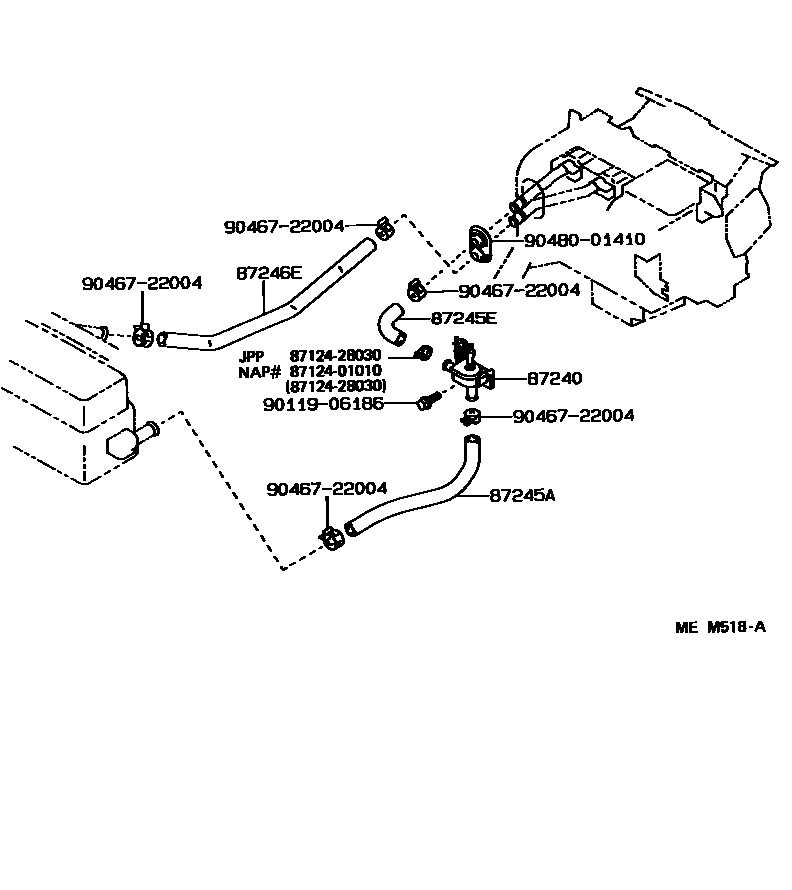

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87240 | Heater water valve assembly | 87240-01020 |
| 87245A | Heater water inlet hose A | 87245-01070 |
| 87245E | Heater water inlet hose E | 87245-01040 |
| 87246E | Heater outlet hose E | 87245-01080 · 87245-01081 |
