Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714

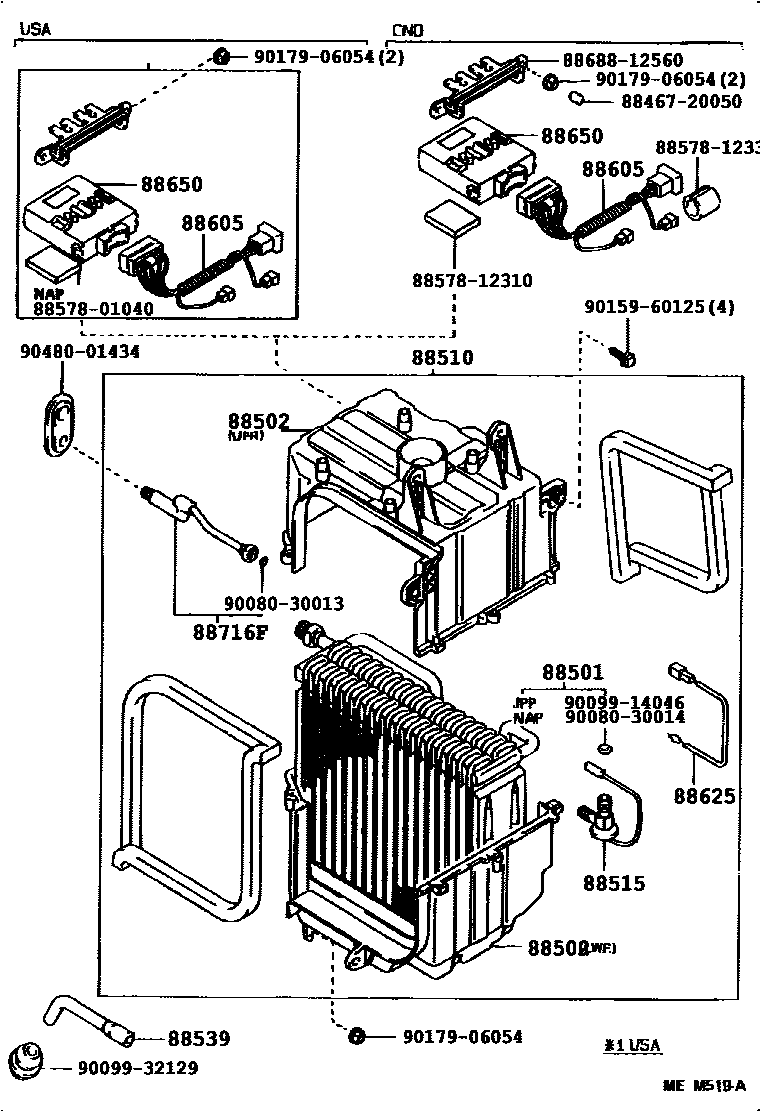

Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-01020 |
| 88502 | Cooling device shell sub-assembly | 88502-01030 · 88502-01040 |
| 88510 | Cooler device assembly | 88510-01030 |
| 88515 | Cooler expansion valve | 88515-03010 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-01020 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-02030 · 88605-02040 |
| 88625 | Cooler No. 1 Thermistor | 88625-01020 · 88625-03010 |
| 88650 | Cooler stabilized amplifier assembly | 88650-02060 · 88650-02100 |
| 88716F | Cooler refrigerant liquid pipe F | 88726-01010 |
