Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-01010 |
| 87105 | Heater blower fan sub-assembly | 87105-03010 |

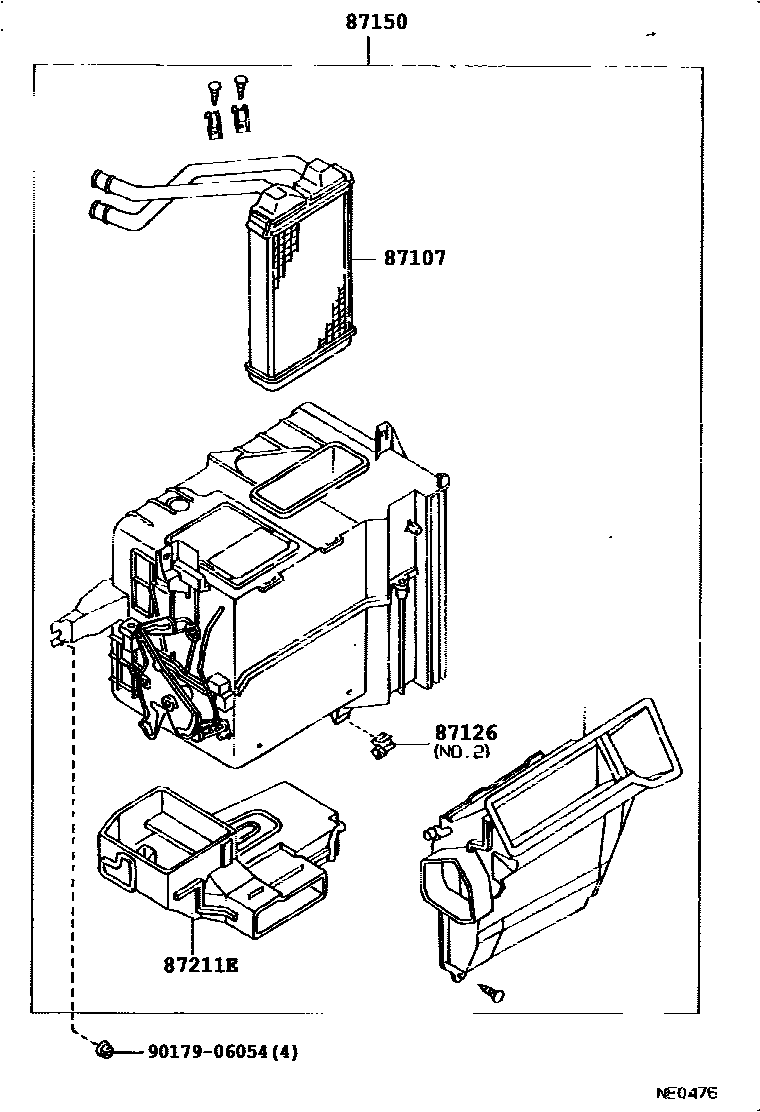

| 87107 | Heater radiator device sub-assembly | 87107-01020 · 87107-02020 |
| 87126 | heater control clip | 87126-01020 |

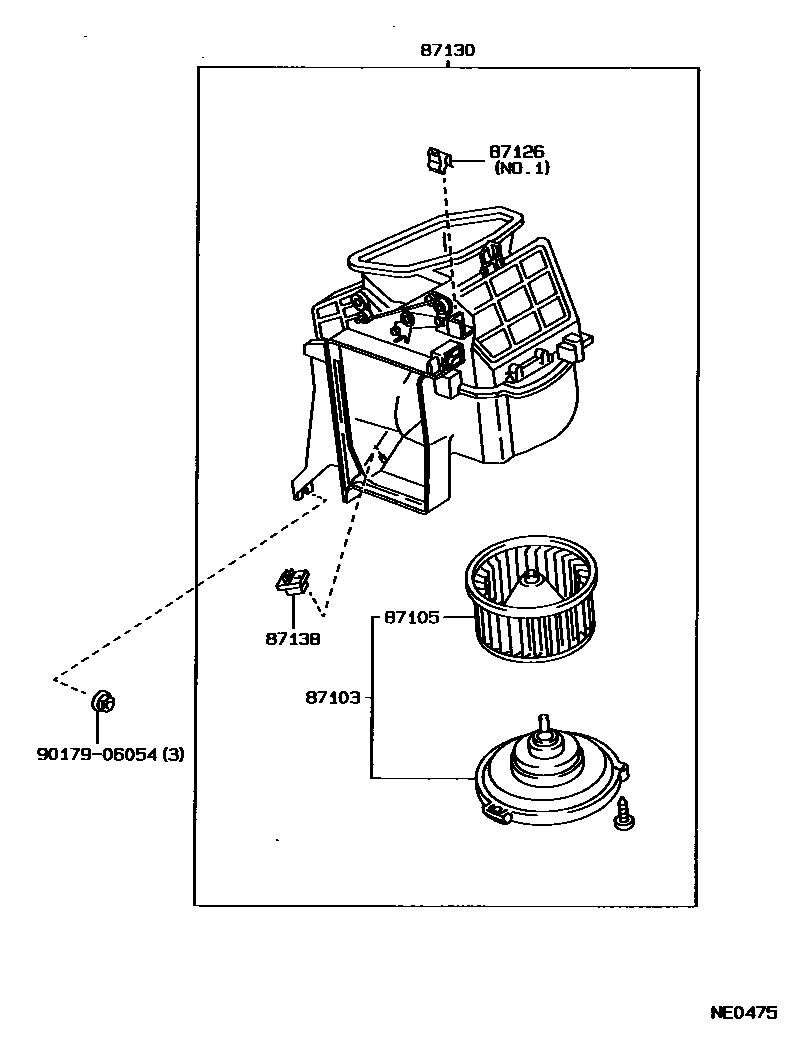

| 87130 | Front heater blower assembly | 87130-01020 · 87130-01021 |
| 87138 | Heater Blower Resistor | 87138-01020 |
| 87150 | Heater radiator assembly | 87150-01020 · 87150-02020 |
| 87211E | air duct | 87211-01020 · 87211-02010 |
