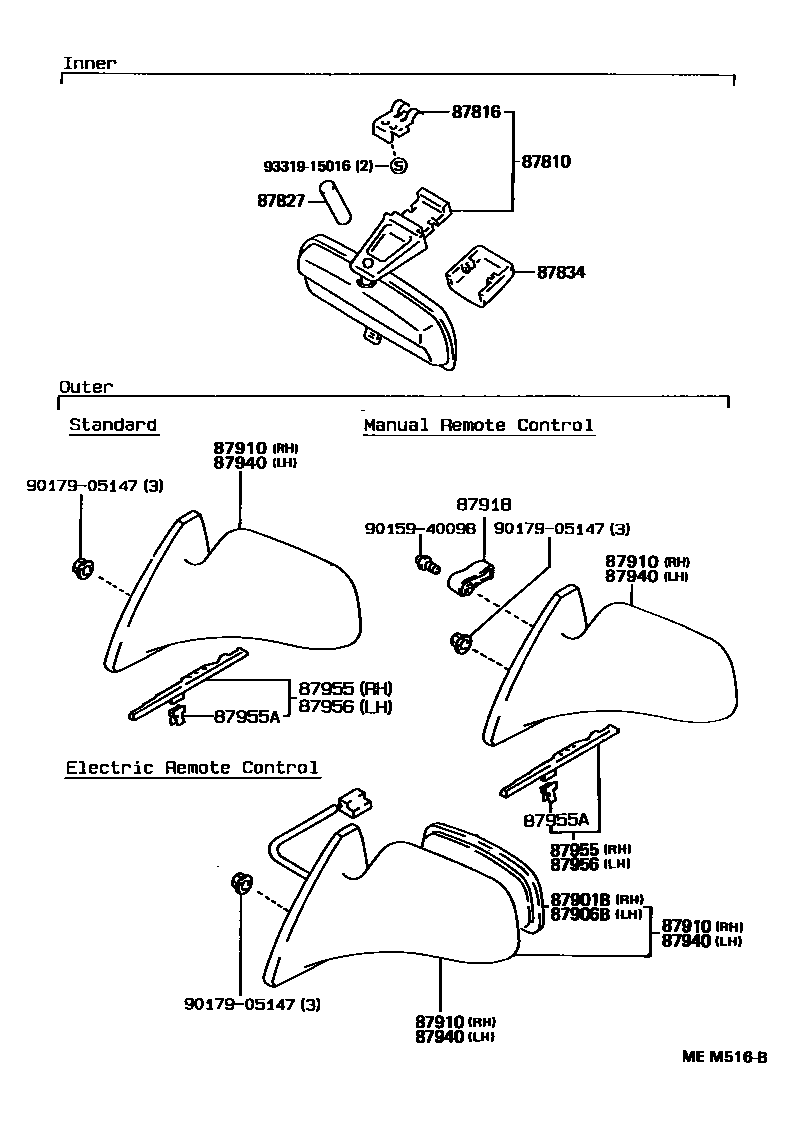

Toyota COROLLA 后视镜 — Figure 8701
Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-01020 · 74372-30030 |
| 87827 | Interior rearview mirror shock absorber | 87828-01020 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-1A250 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-1A330 |
| 87910 | Right exterior rearview mirror assembly | 87910-01020 · 87910-01021 · 87910-02040 · 87910-1A630 · 87910-1A640 · 87910-1A650 |
| 87918 | Exterior rearview mirror control handle | 87918-01020 · 87918-16010 |
| 87940 | Left exterior rearview mirror assembly | 87940-01020 · 87940-01021 · 87940-02050 · 87940-1A760 · 87940-1A770 · 87940-1A780 |
| 87955 | Right exterior mirror base lower pad | 87955-12040 |
| 87955A | Door glass seal strip clip | 68211-12160 |
| 87956 | Left side exterior mirror base lower pad | 87956-12040 |
