Toyota COROLLA 扬声器 — Figure 8602

Toyota COROLLA EPC diagram 8602, 扬声器, with 2 images and 3 PNC and OE references.

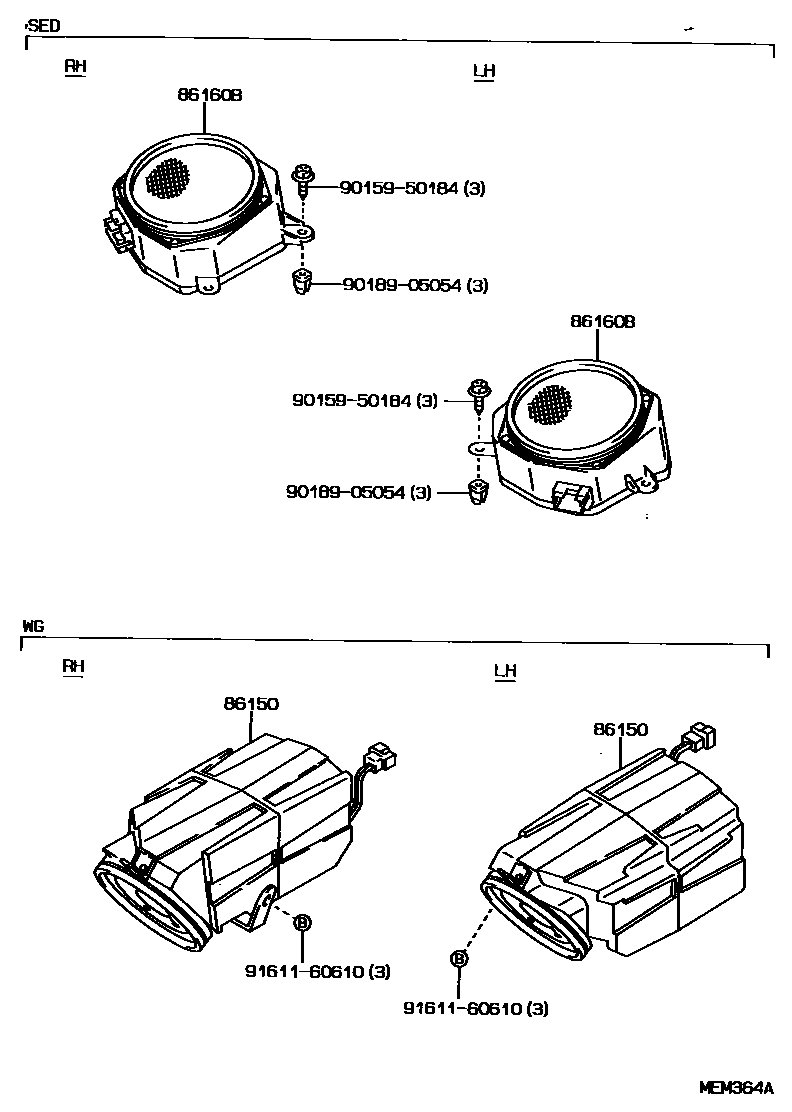

Toyota COROLLA 扬声器 EPC diagram — MEM364A
扬声器 — MEM364A (198708 – 999999)

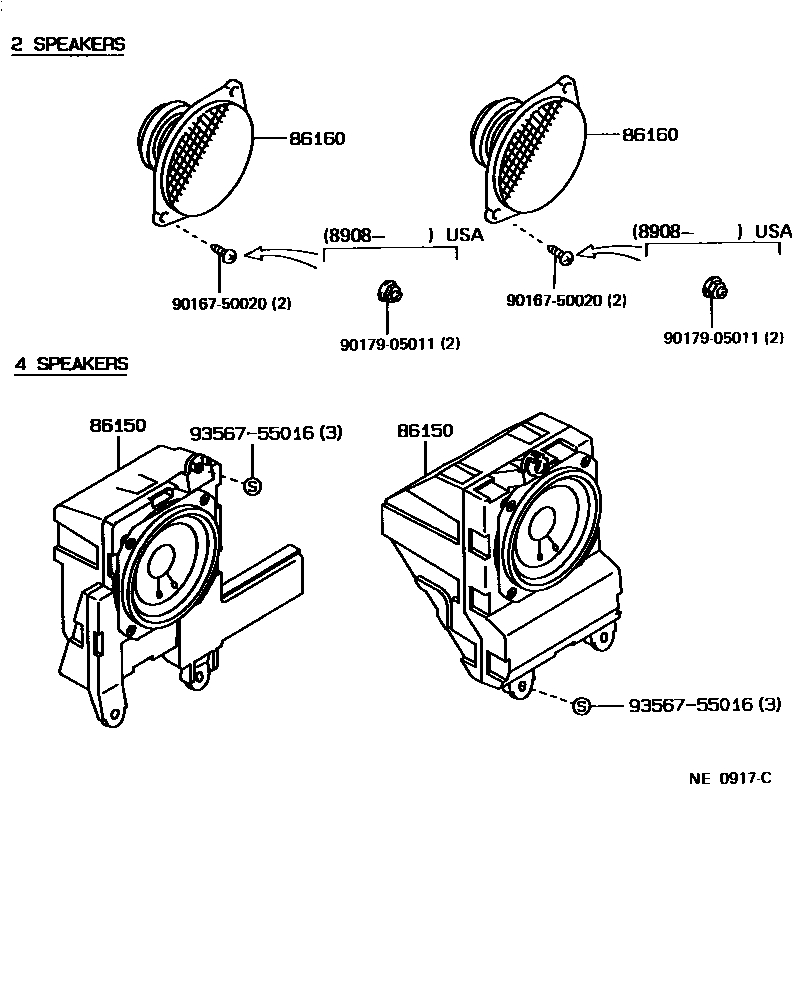

Toyota COROLLA 扬声器 EPC diagram — NE0917C
扬声器 — NE0917C (198708 – 999999)

PNC and OE references

PNCPart nameOE numbers
86150No. 1 loudspeaker assembly with box86150-02010 · 86150-02020 · 86150-02030 · 86150-02040
86160No. 1 front speaker assembly86160-02040
86160BRear speaker assembly86160-02050 · 86160-02060
