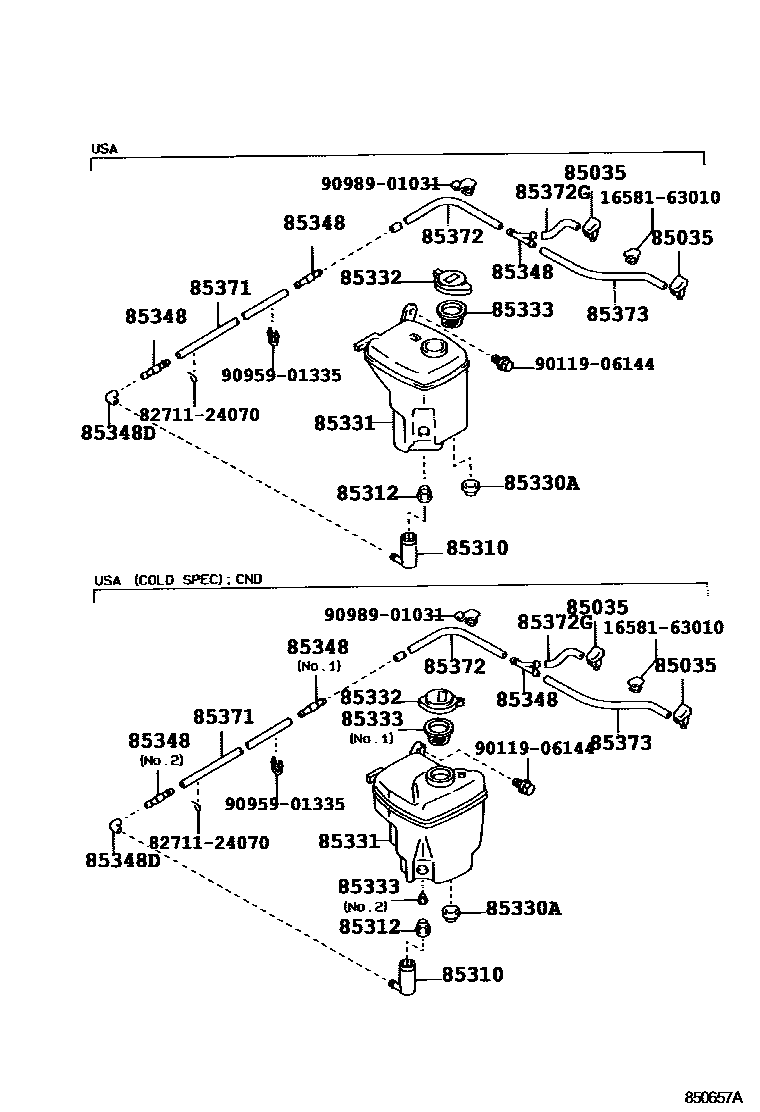

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85035-02010 · 85035-02011 |
| 85310 | Windshield washer motor and pump assembly | 85310-03010 |
| 85312 | Windshield washer tank seal | 85312-01010 |
| 85330A | Windshield washer fluid tank bushing | 85356-01010 |
| 85331 | Windshield washer fluid tank sub-assembly | 85331-01020 |
| 85332 | Windshield washer fluid tank cap | 85332-01020 |
| 85333 | Windshield washer fluid tank filter | 85333-03010 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 · 85349-14010 · 85349-20010 · 85375-01010 · 85377-01010 · 85378-01010 |
| 85348D | No. 1 windshield washer elbow joint | 85355-32110 · 85376-01010 |
| 85371 | Windshield washer hose (from motor to connector) | 90080-44025 · 90099-33075 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90080-44012 · 90099-33196 |
| 85372G | Rubber tube | 90080-44023 · 90099-33080 · 90099-33087 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90080-44015 · 90099-33080 |
