Toyota COROLLA 车内灯 — Figure 8121

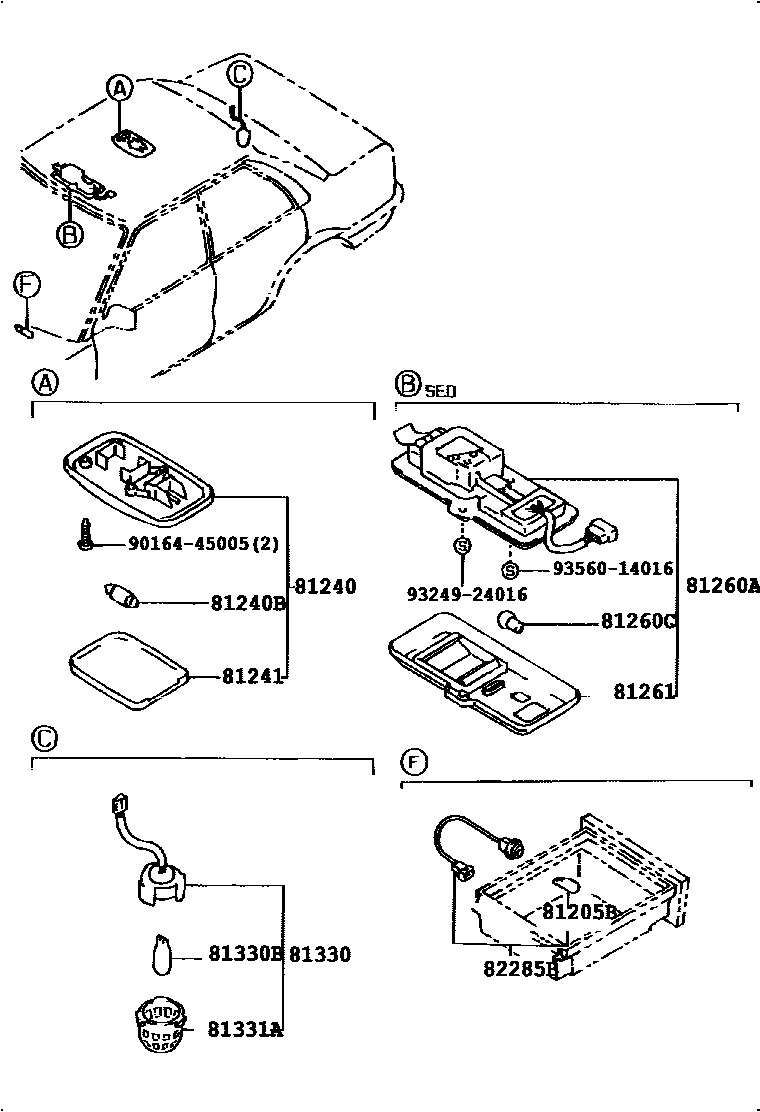

Toyota COROLLA EPC diagram 8121, 车内灯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81205B | ashtray light bulb | 90981-11014 |
| 81240B | Interior light bulb No. 1 | 90080-81013 |
| 81241 | Interior light cover No. 1 | 81241-01020 · 81241-02010 |
| 81260C | Light bulb (for reading lamp) | 90981-12014 |
| 81330 | No. 1 trunk light assembly | 81330-01020 · 81330-03010 |
| 81330B | trunk light bulb | 90081-81006 · 90981-11020 |
| 81331A | Trunk light cover | 81331-01020 · 81331-03010 |
| 82285B | lighting harness | 82285-12010 |
