Toyota COROLLA 后侧标示灯 — Figure 8114

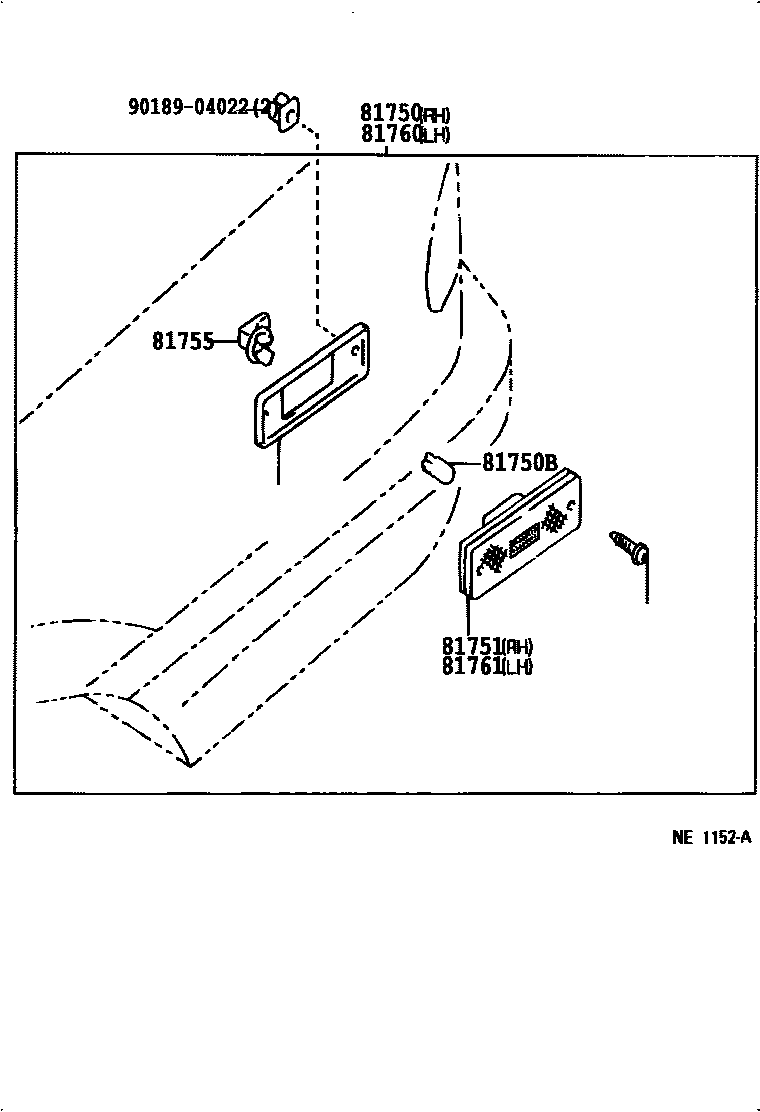

Toyota COROLLA EPC diagram 8114, 后侧标示灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81750 | Right rear width indicator light assembly | 81750-02020 |
| 81750B | Rear width light bulb | 90081-81006 |
| 81751 | Right rear width indicator lamp cover | 81751-02020 |
| 81755 | Rear width light lamp holder and wiring harness sub-assembly | 81755-03010 |
| 81760 | Left rear width indicator light assembly | 81760-02020 |
| 81761 | Left rear width indicator lamp cover | 81761-02020 |
