Toyota COROLLA accelerator pedal connecting rod — Figure 7801

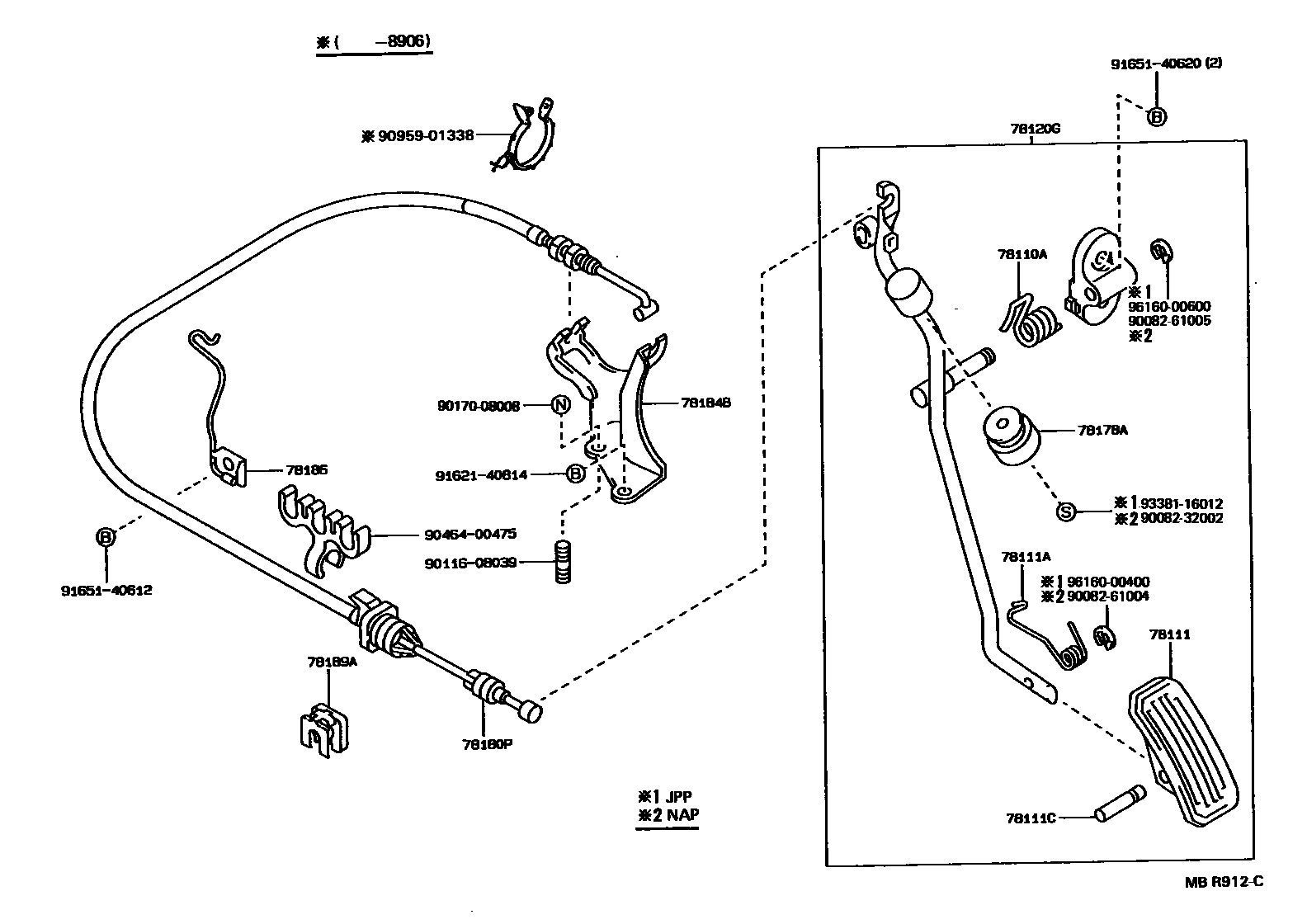

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110A | Spring (for accelerator pedal lever) | 90080-50029 · 90508-18025 · 90508-26036 |
| 78111 | accelerator pedal | 78111-01020 · 78111-32010 |
| 78111A | Spring (for gas pedal) | 90080-50027 · 90080-50028 · 90508-20056 |
| 78111C | pin (for gas pedal) | 90080-24008 · 90249-05001 |
| 78120G | Accelerator pedal lever assembly | 78120-01030 · 78120-01040 · 78120-12090 · 78120-12100 |
| 78178A | Accelerator pedal lever dynamic damper | 78178-01030 · 78178-12030 |
| 78180P | Accelerator pedal control cable assembly | 78180-01030 · 78180-1A010 · 78180-1A350 |
| 78184B | Throttle pedal control cable bracket | 78184-12230 · 78184-12250 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12230 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-12030 |
