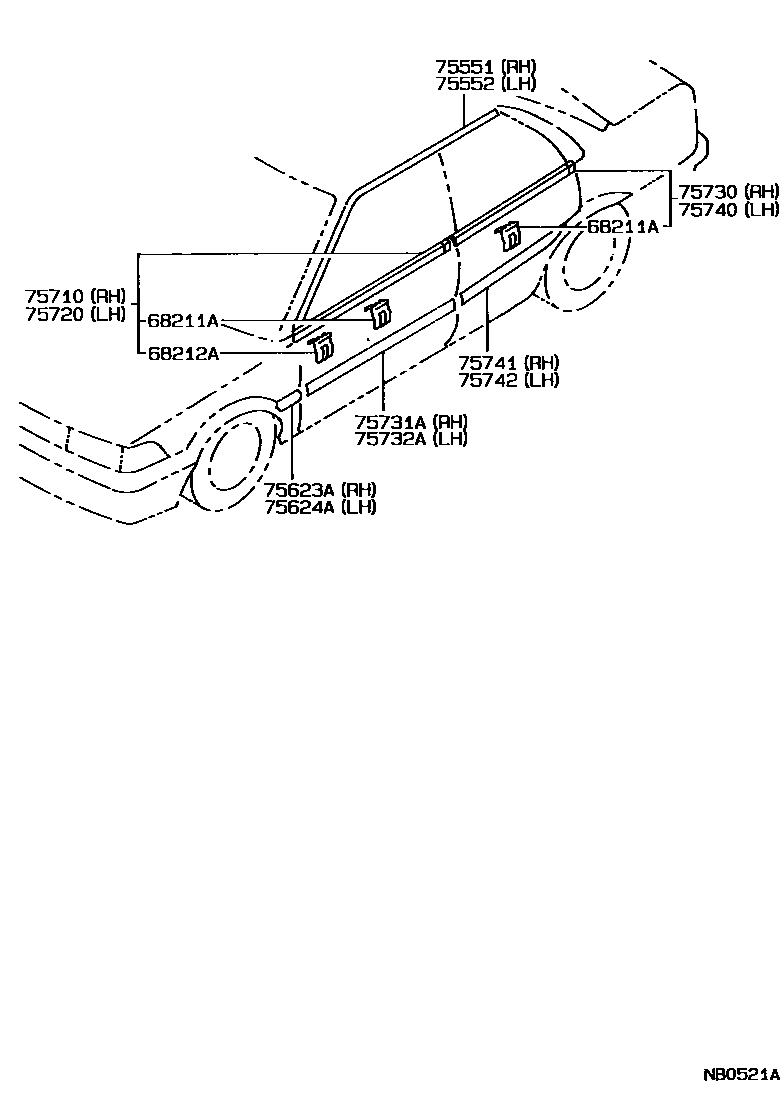

Toyota COROLLA 侧防护条 — Figure 7503
Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68211A | Door belt line protection strip clip | 68211-02040 · 68211-02050 |
| 68212A | Car door glass outer seal strip clip | 68212-02020 |
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-02020 · 75551-02030 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-02020 · 75552-02030 |
| 75623A | Right front fender outer rear protective strip | 75623-02030 · 75623-02040 |
| 75624A | Left front fender outer rear protective strip | 75624-02030 · 75624-02040 |
| 75710 | Right front door waistline protection strip assembly | 75710-02020 · 75710-02030 |
| 75720 | Left front door waistline protection strip assembly | 75720-02020 · 75720-02030 |
| 75730 | Right rear door waistline protection strip assembly | 75730-02010 · 75730-02020 |
| 75731A | Right front door outer protective strip | 75731-02030 · 75731-02040 |
| 75732A | Left front door outer protective strip | 75732-02030 · 75732-02040 |
| 75740 | Left rear door waistline protection strip assembly | 75740-02010 · 75740-02020 |
| 75741 | Right rear door outer protective strip | 75741-02010 · 75741-02020 |
| 75742 | Left rear door outer protective strip | 75742-02010 · 75742-02020 |
