Toyota COROLLA 前防护条 — Figure 7502

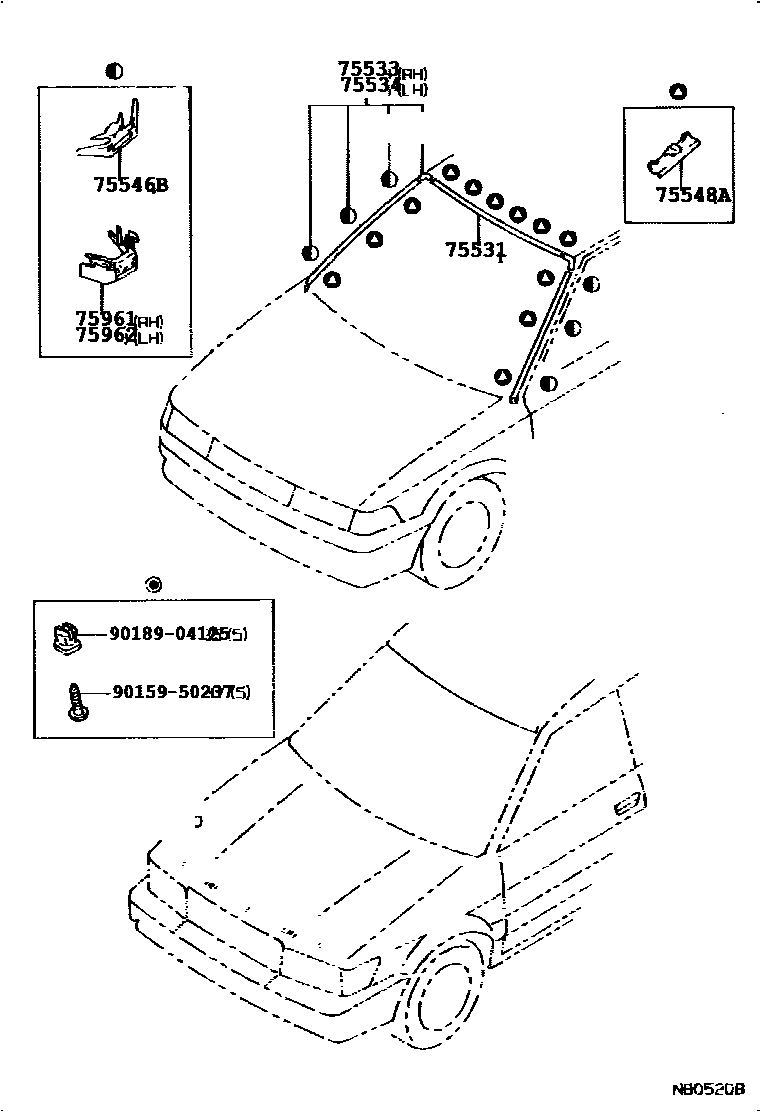

Toyota COROLLA EPC diagram 7502, 前防护条, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75531-02020 · 75531-02030 |
| 75533 | Windshield right outer protective strip | 75533-02020 · 75533-02030 |
| 75534 | Windshield left outer protective strip | 75534-02020 · 75534-02030 |
| 75546B | No. 2 windshield outer protective strip clip | 75546-02010 |
| 75548A | No. 1 windshield outer protective strip fasteners | 75548-16030 |
| 75961 | No. 4 windshield outer protective strip clip | 75961-02010 |
| 75962 | No. 5 windshield outer protective strip clip | 75962-02010 |
