Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 6 PNC and OE references.

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — 717062
安全带和儿童保护座椅 — 717062 (198809 – 999999)

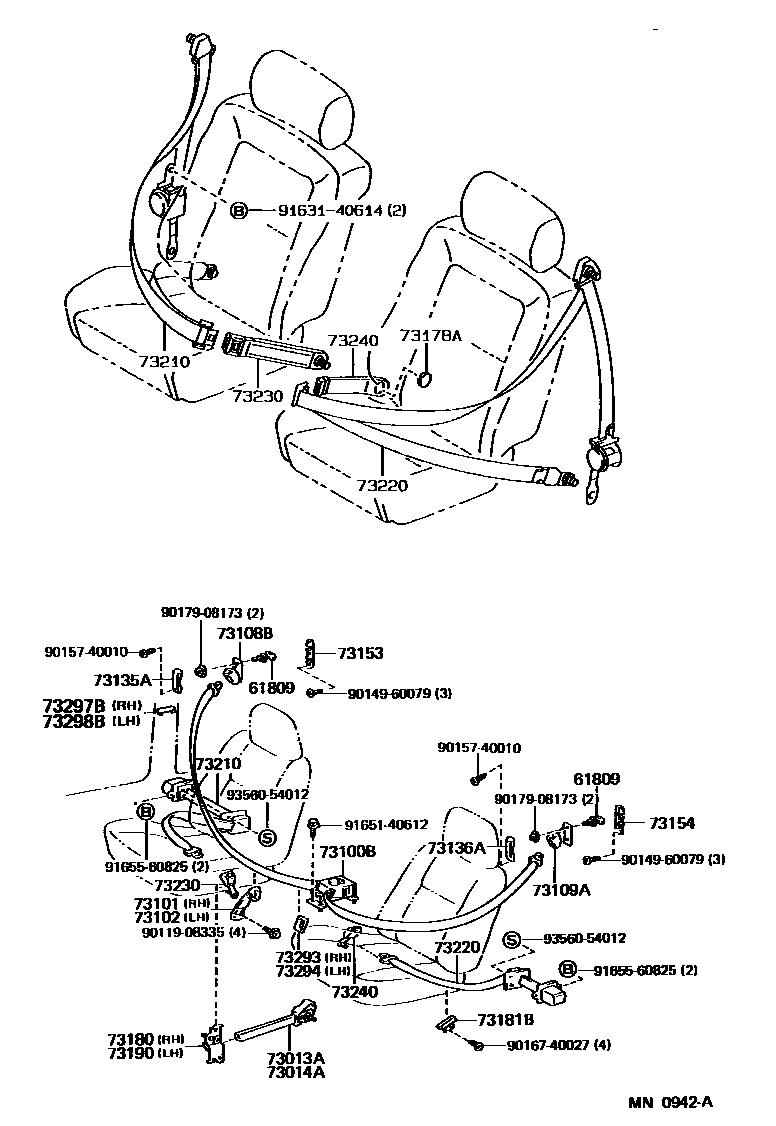

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — MN0942A
安全带和儿童保护座椅 — MN0942A (198708 – 999999)

PNC and OE references

PNCPart nameOE numbers
61809Shoulder belt anchor pin sub-assembly61809-12010 · 61809-12030 · 61809-12040
73153Front right shoulder safety belt anchor U-shaped clip73153-12010 · 73153-12011
73154Front left shoulder safety belt anchor U-shaped clip73154-12010 · 73154-12011
73180Right seat belt inner anchor bracket assembly73011-12050
73190Left side seat belt inner anchor bracket assembly73012-12050
73709Tie anchor bracket sub-assembly73709-12010
