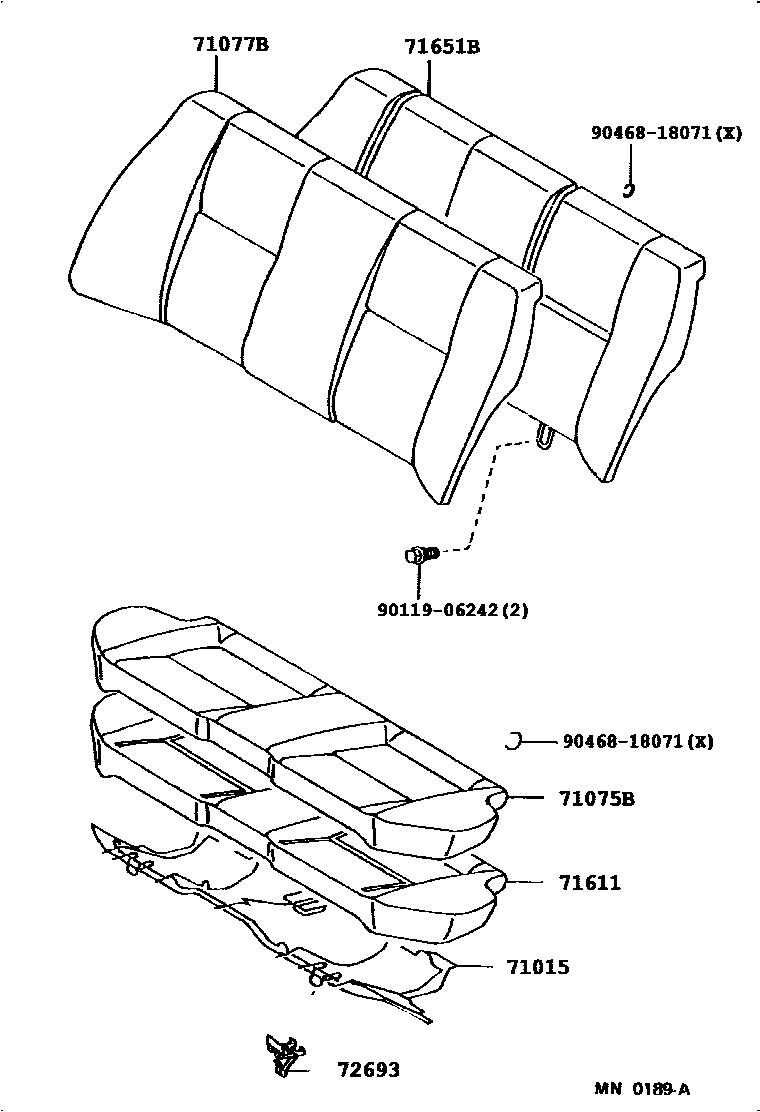

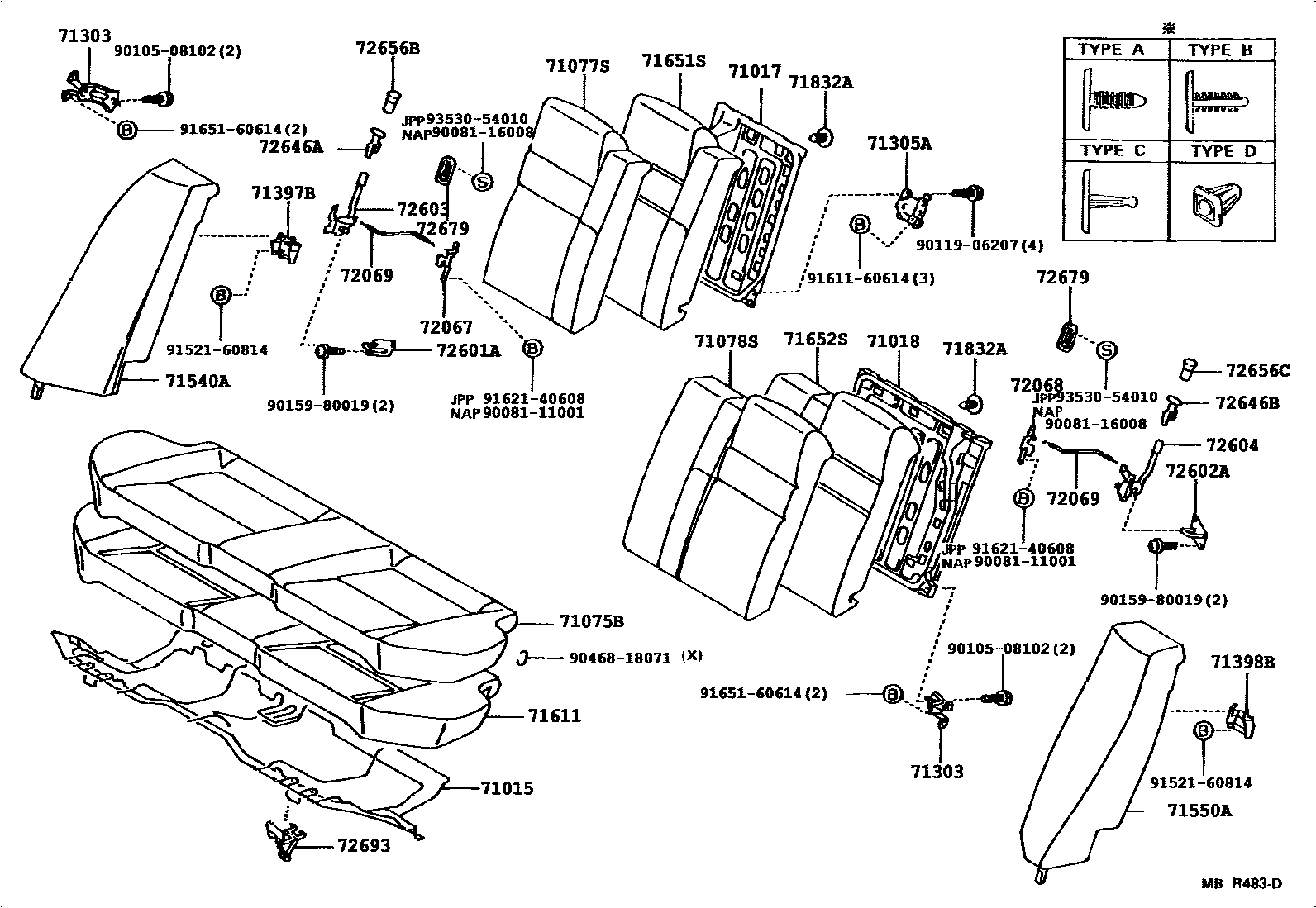

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-01040 |
| 71017 | Right rear seat back frame sub-assembly | 71017-02010 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02010 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12060 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12060 |
| 71397B | Rear right seat backrest fixer | 71397-02010 |
| 71398B | Rear left seat back retainer | 71398-02010 |
| 71611 | Rear seat cushion cushion | 71611-01030 · 71611-02010 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-01010 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02030 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02020 |
| 71832A | Rear seat backrest felt pad or backrest pad clip | 90467-10023 |
| 72067 | Rear right seat back lock control lever sub-assembly | 72067-20010 |
| 72068 | Rear left seat back lock control lever sub-assembly | 72068-20010 |
| 72069 | Rear seat back lock control cable sub-assembly | 72069-12010 |
| 72601A | Right rear seat back lock sub-assembly | 72601-12090 |
| 72602A | Rear left seat back lock sub-assembly | 72602-12040 |
| 72603 | Rear right seat back lock sub-assembly | 72603-12010 |
| 72604 | Rear left seat back lock sub-assembly | 72604-12030 |
| 72693 | Rear seat cushion hook | 72693-01020 |
