Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

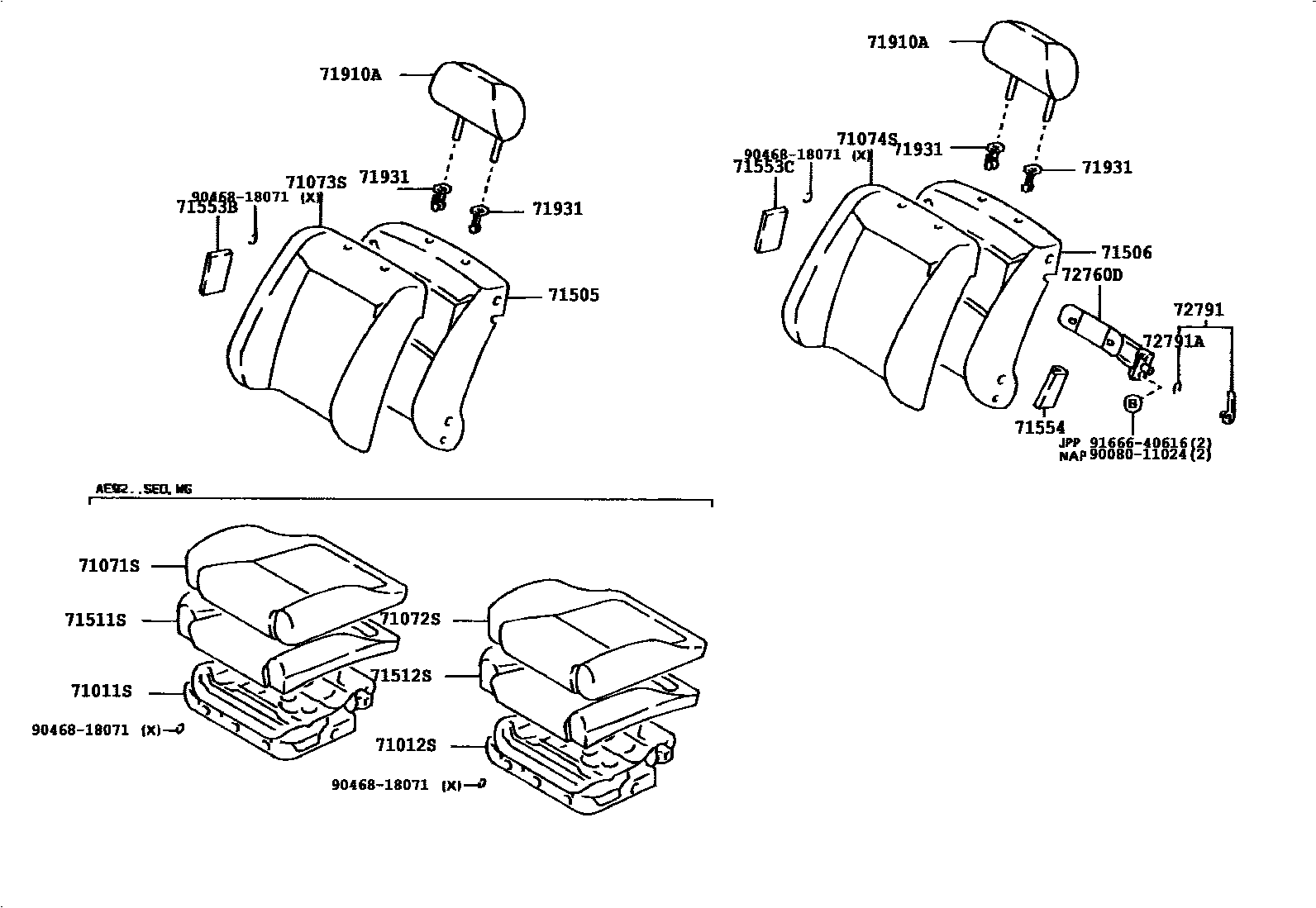

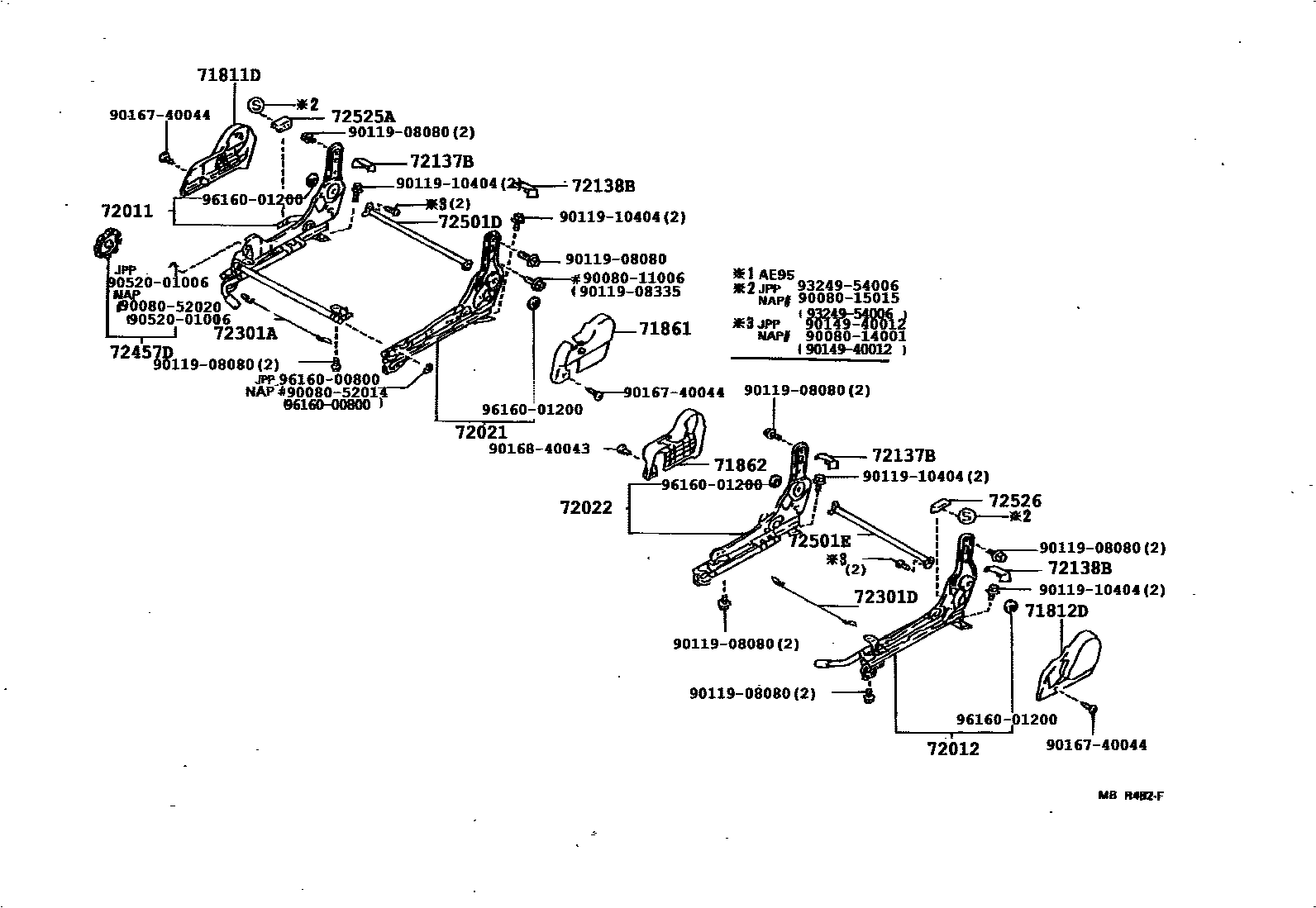

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-01030 · 71011-01040 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-01030 · 71012-01010 |
| 71505 | Front right seat back cushion sub-assembly with frame | 71505-01010 |
| 71506 | Front left seat back cushion sub-assembly with frame | 71505-01010 · 71505-01020 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-01020 · 71511-02010 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-01020 · 71511-02010 |
| 71553B | Front B seat back cushion | 71553-01010 |
| 71553C | Front C seat back cushion | 71553-01010 |
| 71554 | Front C seat back cushion | 71554-01010 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-01020 · 72011-01030 · 72011-12150 · 72011-12170 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-01040 · 72012-01050 · 72012-01060 · 72012-01070 · 72012-12180 · 72012-12190 · 72012-12220 · 72012-12230 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-01020 · 72021-01030 · 72021-12170 · 72021-12190 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-01040 · 72022-01050 · 72022-01060 · 72022-01070 · 72022-12190 · 72022-12200 · 72022-12210 · 72022-12220 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-01020 · 72301-12040 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-01020 · 72301-12040 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72501-01020 · 72501-01030 · 72501-12050 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72501-01020 · 72501-01030 · 72501-12050 |
| 72760D | Left lumbar support adjuster assembly | 72760-12090 |
| 72791A | Shaft snap ring (for lumbar support rod) | 90080-52016 |
