Toyota COROLLA 后门车窗升降器和合页 — Figure 6707

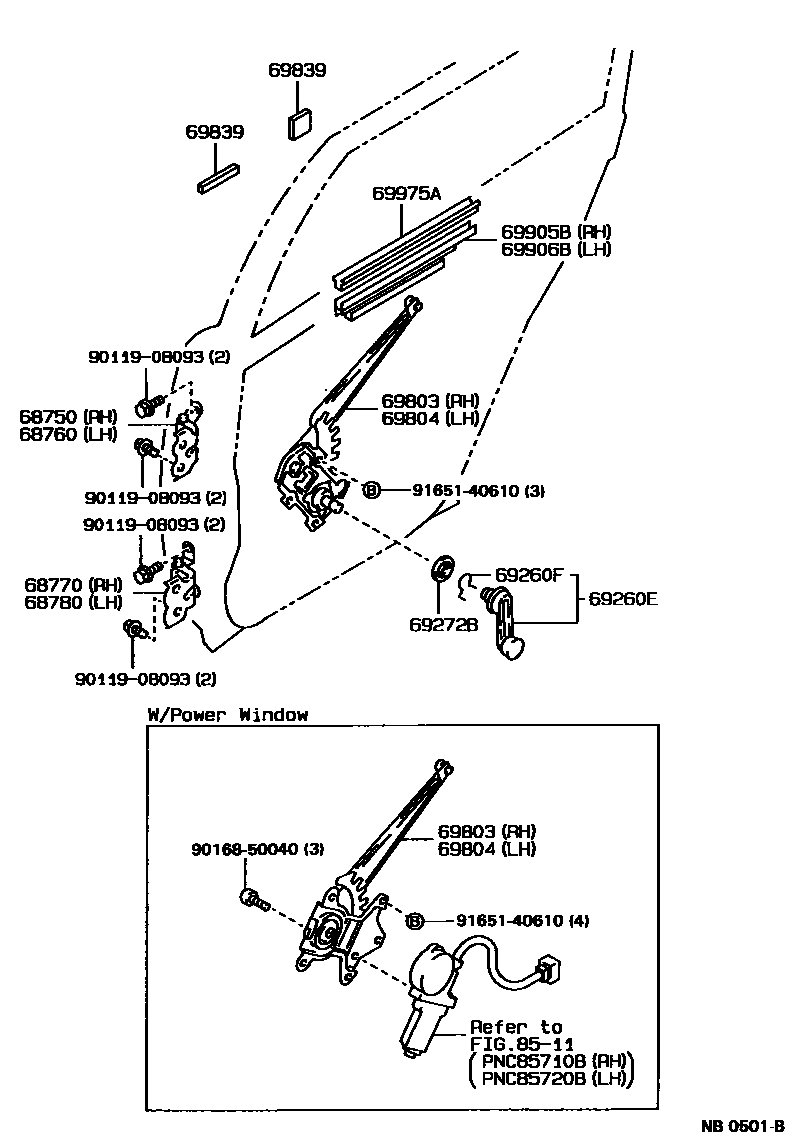

Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-01020 · 68750-12050 |
| 68760 | Left rear door upper hinge assembly | 68760-01020 · 68760-12050 |
| 68770 | Right rear door lower hinge assembly | 68770-01020 · 68770-12060 |
| 68780 | Left rear door lower hinge assembly | 68780-01020 · 68780-12050 |
| 69260F | Shaft snap ring (for rear door window regulator handle) | 90080-52001 · 90081-52007 |
| 69272B | Rear door window regulator inner handle plate | 69268-01020 · 69268-16010 |
| 69803 | Right rear door window lifter sub-assembly | 69803-12060 · 69830-02010 · 69830-12130 |
| 69804 | Left rear door window lifter sub-assembly | 69804-12060 · 69840-02010 · 69840-12130 |
| 69839 | Rear door window regulator gasket | 69839-12010 · 69839-95800 |
| 69905B | Right rear door glass groove sub-assembly | 69905-01020 |
| 69906B | Left rear door glass groove sub-assembly | 69906-01020 |
| 69975A | Rear door glass channel filler | 69975-01010 |
