Toyota COROLLA 前门车窗升降器和合页 — Figure 6704

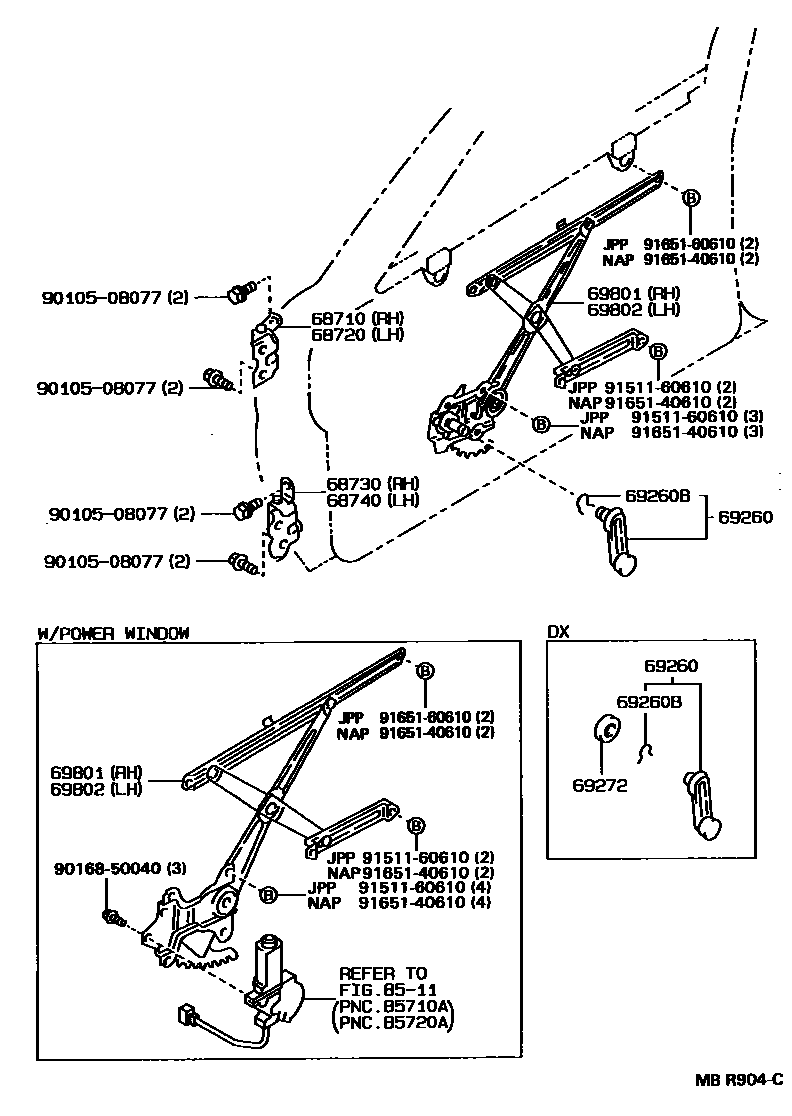

Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-01020 · 68710-12110 |
| 68720 | Left front door upper hinge assembly | 68720-01020 · 68720-12110 |
| 68730 | Right front door lower hinge assembly | 68730-01020 · 68730-12070 |
| 68740 | Left front door lower hinge assembly | 68740-01020 · 68740-12070 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90080-52001 · 90081-52007 |
| 69272 | Front door window lift inner handle plate | 69268-01020 · 69268-16010 |
| 69801 | Right front door window lifter sub-assembly | 69801-01020 · 69801-12100 · 69810-01040 · 69810-02040 · 69810-12290 · 69810-12370 |
| 69802 | Left front door window lifter sub-assembly | 69802-01020 · 69802-12100 · 69820-01040 · 69820-02040 · 69820-12290 · 69820-12370 |
