Toyota COROLLA 前门板和前门玻璃 — Figure 6701

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 3 images and 34 PNC and OE references.

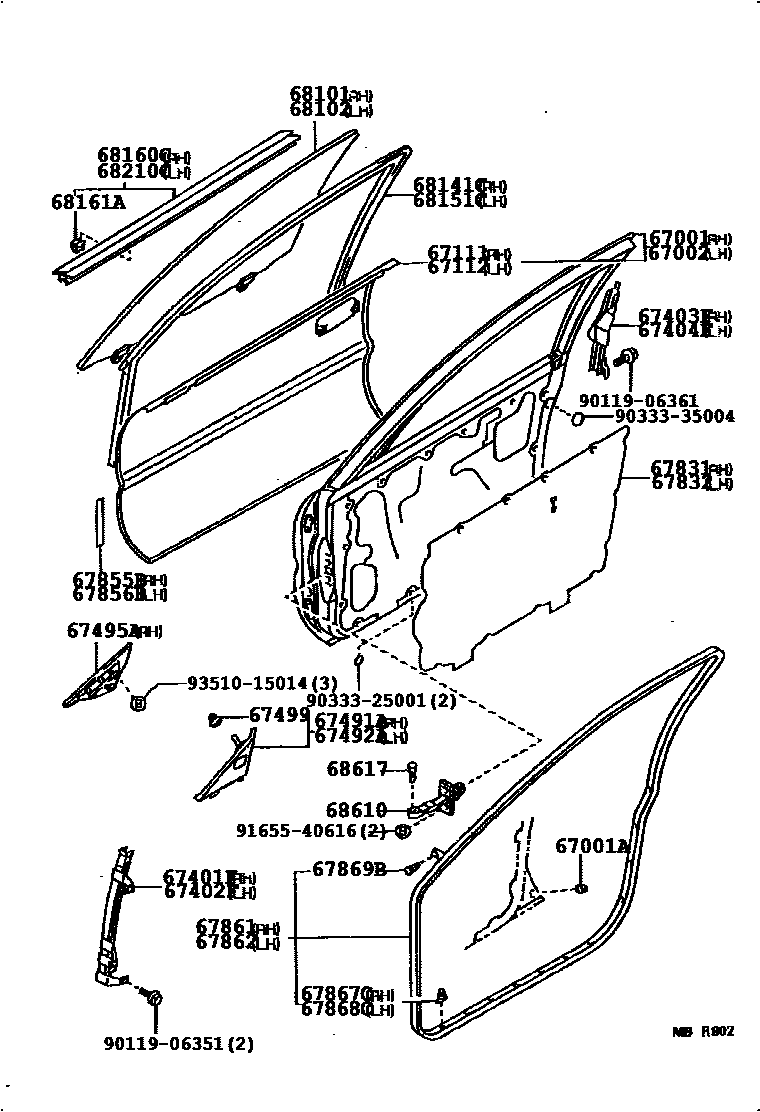

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 676775
前门板和前门玻璃 — 676775 (198708 – 999999)

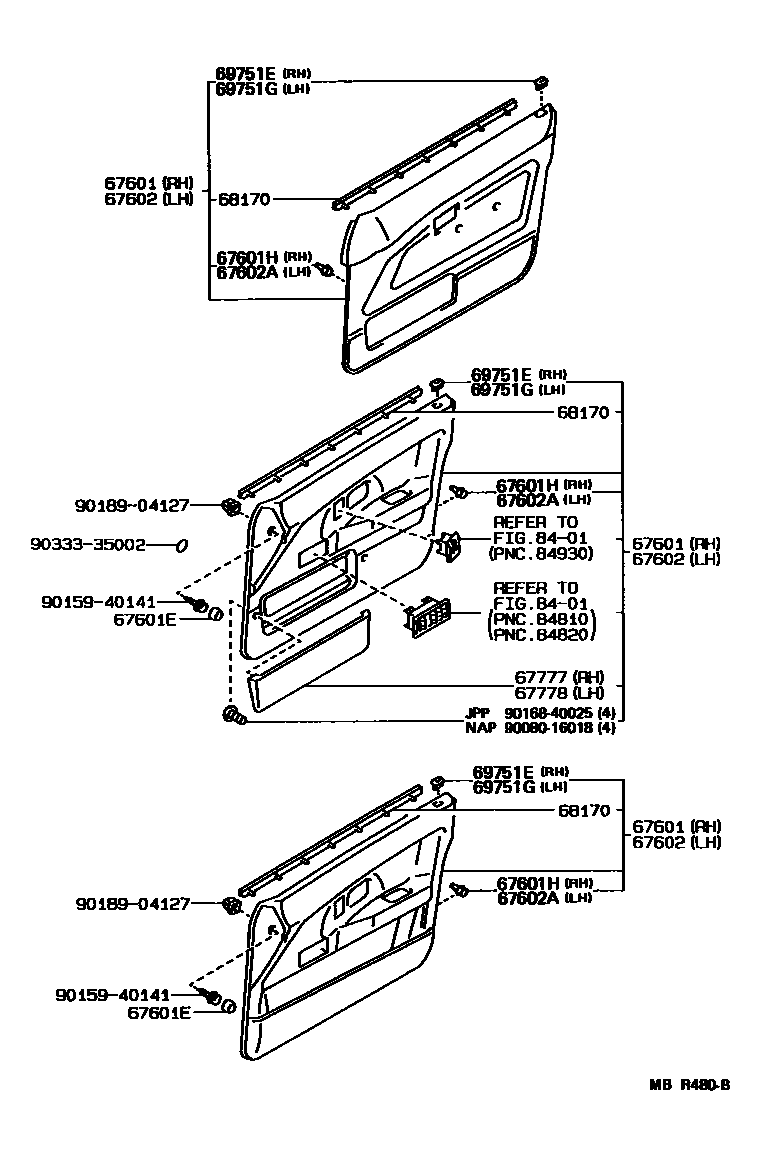

Toyota COROLLA 前门板和前门玻璃 EPC diagram — MBR480B
前门板和前门玻璃 — MBR480B (198809 – 198909)

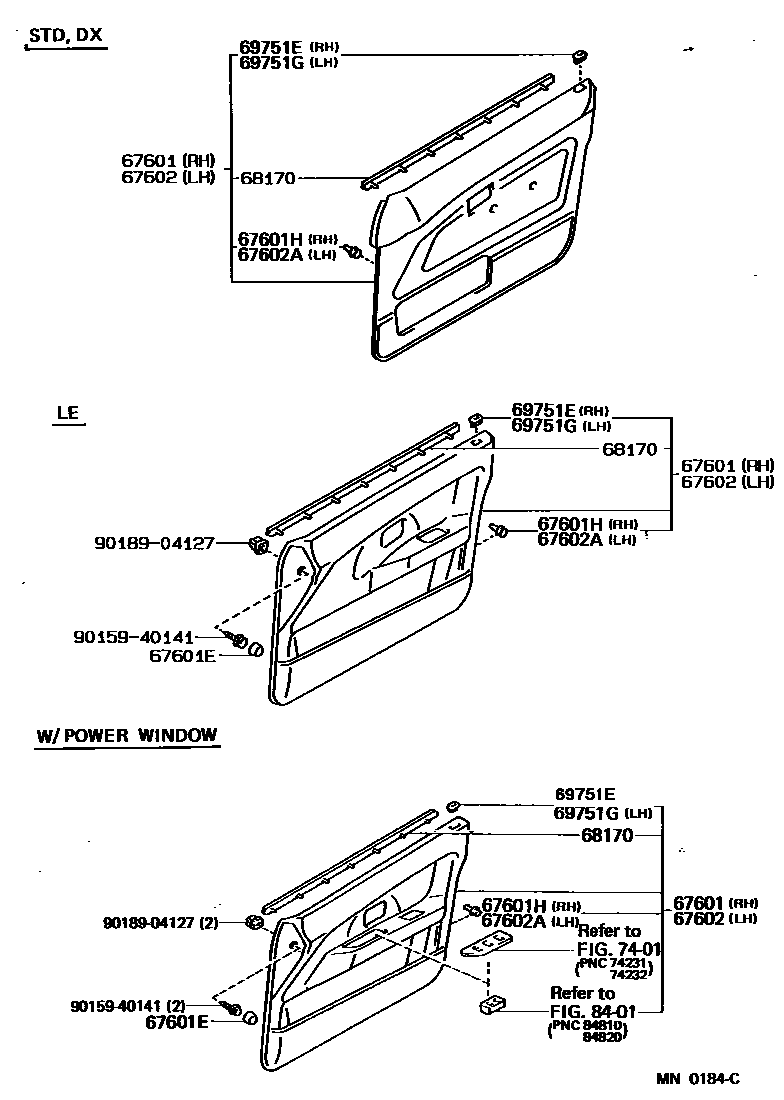

Toyota COROLLA 前门板和前门玻璃 EPC diagram — MN0184C
前门板和前门玻璃 — MN0184C (198909 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-02020 · 67001-02030 · 67001-02040
67001AFront door panel cushion90541-09035
67002Left front door panel sub-assembly67002-02020 · 67002-02030 · 67002-02040
67111Outer right front door panel67111-02020
67112Outer left front door panel67112-02020
67401FRight front door front lower door frame sub-assembly67401-12290
67402FLeft front door front lower door frame sub-assembly67402-12310
67403FRight front door rear lower door frame sub-assembly67403-12100
67404FLeft front door rear lower door frame sub-assembly67404-12100
67491ARight front door lower door frame bracket decorative strip67491-02030 · 67491-02040
67492ALeft front door lower door frame bracket decorative strip67492-02030 · 67492-02040
67495ARight front door front lower door frame upper cover67495-02030
67499Front door lower door frame bracket trim strip fixing67499-01020 · 67499-12030
67601HRight door trim panel fixing67771-02030 · 67771-12030 · 67771-12040 · 67771-12050 · 67771-89104
67602ALeft door trim panel fixing67771-02030 · 67771-12030 · 67771-12040 · 67771-12050 · 67771-89104
67831Right front door access hole cover67831-12350
67832Left front door access hole cover67831-12350 · 67832-12210
67855BRight front door panel protector58741-12060
67856BLeft front door panel protector58741-12060
67861Right front door seal67861-02020 · 67861-02030 · 67861-02040 · 67861-02050 · 67861-12710 · 67861-12730
67862Left front door seal67862-02020 · 67862-02030 · 67862-02040 · 67862-02050 · 67862-12690
67867CRight front door seal strip fixing67867-01020 · 67868-02030 · 67868-12050
67868CLeft front door seal strip fixing67868-01020 · 67868-02010 · 67868-02040 · 67868-12050
67869BFront door seal strip clip67869-01010 · 67869-02010 · 67869-12020
68101Right front door glass sub-assembly68101-02020
68102Left front door glass sub-assembly68102-02020
68141CRight front door glass lift channel68141-02020
68151CLeft front door glass lift channel68151-02010
68160CRight front door glass outer sealing strip assembly68160-02030
68161ACatch (for front door glass outer sealing strip)68211-02030 · 68212-02010
68170Front door glass inner sealing strip assembly68171-01010 · 68171-02040 · 68171-12180 · 68172-01010 · 68172-02030 · 68172-12110
68210CLeft front door glass outer sealing strip assembly68210-02010
68610Front door opening limiter assembly68610-01020 · 68610-12050
68617Front door opening limiter pin68617-12030 · 68617-22020
