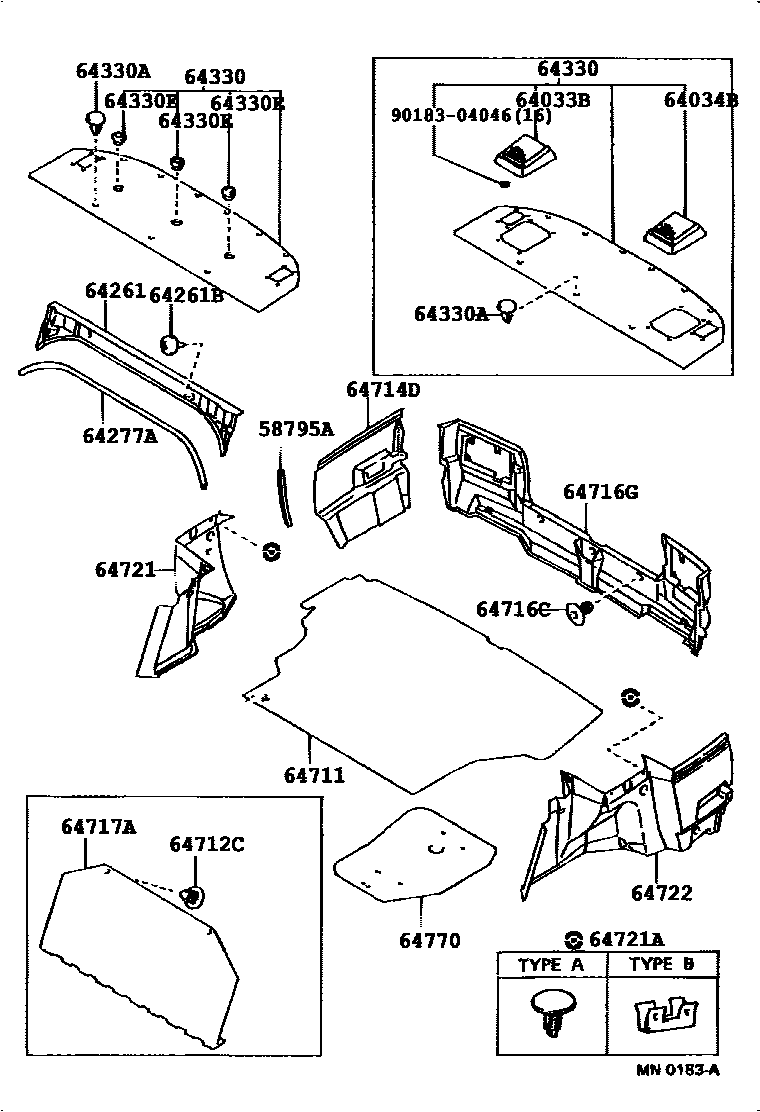

Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403
Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58795A | Jack cover opening trim strip | 58795-16020 |
| 64261B | Cushion pad (for cabin partition trim) | 90541-09060 |
| 64770 | Spare tire cover assembly | 64770-01020 |
