Toyota COROLLA 车侧通风装置 — Figure 6102

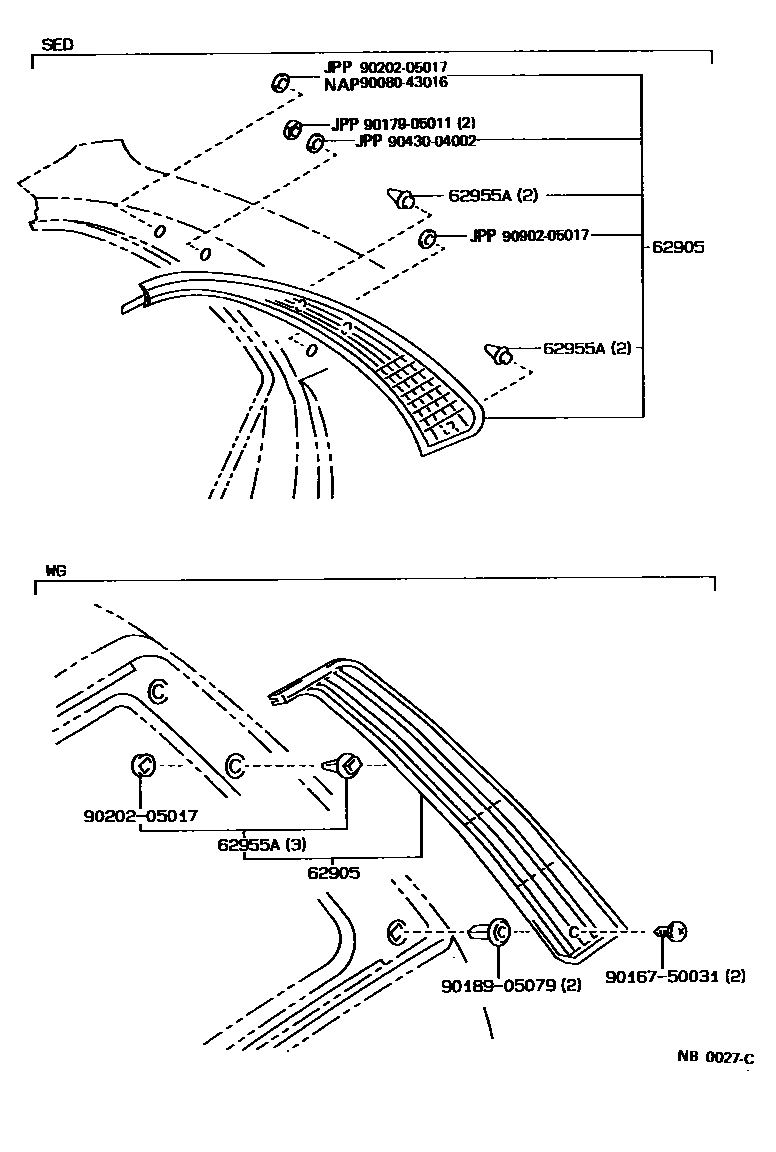

Toyota COROLLA EPC diagram 6102, 车侧通风装置, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62905 | Side ventilation grilles | 62905-02020 · 62905-12250 · 62905-12310 · 62906-02020 · 62906-12250 · 62906-12310 |
| 62955A | Side ventilation grille fixings | 62955-02030 · 62955-12020 · 62955-12040 |
