Toyota COROLLA 侧梁 — Figure 6101

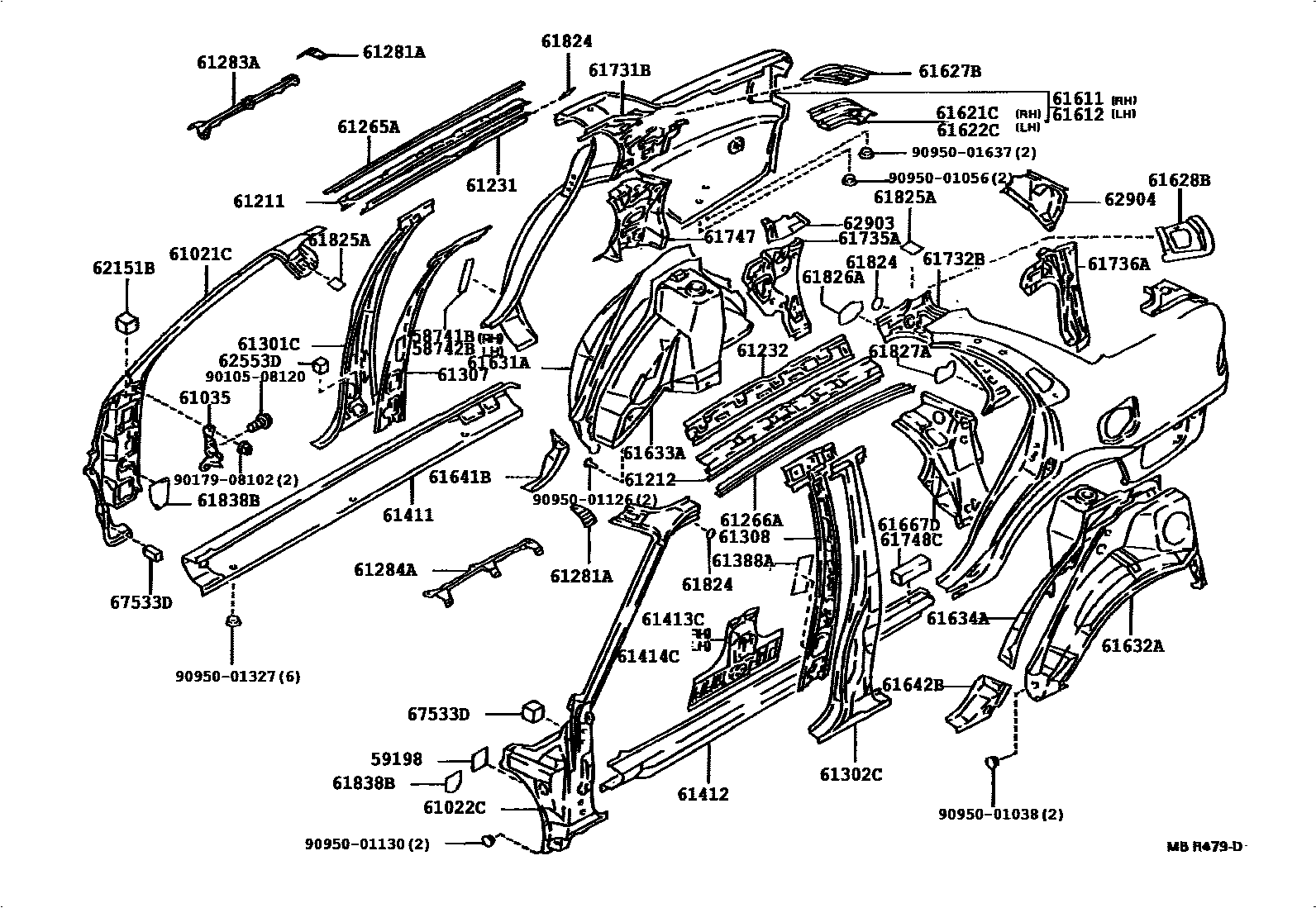

Toyota COROLLA EPC diagram 6101, 侧梁, with 1 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-12060 |
| 58742B | Left side enclosure protection panel | 58741-12060 |
| 59198 | Silencer panel seal | 59198-01010 · 59198-12010 |
| 61021C | Right body front pillar sub-assembly | 61021-02020 · 61021-02040 |
| 61022C | Left body front pillar sub-assembly | 61022-02020 · 61022-02040 |
| 61035 | Instrument panel to right front wall side bracket sub-assembly | 61035-12040 |
| 61211 | Roof right outer longitudinal beam | 61211-12220 |
| 61212 | Roof left outer longitudinal beam | 61212-12220 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-12430 |
| 61232 | Roof left inner longitudinal beam | 61232-12330 |
| 61265A | Drainage channel in the middle section on the right side of the roof | 61265-12110 |
| 61266A | Drainage channel in the middle section of the left side of the roof | 61266-12110 |
| 61281A | Sliding sunroof frame No. 1 side mounting bracket | 61281-12030 |
| 61283A | Sliding sunroof frame No. 3 right side mounting bracket | 61283-12030 |
| 61284A | Sliding sunroof frame No. 3 left mounting bracket | 61284-12030 |
| 61301C | Right body outer center pillar sub-assembly | 61301-02010 · 61301-02020 · 61301-02030 |
| 61302C | Left body outer center pillar sub-assembly | 61302-02010 · 61302-02020 · 61302-02030 |
| 61307 | Right body inner center pillar sub-assembly | 61307-01010 · 61307-01020 |
| 61308 | Left body inner center pillar sub-assembly | 61308-01010 · 61308-01020 |
| 61388A | Right body center pillar end plate | 61388-01010 · 61388-12010 |
| 61411 | Right door outer sill panel | 61411-01020 |
| 61412 | Left door outer sill panel | 61412-01020 |
| 61413C | Right side door sill panel No. 2 reinforcement | 61413-12040 |
| 61414C | Left side door sill panel No. 2 reinforcement | 61414-12060 |
| 61611 | Right side hoarding | 61601-02902 |
| 61612 | left side panel | 61602-02902 · 61602-02903 |
| 61621C | Luggage right opening slot | 61621-12280 · 61621-12281 |
| 61622C | Luggage trunk left opening slot | 61622-12280 · 61622-12281 |
| 61627B | Right rear side panel extension | 61627-12020 |
| 61628B | Extension on left rear side panel | 61628-12020 |
| 61631A | Right wheel cover outer panel | 61631-12230 |
| 61632A | Left side wheel cover outer panel | 61632-12230 |
| 61633A | Right wheel housing lining panel | 61607-02900 · 61607-02901 |
| 61634A | Left side wheel housing lining panel | 61608-02900 · 61608-02901 |
| 61641B | Right wheel housing corner panel | 61641-12040 |
| 61642B | Left side wheel housing corner panel | 61642-12040 |
| 61667D | Side panel seals | 61667-02010 · 61667-12050 |
| 61731B | Roof right inner panel | 61731-12420 |
| 61732B | Roof left inner panel | 61732-12380 |
| 61735A | Right rear roof inner panel | 61735-12902 |
| 61736A | Left rear roof inner panel | 61736-12902 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-12100 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-12100 |
| 61824 | Noise Control Panel No. 1 | 61824-01020 · 61824-12020 |
| 61825A | Noise Control Panel No. 2 | 61825-01010 · 61825-12010 |
| 61826A | Noise Control Panel No. 3 | 61826-02010 · 61826-12010 |
| 61827A | Noise Control Panel No. 4 | 61827-02010 · 61827-12010 |
| 61838B | No. 5 Noise Control Panel | 61838-01010 · 61838-12010 |
| 62151B | Front cowl side silencer pads | 62151-01020 · 62151-12100 |
| 62553D | No. 3 column pad | 62553-01010 · 62553-12120 |
| 62903 | Right side ventilation duct sub-assembly | 62903-12120 |
| 62904 | Left side ventilation duct sub-assembly | 62904-12130 |
| 67533D | Right front door lower door frame decorative pad | 67533-01010 · 67533-12010 |
