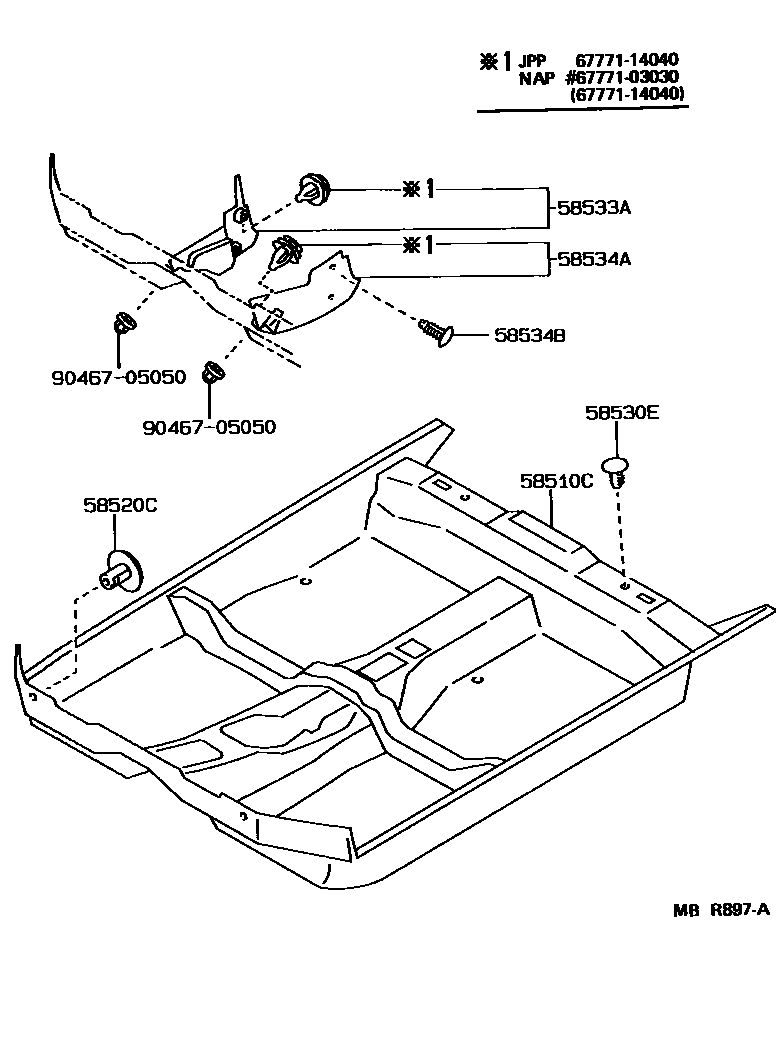

Toyota COROLLA 地板垫和地毯 — Figure 5804
Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58510C | Front floor and front felt pad assembly | 58510-02080 |
| 58533A | Right center carpet cover | 58533-01010 |
| 58534A | transmission cover gasket | 58534-01010 |
