Toyota COROLLA 地板隔热垫 — Figure 5802

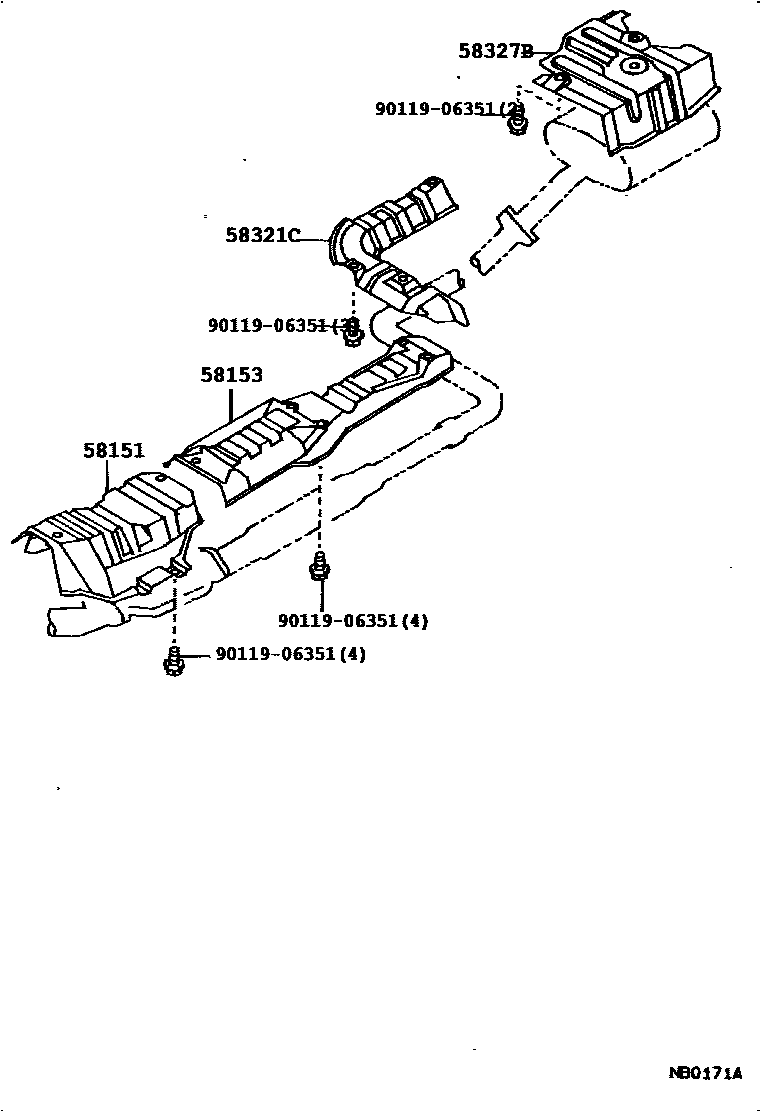

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-01020 |
| 58153 | Front floor insulation mat No. 2 | 58153-01020 |
| 58321C | Rear floor front insulation mat | 58321-01020 |
| 58327B | Main muffler heat insulation pad | 58327-01020 |
