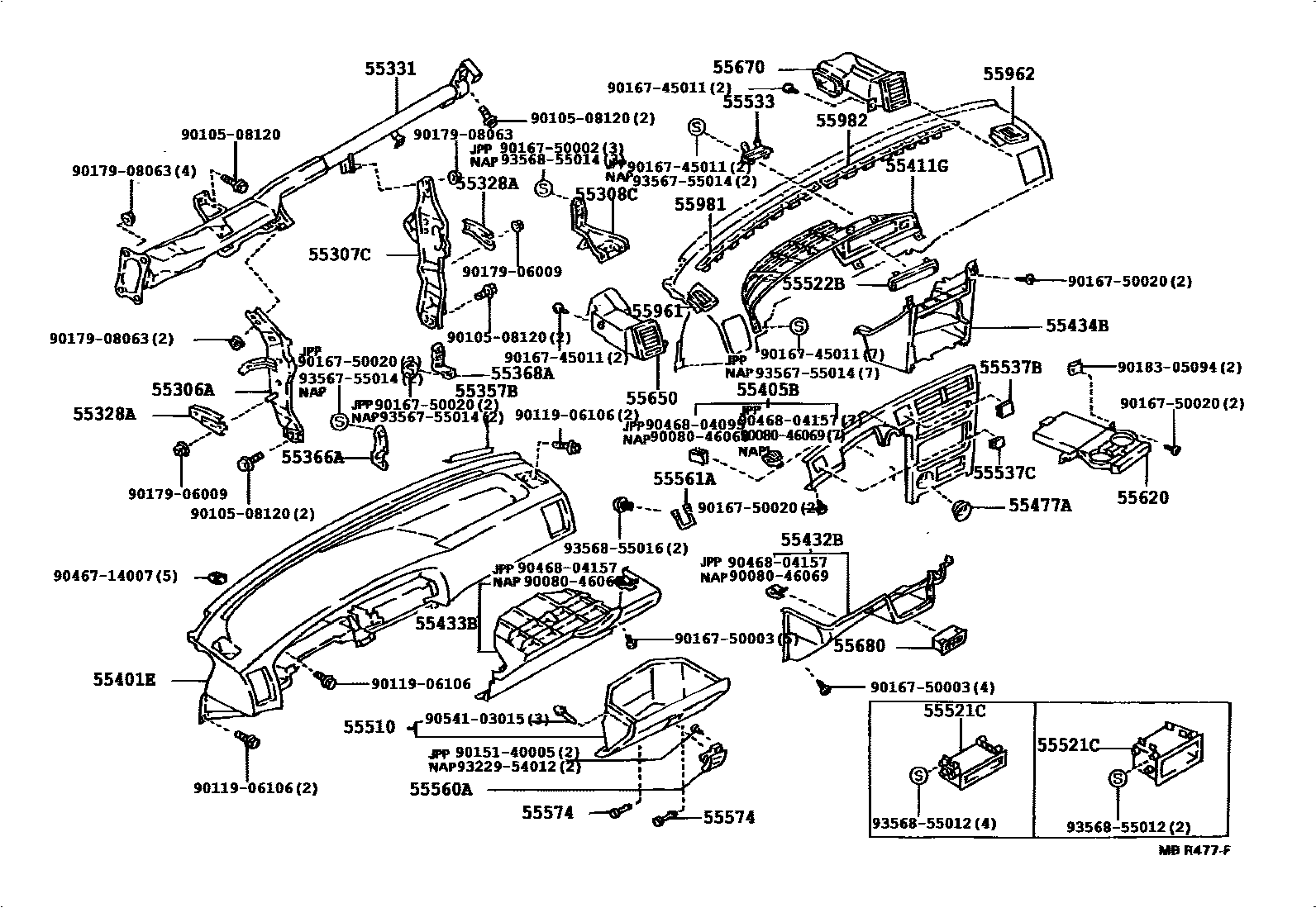

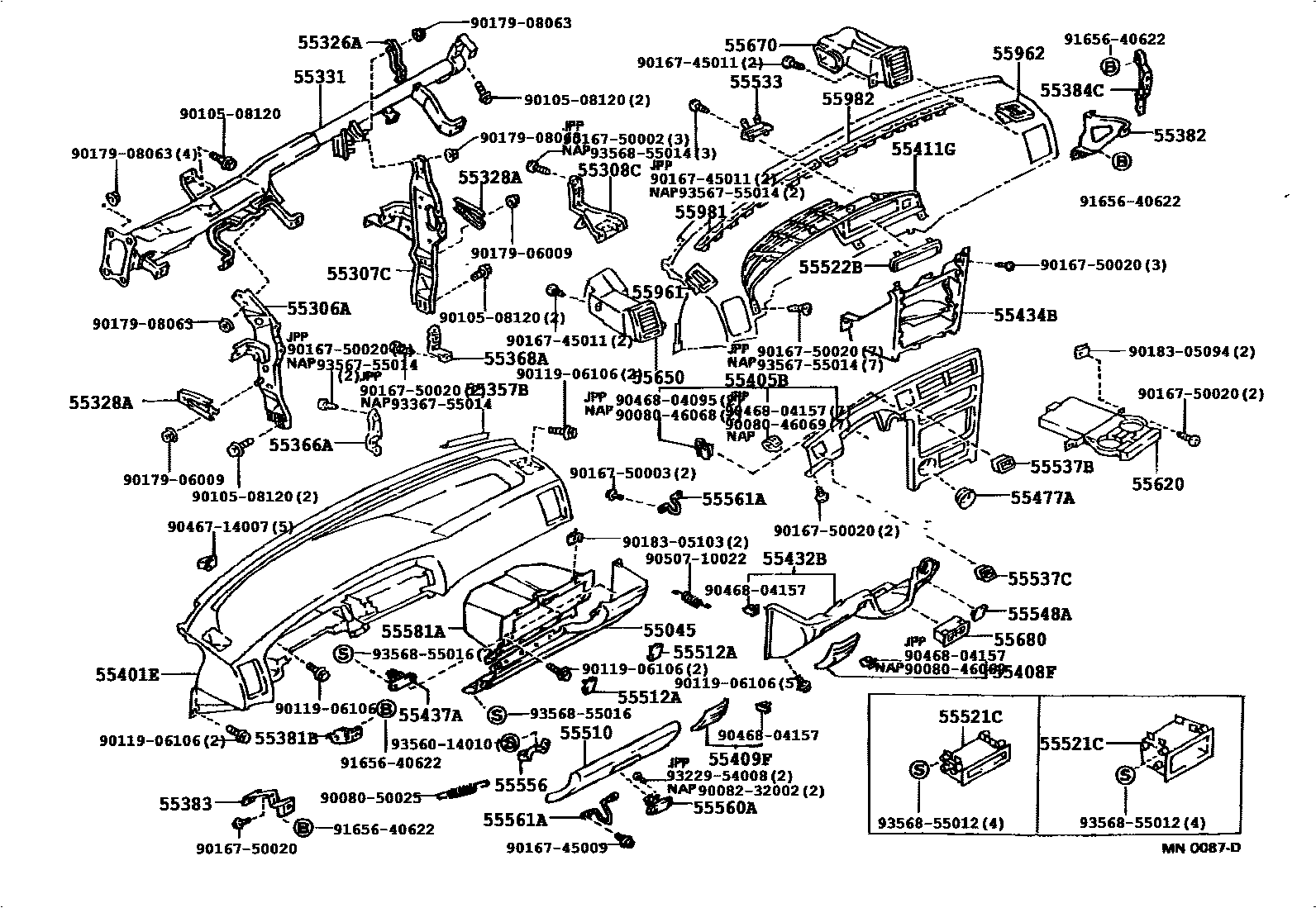

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12070 · 55306-12120 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-12120 · 55307-12170 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-12140 · 55308-12150 |
| 55326A | Dashboard No. 1 stay | 55326-01020 · 55326-12090 |
| 55328A | Dashboard No. 3 stay | 55328-01010 |
| 55331 | Dashboard reinforcement | 55330-01030 · 55330-02010 · 55330-12210 · 55330-12220 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-01030 · 55357-22010 |
| 55366A | Radio No. 1 mounting bracket | 55366-02010 · 55366-12020 |
| 55368A | Radio No. 2 mounting bracket | 55368-02010 · 55368-12020 |
| 55381B | No. 1 decorative panel mounting bracket | 55381-12050 |
| 55382 | No. 2 decorative panel mounting bracket | 55382-12040 |
| 55383 | No. 3 decorative panel mounting bracket | 55383-12010 |
| 55384C | No. 4 decorative panel mounting bracket | 55384-12010 |
| 55411G | Instrument cluster No. 1 decorative panel | 55411-02020 |
| 55437A | Instrument panel No. 1 decorative panel fixings | 55437-12050 |
| 55477A | Cigarette lighter hole frame | 55477-01020 |
| 55512A | glove box panel | 55512-01020 · 55512-12100 |
| 55521C | stereo system hole cover | 55521-01010 |
| 55522B | Radio tuner opening cover | 55522-02020 |
| 55533 | automatic clock hole cover | 55533-02010 |
| 55556 | Glove box cover stopper arm | 55556-12130 |
| 55561A | Glove box lid lock | 55561-01020 · 55561-01030 · 55561-12060 |
| 55574 | Glove box cover hinge shaft | 55574-01010 |
| 55581A | Glove box | 55581-12130 |
