Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

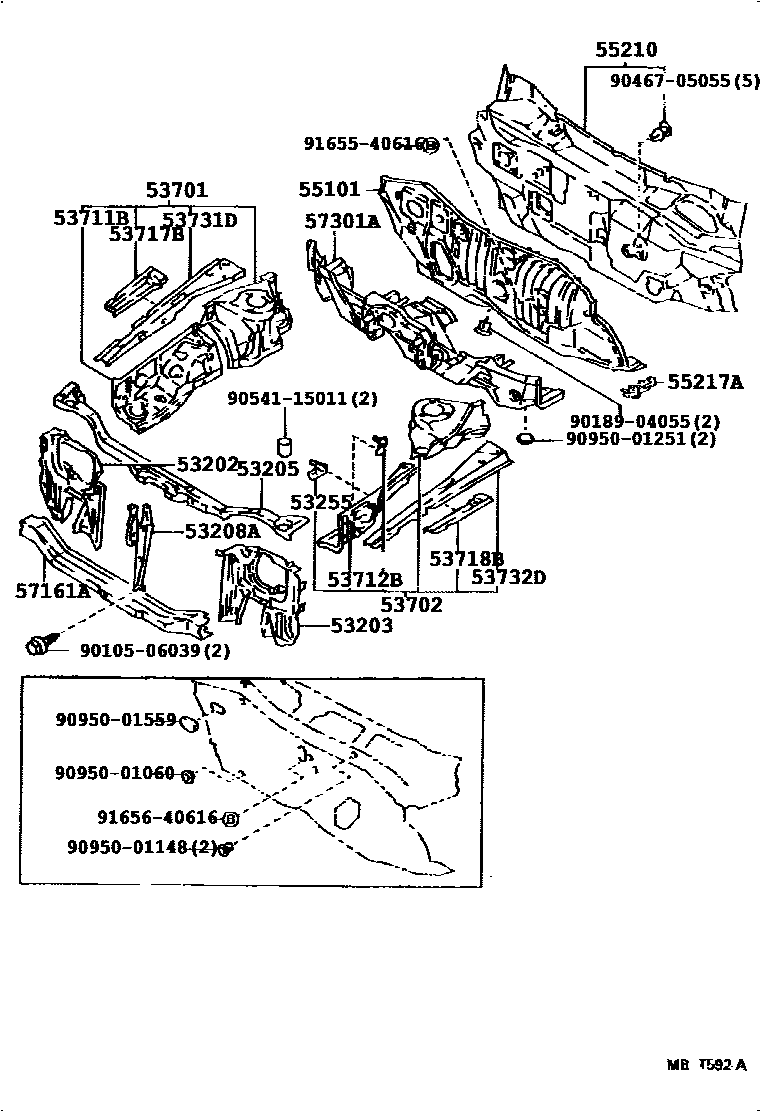

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53202 | Radiator right side bracket sub-assembly | 53202-12290 |
| 53203 | Radiator left bracket sub-assembly | 53203-12250 |
| 53205 | Radiator upper bracket sub-assembly | 53216-12928 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-02020 |
| 53255 | Relay box mounting bracket | 53255-12010 |
| 53701 | Right front fender fender sub-assembly | 53701-01020 |
| 53702 | Left front fender fender sub-assembly | 53702-01020 |
| 53711B | Right front fender front fender | 53711-12210 |
| 53712B | Left front fender front fender | 53712-12170 |
| 53717B | Right fender fender corner panel | 53717-12040 |
| 53718B | Left fender fender corner panel | 53718-12040 |
| 53731D | Right front fender to cowl side upper beam | 53731-12130 · 53731-12140 |
| 53732D | Left front fender to cowl side upper beam | 53732-12120 |
| 55101 | Front apron sub-assembly | 55101-01030 · 55101-01040 · 55101-01090 · 55101-01100 · 55101-02030 · 55101-02040 · 55101-02050 · 55101-02060 · 55101-1A790 · 55101-1A810 · 55101-1A830 · 55101-1A850 |
| 55210 | Front wall insulation pad assembly | 55210-01030 |
| 55217A | Front apron muffler fixings | 55217-01010 |
| 57161A | Front cross member with rear seal | 57161-12912 |
| 57301A | Steering housing support beam sub-assembly | 57301-01020 |
