Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 1 images and 1 PNC and OE references.

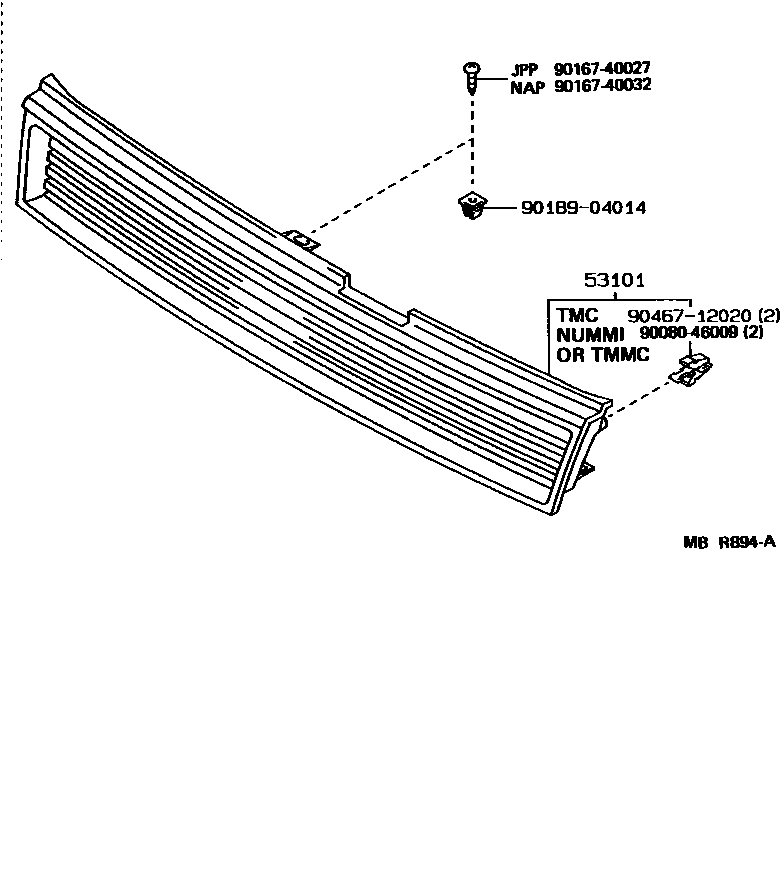

Toyota COROLLA radiator grille EPC diagram — MBR894A
radiator grille — MBR894A (198708 – 999999)

PNC and OE references

PNCPart nameOE numbers
53101Radiator grille sub-assembly53101-02030 · 53101-02040 · 53101-12490 · 53101-12670
