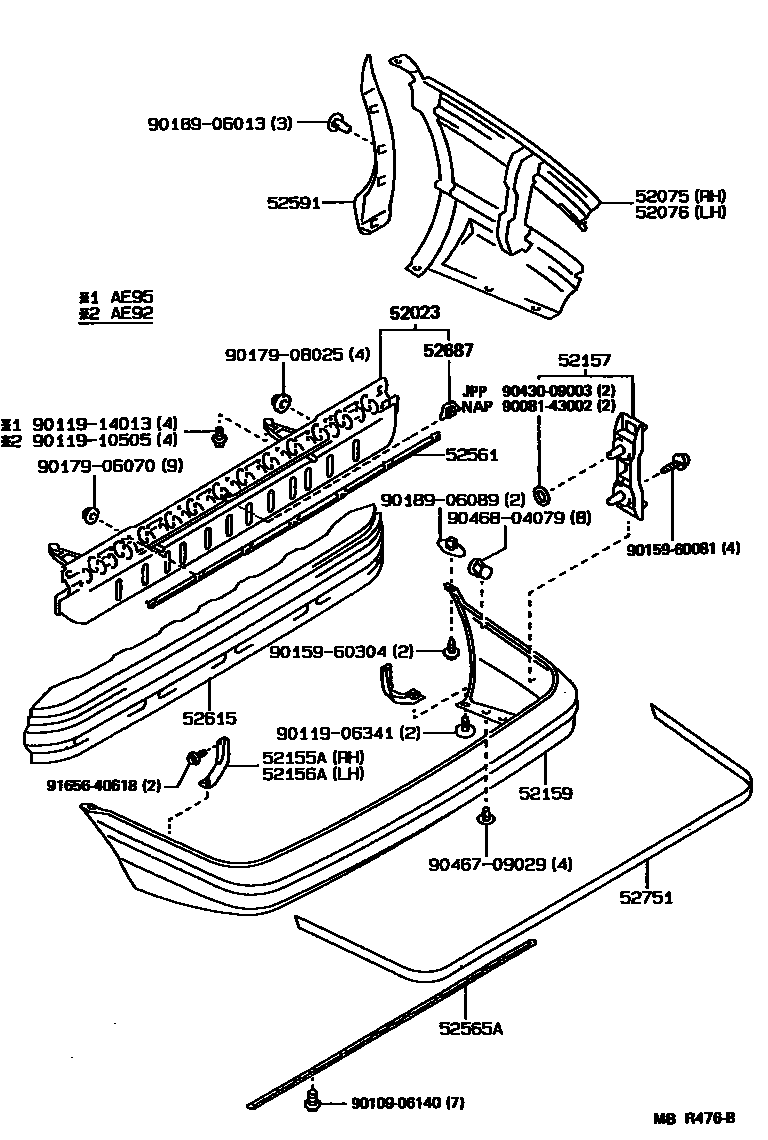

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-01020 |
| 52075 | Rear bumper right side fixing part sub-assembly | 52075-02020 |
| 52076 | Rear bumper left side fixing part sub-assembly | 52076-02020 |
| 52155A | Rear bumper right side bracket | 52155-01020 · 52155-12150 |
| 52156A | Rear bumper left bracket | 52156-01020 · 52156-12140 |
| 52157 | Rear bumper No. 2 side bracket | 52157-02010 |
| 52561 | Rear bumper upper center fixing bracket | 52561-01020 |
| 52565A | Rear bumper lower fixing bracket | 52565-12170 |
| 52591 | Rear bumper right seal | 52591-01020 |
| 52615 | Rear bumper energy absorber | 52615-02030 |
| 52687 | Rear bumper No. 1 hook installation lining plate | 52687-22010 |
| 52751 | Rear bumper protection strip | 52751-02020 |
