Toyota COROLLA 前保险杠及附件 — Figure 5201

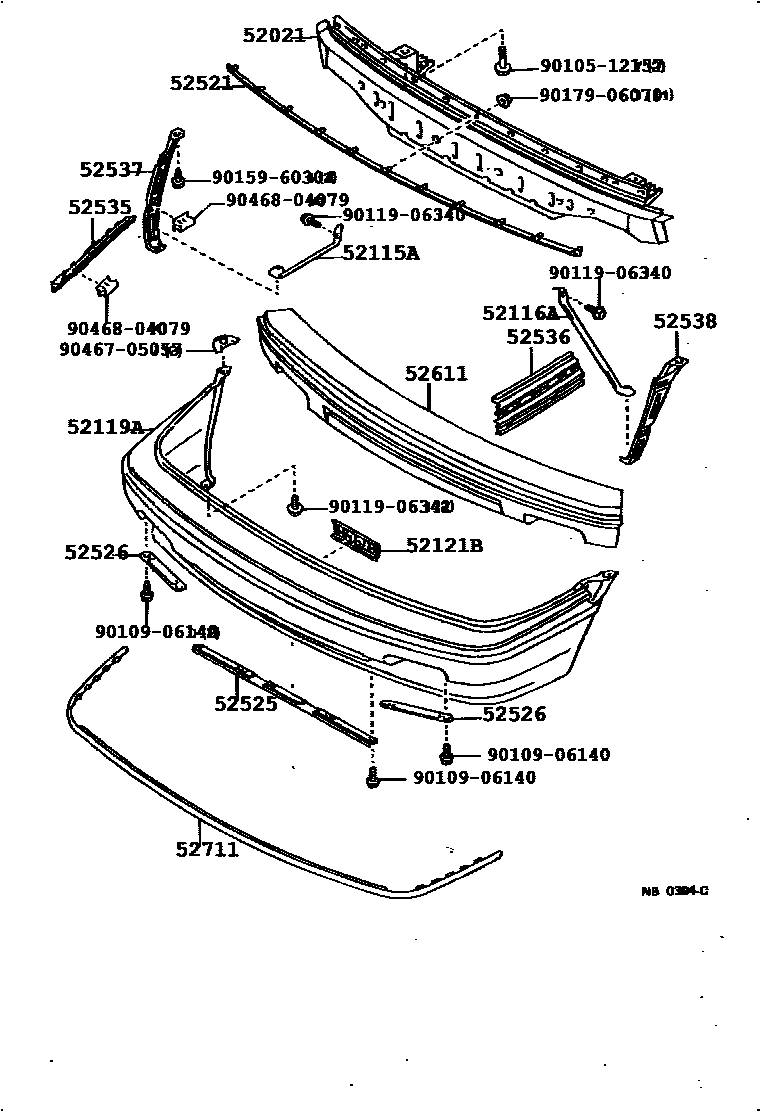

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-02030 |
| 52115A | Front bumper right side bracket | 52115-12260 |
| 52116A | Front bumper left bracket | 52116-12200 |
| 52121B | Front license plate mounting bracket | 52121-02020 |
| 52521 | Front bumper upper center fixing bracket | 52521-02020 |
| 52525 | Front bumper lower center fixing bracket | 52525-16050 |
| 52526 | Front bumper lower side fixing bracket | 52526-12030 |
| 52535 | Front bumper right side fixing bracket | 52535-12030 |
| 52536 | Front bumper left fixed bracket | 52536-12030 |
| 52537 | Front bumper right end fixing bracket | 52537-12020 |
| 52538 | Front bumper left end fixing bracket | 52538-12010 |
| 52611 | front bumper energy absorber | 52611-02020 |
