Toyota COROLLA 制动配管和卡箍 — Figure 4708

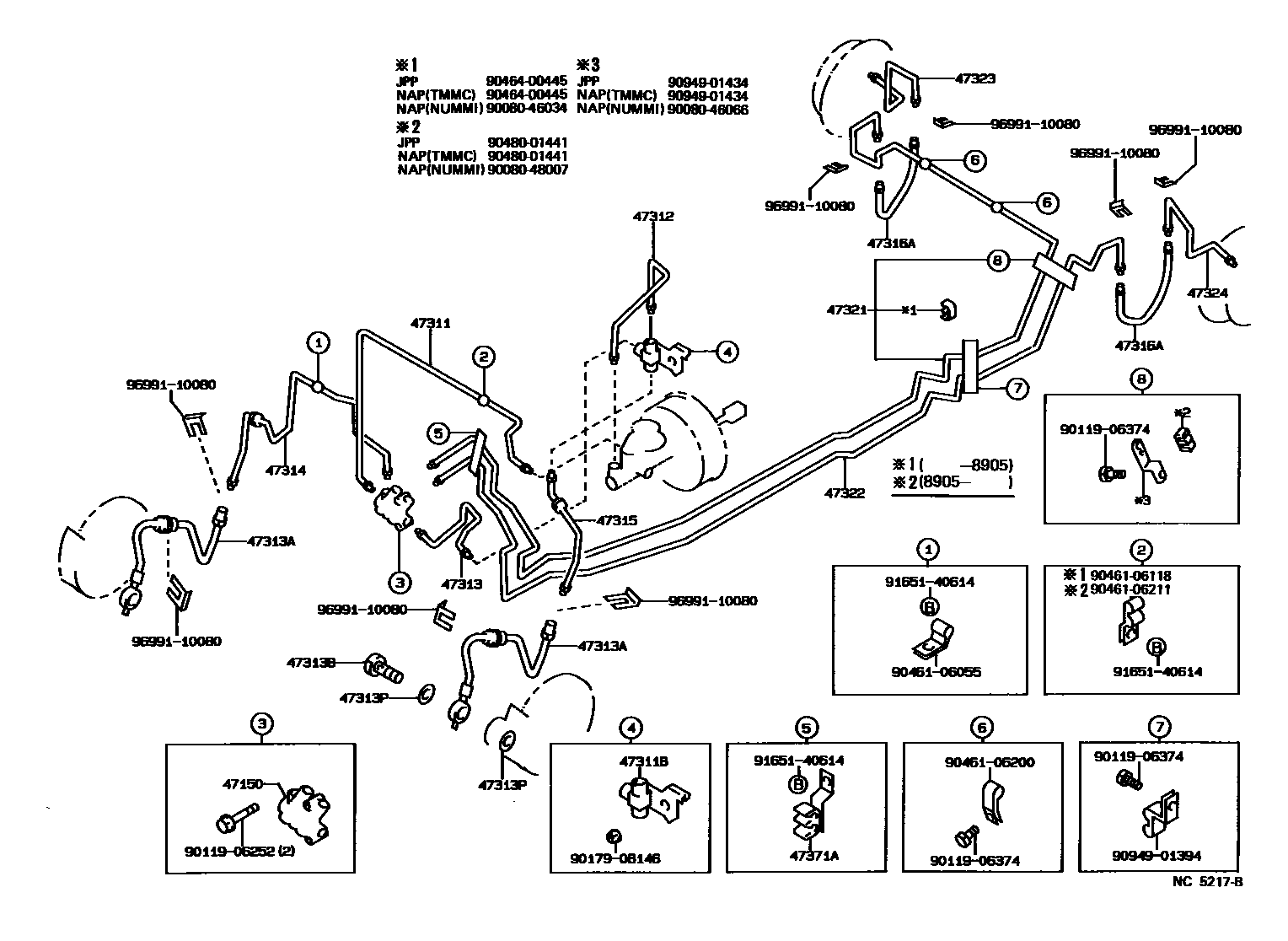

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47150 | Proportional valve assembly | 47150-01030 · 47150-12060 · 47150-12110 |
| 47311 | No. 1 front brake pipe | 47311-01020 · 47311-02010 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90080-41007 · 90413-10159 · 90413-10219 |
| 47312 | No. 2 front brake pipe | 47312-01030 · 47312-12260 |
| 47313 | No. 3 front brake pipe | 47313-01020 · 47313-02010 |
| 47313A | No. 1 front flexible hose | 90080-47023 · 90947-02532 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-01020 · 47314-02010 |
| 47315 | No. 5 front brake pipe | 47315-01020 · 47315-02010 |
| 47316A | Flexible hose (for rear brake pipe) | 90080-47022 · 90947-02533 |
| 47321 | No. 1 rear brake pipe | 47321-01020 · 47321-02010 |
| 47322 | No. 2 rear brake pipe | 47322-01020 · 47322-02010 |
| 47323 | No. 3 rear brake pipe | 47323-01020 · 47323-02010 |
| 47324 | No. 4 rear brake pipe | 47324-01020 · 47324-02010 |
| 47371A | No. 1 brake pipe clamp | 47371-12010 |
