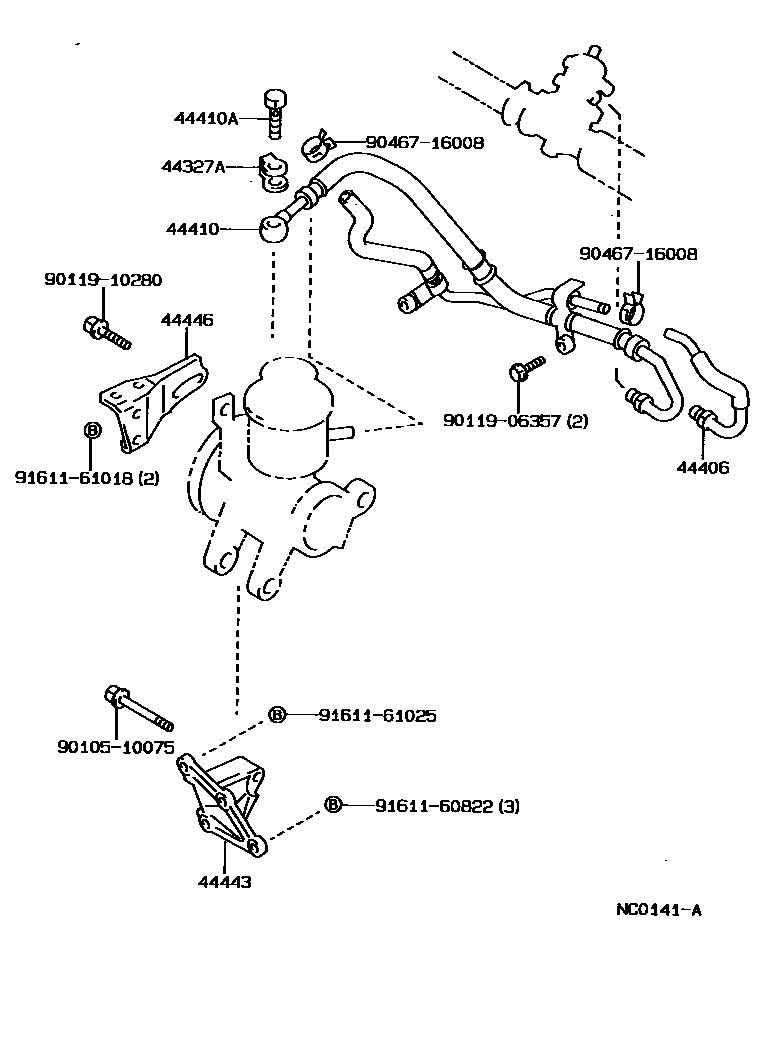

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44406 | Oil return pipe sub-assembly | 44406-01010 · 44406-12120 |
| 44410 | Pressure supply pipe assembly | 44410-01020 · 44410-12320 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16012 |
| 44443 | pump bracket | 44443-12050 |
| 44446 | Adjust the stand | 44446-12040 |
