Toyota COROLLA Front Drive Shaft — Figure 4302

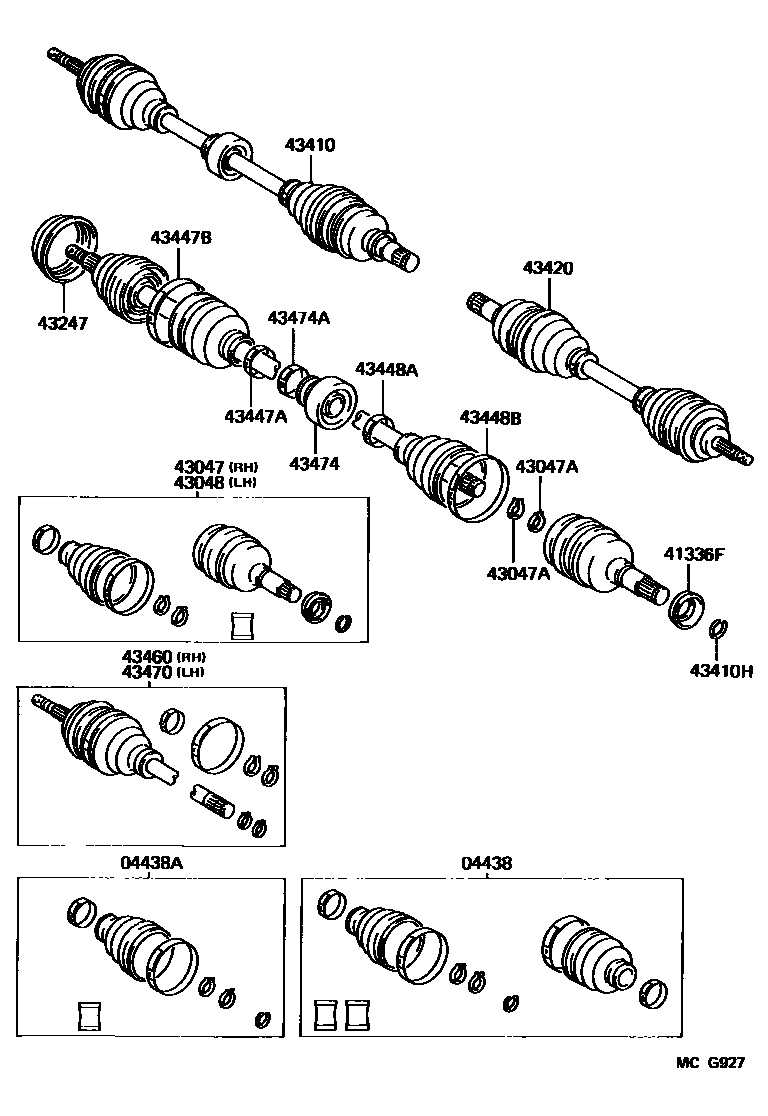

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438 | Front drive shaft dust boot assembly | 04438-01040 · 04438-01050 |
| 04438A | Front drive shaft inner universal joint dust boot assembly | 04438-01030 |
| 41336F | Dust cover (for front axle inner universal joint assembly) | 41336-01010 |
| 43047 | Front axle right half shaft inner universal joint sub-assembly | 43047-09020 |
| 43047A | Shaft snap ring (for front axle inner universal joint) | 90080-52008 |
| 43048 | Front axle left half shaft inner universal joint sub-assembly | 43048-09020 |
| 43247 | No. 2 front wheel bearing dust cover | 43247-01010 |
| 43410 | Right front driveshaft assembly | 43410-01020 · 43410-01030 · 43410-01031 |
| 43410H | Hole snap ring (for front driveshaft) | 90080-52015 |
| 43420 | Left front drive shaft assembly | 43420-01020 · 43420-01030 · 43420-01031 |
| 43447A | Clamp No. 1 (used to fix the universal joint dust cover on the outside of the front axle) | 90080-46051 |
| 43447B | Clamp No. 2 (used to fix the universal joint dust cover on the outside of the front axle) | 90080-46049 |
| 43448A | Clamp No. 1 (used to fix the universal joint dust cover on the inside of the front axle) | 90080-46051 |
| 43448B | No. 2 clip (used to fix the universal joint dust cover on the inside of the front axle) | 90080-46049 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09030 · 43460-09040 · 43460-09041 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09040 · 43470-09050 · 43470-09051 |
| 43474 | drive shaft damper | 43474-01010 |
| 43474A | Clamp (for securing driveshaft damper) | 90080-46051 |
