Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514

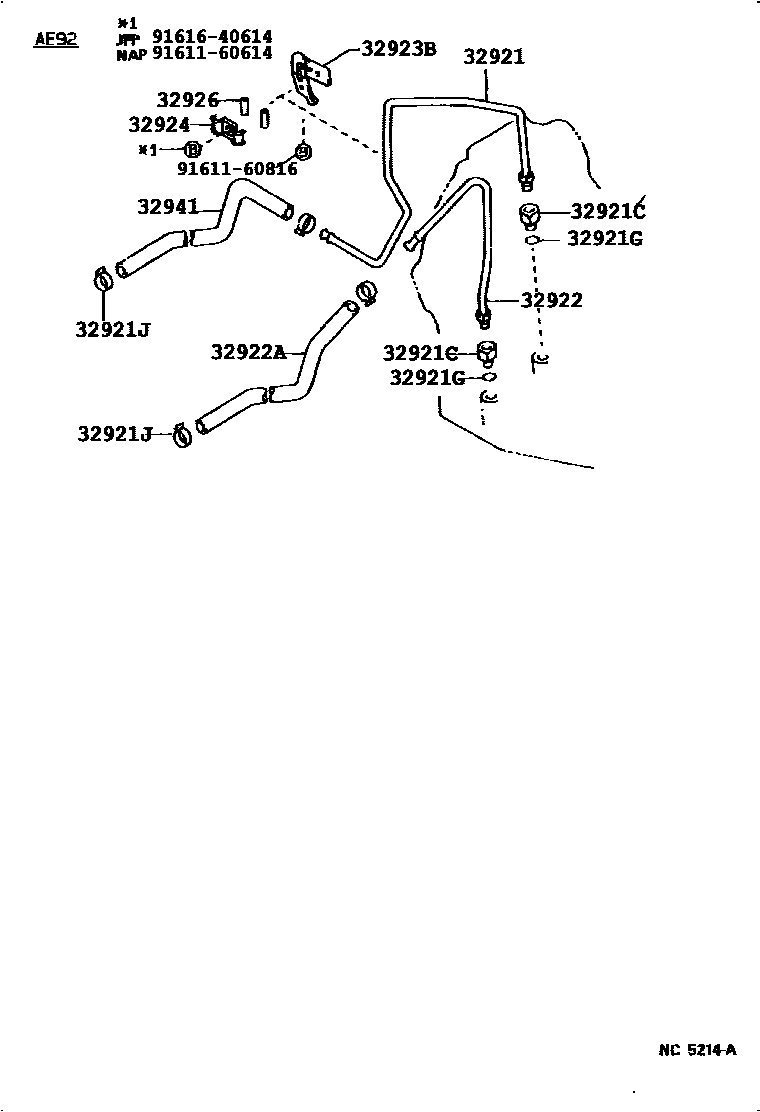

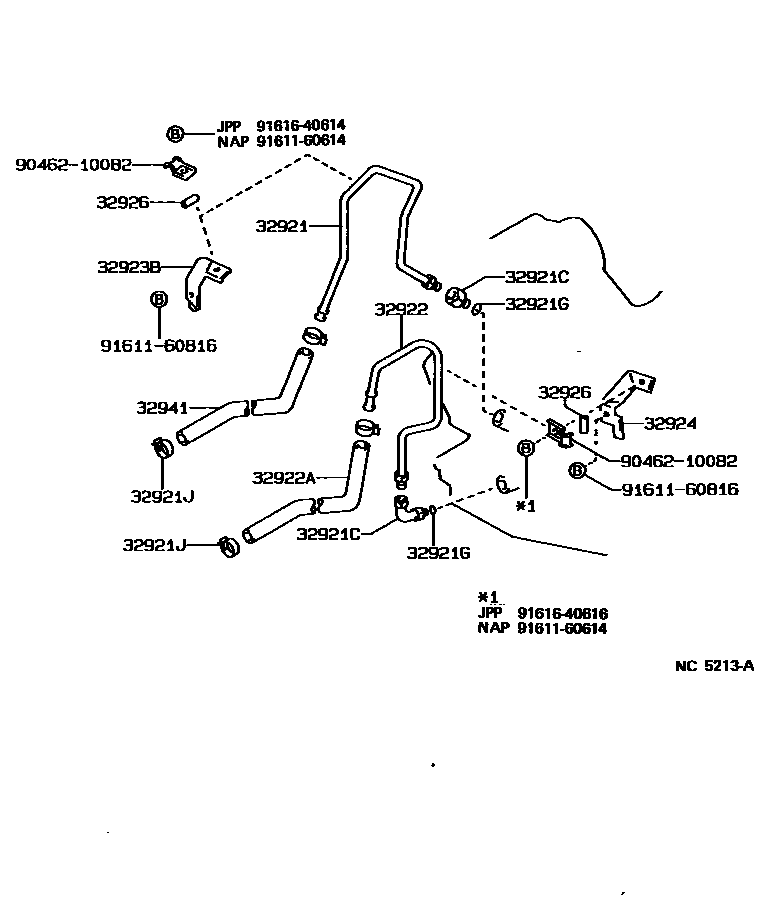

Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-01020 · 32921-01021 · 32921-01030 · 32921-01031 · 32921-02040 · 32921-02050 · 32921-12350 · 32921-12351 · 32921-12360 · 32921-12361 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-14007 · 90407-14003 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32921J | Clamp (for transmission oil cooler hose) | 90467-13039 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-01030 · 32922-01031 · 32922-01040 · 32922-01041 · 32922-02040 · 32922-02050 · 32922-12280 · 32922-12281 · 32922-12290 · 32922-12291 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90080-44009 · 90080-44011 · 90445-15030 · 90445-15034 · 90445-15050 · 90445-15051 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32923-01030 · 32923-12150 · 32923-12160 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32924-01010 · 32924-12040 · 90462-12085 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-03010 · 32926-30011 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-01040 · 32941-02030 · 32941-12130 · 32941-12131 · 32941-12140 · 32941-12141 |
