Toyota COROLLA 换档拨叉和换档杆轴(MTM) — Figure 3307

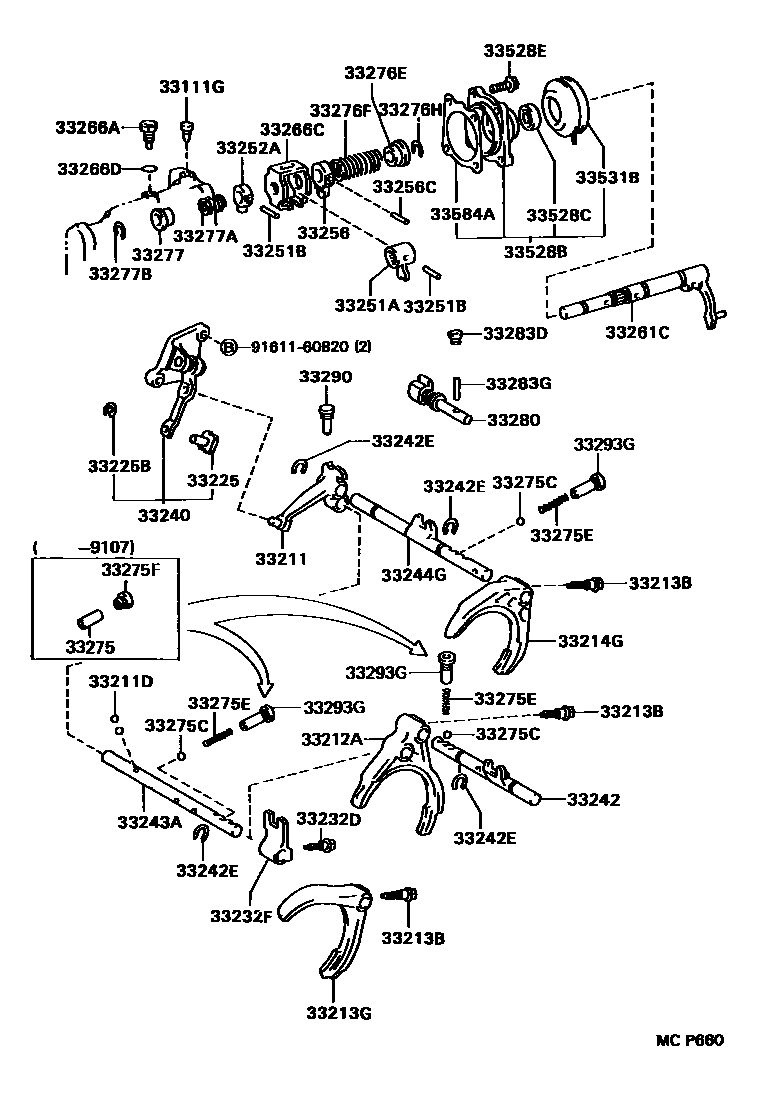

Toyota COROLLA EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 1 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111G | Breather plug (for manual transmission) | 90930-03080 · 90930-03133 |
| 33211 | Reverse Shift Fork | 33211-12020 |
| 33211D | Steel ball (for reverse shift fork) | 90360-06004 |
| 33212A | No. 1 shift fork | 33212-10011 · 33212-10012 · 33212-10013 |
| 33213B | Bolt (for securing shift fork) | 90105-06115 |
| 33213G | No. 2 shift fork | 33213-10021 · 33213-10022 |
| 33214G | No. 3 shift fork | 33214-10021 · 33214-10022 · 33214-12030 |
| 33225 | shift arm shoe | 33225-12010 |
| 33225B | E-ring (for shift arm shoe) | 96160-00800 |
| 33232D | Bolt (for fixing the transmission guide block) | 90105-06115 |
| 33232F | No. 1 transmission guide block | 33232-12012 |
| 33240 | Reverse shift arm bracket assembly | 33240-12011 |
| 33242 | No. 1 shift fork shaft | 33205-12020 · 33205-12021 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33243A | No. 2 shift fork shaft | 33243-12091 · 33243-12092 |
| 33244G | No. 3 shift fork shaft | 33244-12052 · 33244-12053 |
| 33251A | Internal shift lever No. 1 | 33251-10050 |
| 33251B | Slotted spring pin (for inner shift lever) | 90254-05016 |
| 33252A | Internal shift lever No. 2 | 33252-12010 |
| 33256 | Internal gear selector | 33256-12021 |
| 33256C | Slotted spring pin (for interior selector lever) | 90254-05002 |
| 33261C | shift lever shaft | 33261-12051 |
| 33266A | Bolt (for shift interlock plate) | 90109-12019 |
| 33266C | shift interlock plate | 33266-12021 |
| 33266D | Pad (for shift interlock plate) | 90430-12008 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12041 |
| 33275C | Steel ball (for shift lock) | 90360-10003 |
| 33275E | Compression spring (for shift lock steel ball) | 90501-11059 · 90501-14077 |
| 33275F | Screw plug (for gear shift lock steel ball) | 90341-12004 |
| 33276E | No. 1 gear selector spring seat | 33276-12021 |
| 33276F | No. 1 compression spring (for gear selector return) | 90501-16076 |
| 33276H | Shaft snap ring (for No. 1 gear selector spring seat) | 90520-15003 |
| 33277 | No. 2 gear selector spring seat | 33277-12010 |
| 33277A | No. 2 compression spring (for gear selector return) | 90501-16136 · 90501-18052 |
| 33277B | E-ring (for No. 2 gear selector spring seat) | 90523-12003 |
| 33280 | Reverse gear positioning pin assembly | 33280-12060 · 33280-12061 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-10065 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05003 |
| 33290 | No. 1 locking steel ball assembly | 33290-12011 |
| 33293G | Locking steel ball retainer | 33293-12020 |
| 33528B | control shaft cover | 33506-12061 |
| 33528C | Oil seal (for control shaft cover) | 90311-18006 |
| 33528E | Bolt (for control shaft cover) | 90119-10288 · 91611-61025 |
| 33531B | Dust boot (for shift lever shaft) | 33531-12020 |
| 33584A | Shift lever stopper gasket | 33584-12050 |
