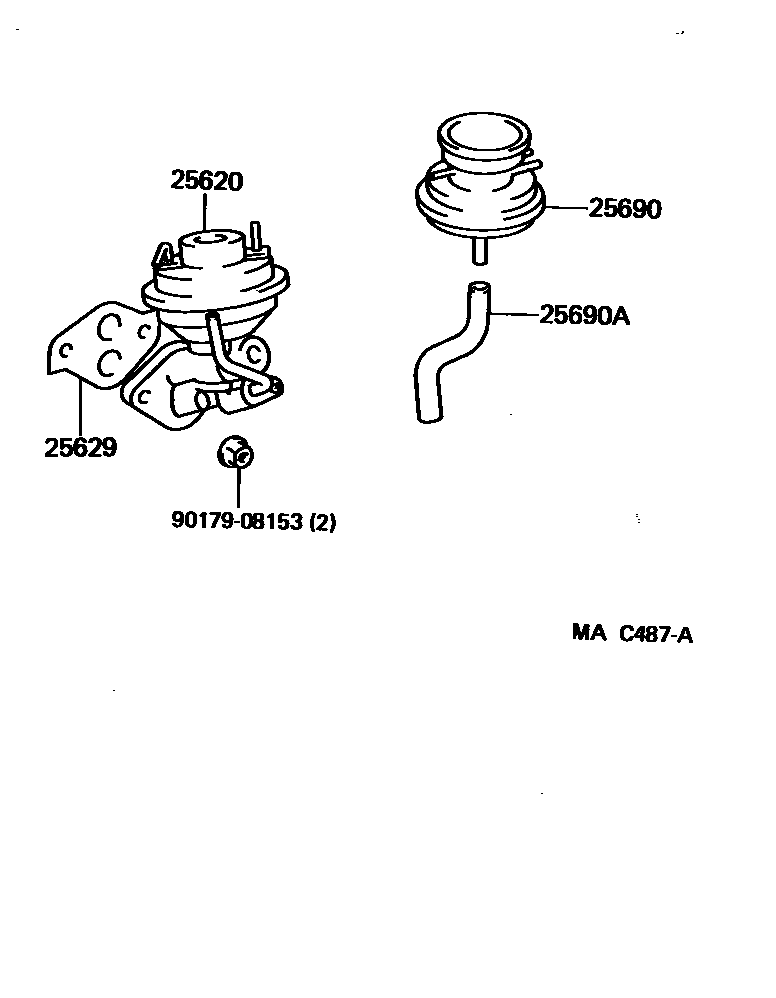

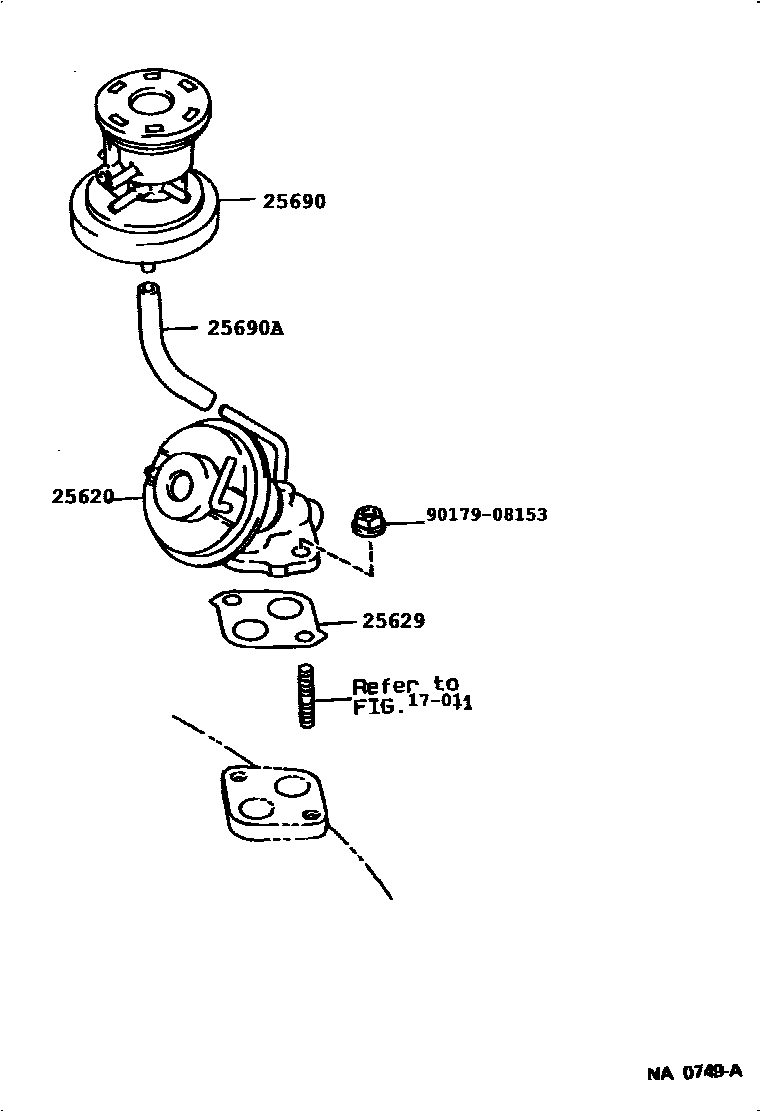

Toyota COROLLA 废气再循环系统 — Figure 2501
Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25620 | EGR valve assembly | 25620-16050 · 25620-16060 · 25620-16070 · 25620-16080 · 25620-16121 · 25620-16131 |
| 25629 | EGR valve adapter gasket | 25627-16020 · 25629-15020 |
| 25690 | EGR vacuum regulator assembly | 25870-16060 · 25870-16070 · 25870-16150 · 25870-16180 |
| 25690A | Hoses (for EGR vacuum regulator) | 25695-16050 · 90445-11017 |
