Toyota COROLLA 分电器 — Figure 1902

Toyota COROLLA EPC diagram 1902, 分电器, with 2 images and 22 PNC and OE references.

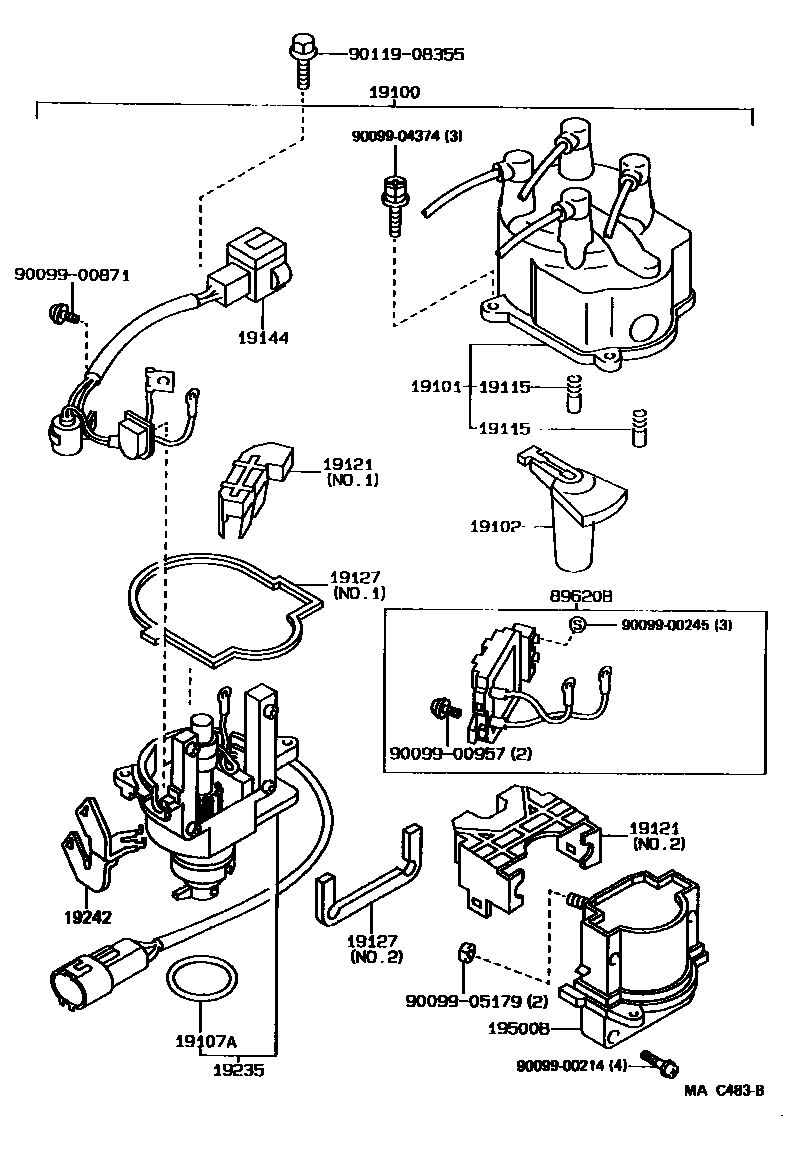

Toyota COROLLA 分电器 EPC diagram — MAC483B
分电器 — MAC483B (198802 – 999999)

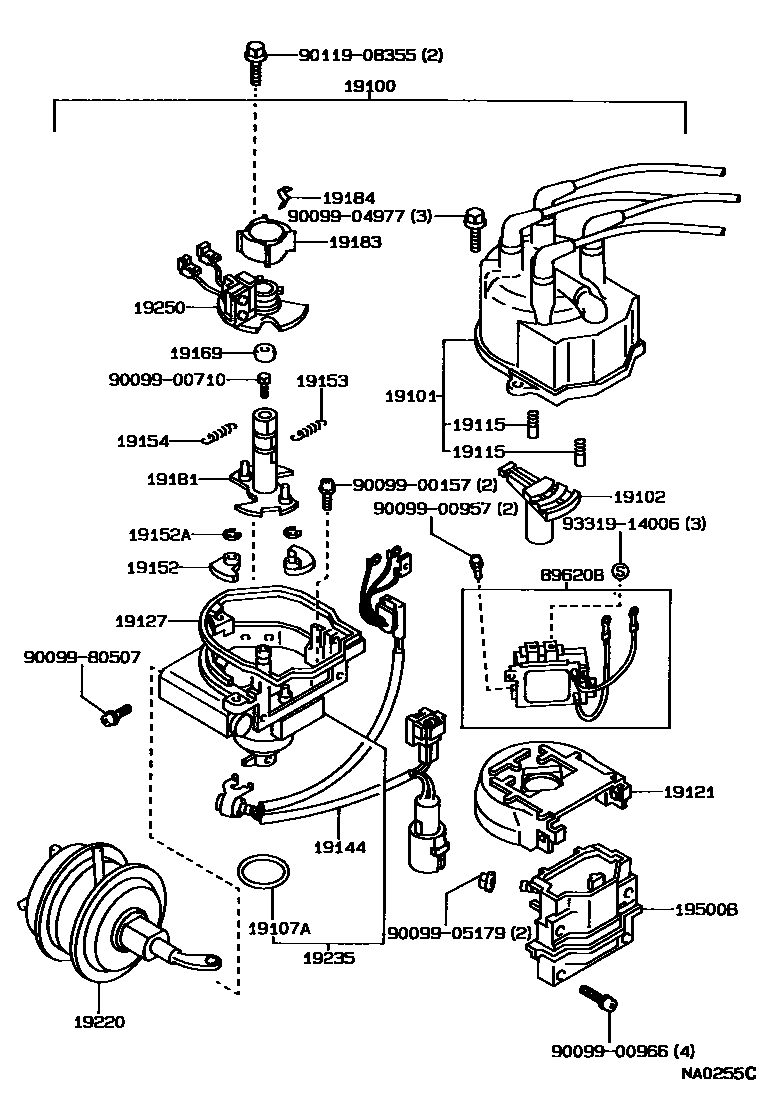

Toyota COROLLA 分电器 EPC diagram — NA0255C
分电器 — NA0255C (198708 – 198909)

PNC and OE references

PNCPart nameOE numbers
19100Distributor assembly19030-16120 · 19030-16140
19101Distributor cover sub-assembly19101-16120 · 19101-16140
19102Distributor flame head sub-assembly19102-11031
19107ADistributor housing O-ring90099-14091 · 96711-35030
19115Distributor cover center piece19115-63010
19121dust cover19121-11080 · 19121-63040 · 19121-63090
19127Dust seal19127-15120 · 19127-63010 · 19127-63020
19144Distributor breaker lead19144-16090 · 19144-16190
19152Speed regulator weight19152-15160
19152ASnap ring (for governor weight)90099-07122
19153A governor spring19153-16230
19154B governor spring19154-16230
19169Cam grease stop19169-63011
19181Distributor signal distributor19181-16220
19183Signal splitter19183-15010
19184Distribution head fixed spring19184-63010
19220Distributor vacuum advance device assembly19220-16250
19235Distributor housing19235-15130 · 19235-16090
19242Cable clip19242-15140
19250Signal generator assembly19251-16100
19500BIgnition coil assembly90919-02164 · 90919-02196
89620BIgnition assembly89620-10120 · 89620-12430
