Toyota COROLLA Exhaust Pipe — Figure 1702

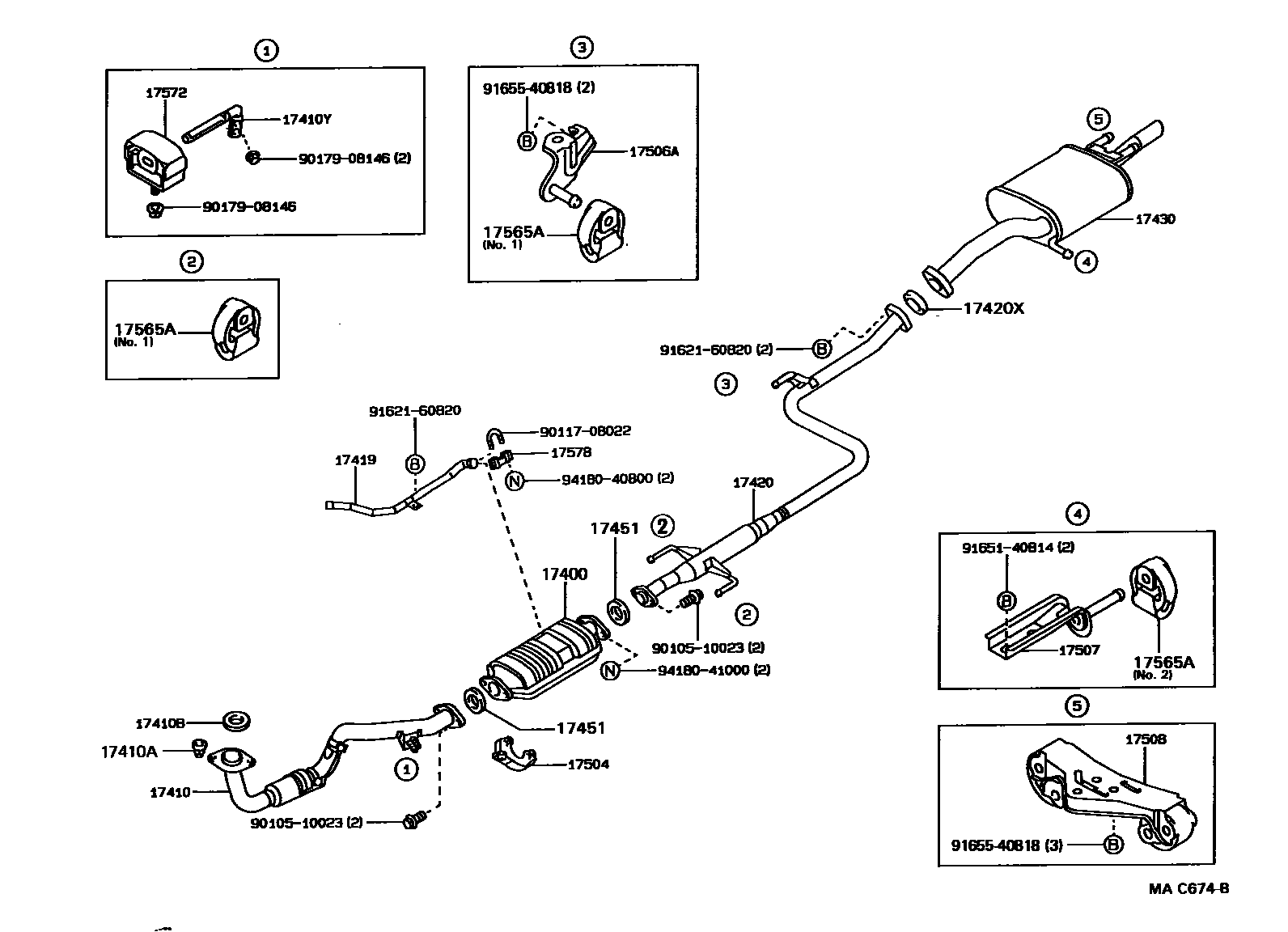

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-01070 · 18450-16330 · 18450-16360 · 18450-16390 · 18450-16400 · 18450-16500 · 18450-16520 |
| 17410 | Front exhaust pipe assembly | 17410-01030 · 17410-01031 · 17410-02030 · 17410-02060 · 17410-02061 · 17410-02080 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06045 · 90917-06047 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 17561-16140 |
| 17419 | Three-way catalytic converter intake pipe | 17409-02010 |
| 17420 | Central exhaust pipe assembly | 17420-01030 · 17420-01031 · 17420-02020 · 17420-02070 |
| 17420X | Center exhaust pipe liner | 90917-06039 |
| 17430 | Exhaust tailpipe assembly | 17430-01040 · 17430-01041 · 17430-02040 · 17430-02070 |
| 17451 | Exhaust pipe gasket | 90917-06045 · 90917-06047 |
| 17504 | Three-way catalytic converter bracket sub-assembly | 17504-01010 · 17504-16010 · 17504-16011 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-01010 · 17506-15050 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-01020 · 17507-15030 |
| 17508 | No. 3 exhaust pipe bracket sub-assembly | 17508-01020 · 17508-15030 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-01080 · 17565-01090 · 17565-15050 · 17565-15070 |
| 17572 | No. 1 exhaust pipe bracket | 17572-01020 · 17572-15050 |
| 17578 | Pipe clamp | 17578-15020 |
