Toyota COROLLA Manifold — Figure 1701

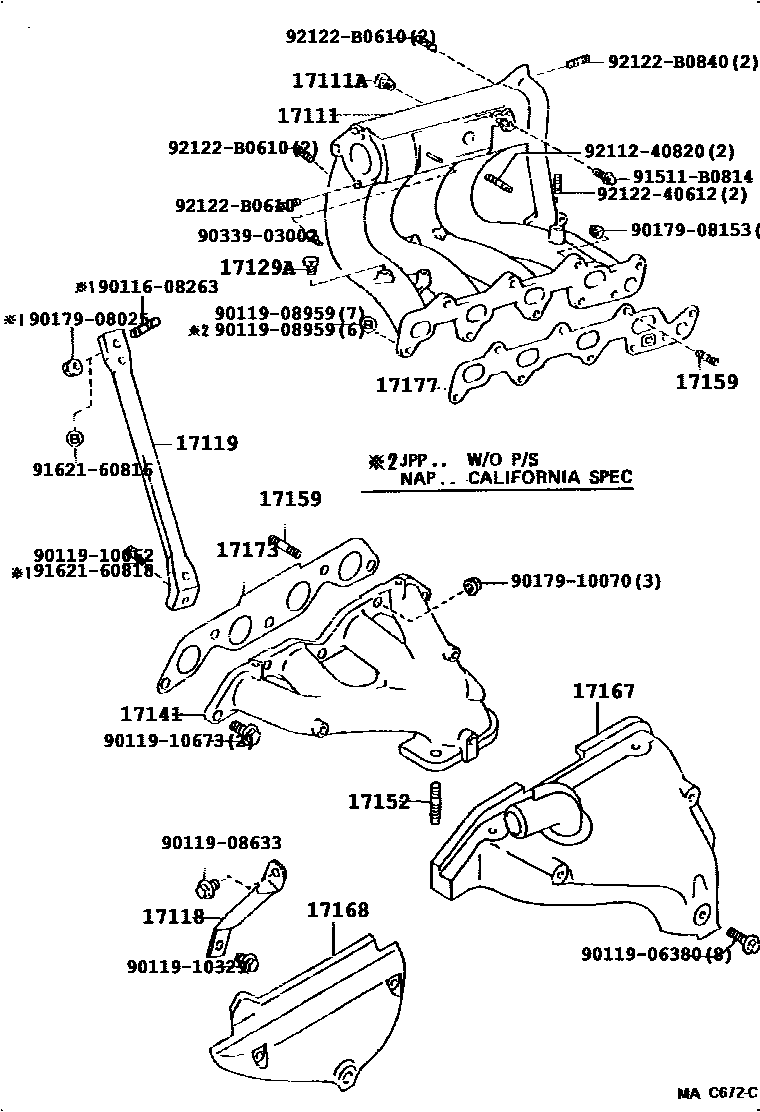

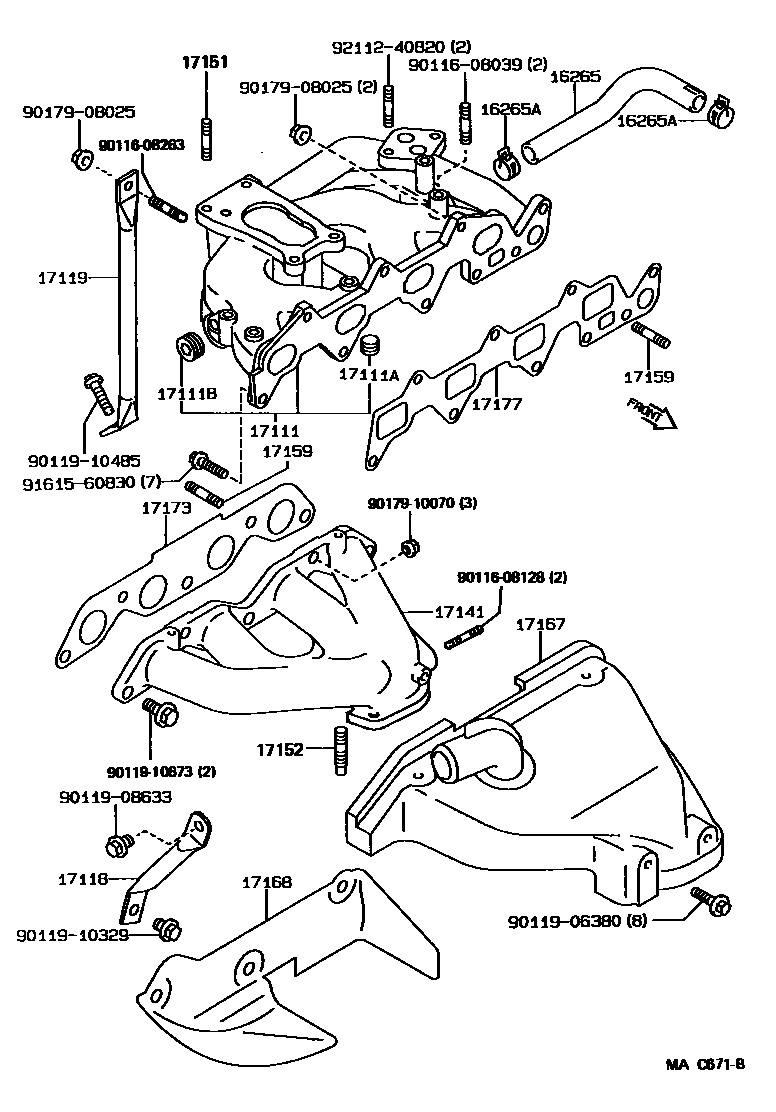

Toyota COROLLA EPC diagram 1701, Manifold, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16265 | Intake manifold water hose | 16265-15020 |
| 16265A | Hose clamp or clip (for intake manifold water hose) | 90467-21006 |
| 17111 | Intake Manifold | 17101-16070 · 17101-16140 · 17101-16170 |
| 17111A | No. 1 screw plug | 90344-53011 · 90345-51006 |
| 17111B | No. 2 screw plug | 90344-54003 |
| 17118 | Manifold stays | 17118-16070 · 17118-16071 |
| 17119 | No. 2 manifold stay | 17139-15020 · 17139-16030 |
| 17129A | Connector No. 1 | 90345-51006 |
| 17141 | exhaust manifold | 17141-16220 · 17141-16250 |
| 17151 | Studs (for manifold to carburetor) | 92112-60832 |
| 17152 | Studs (for manifold to exhaust) | 90116-10146 |
| 17159 | Studs (for manifold to cylinder head) | 92112-60825 · 92112-61028 · 92112-61032 |
| 17167 | Exhaust manifold No. 1 heat shield | 17107-16080 · 17167-15060 · 17167-16100 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-16070 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-15010 · 17173-15011 · 17173-15040 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-15020 · 17171-15021 · 17171-16030 · 17171-16031 |
