Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.

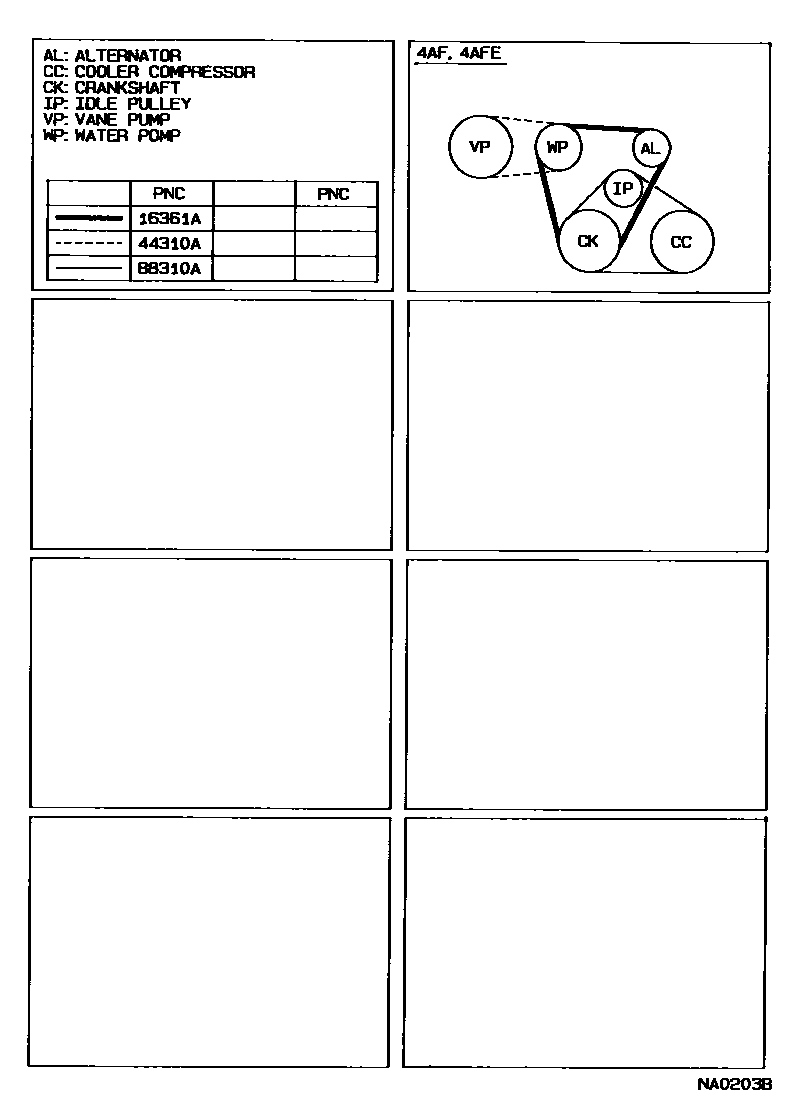

Toyota COROLLA V-Belt EPC diagram — NA0203B
V-Belt — NA0203B (198708 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02272 · 90916-02325 · 99365-00970 · 99365-00980 · 99365-20980
44310AV-belt (for vane pump)90916-02276 · 99363-50630
88310ANo. 1 V-belt (cooler compressor to crankshaft pulley)90916-02275 · 90916-02354 · 99364-00860
