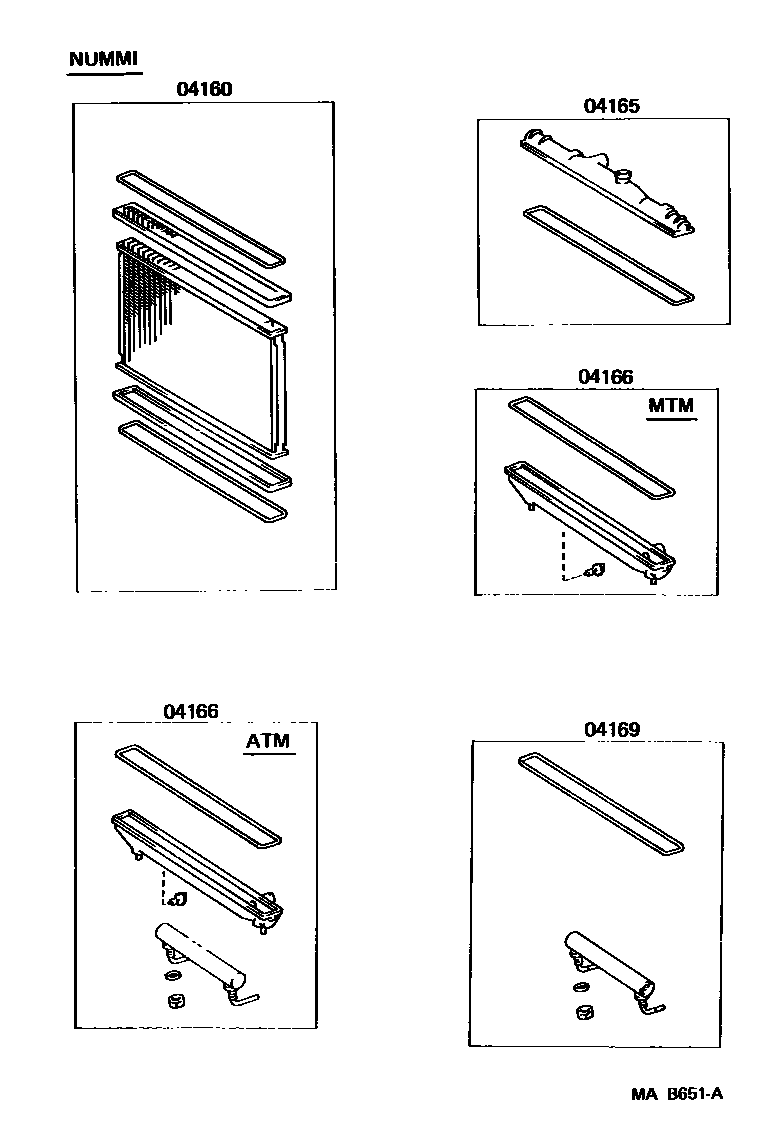

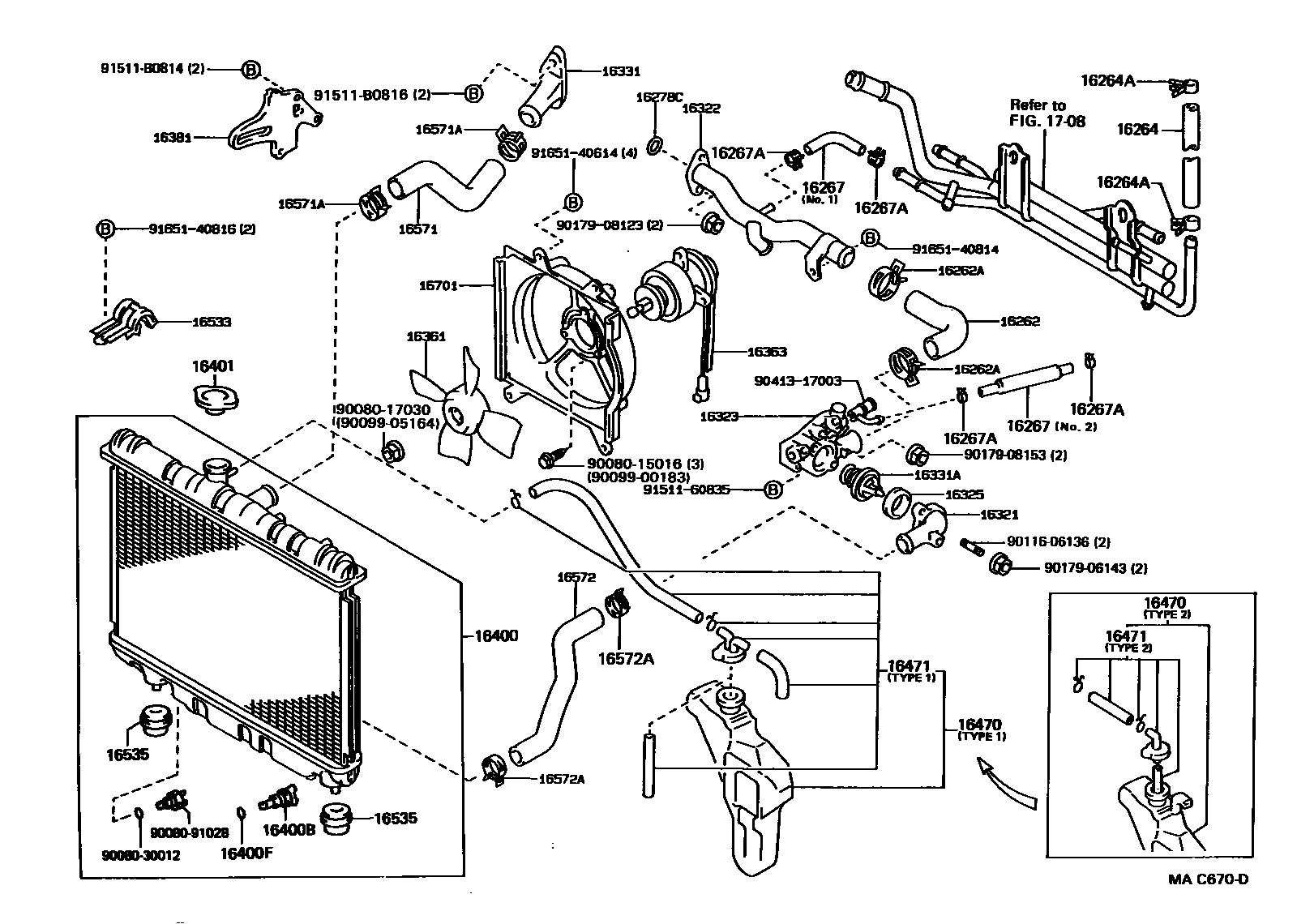

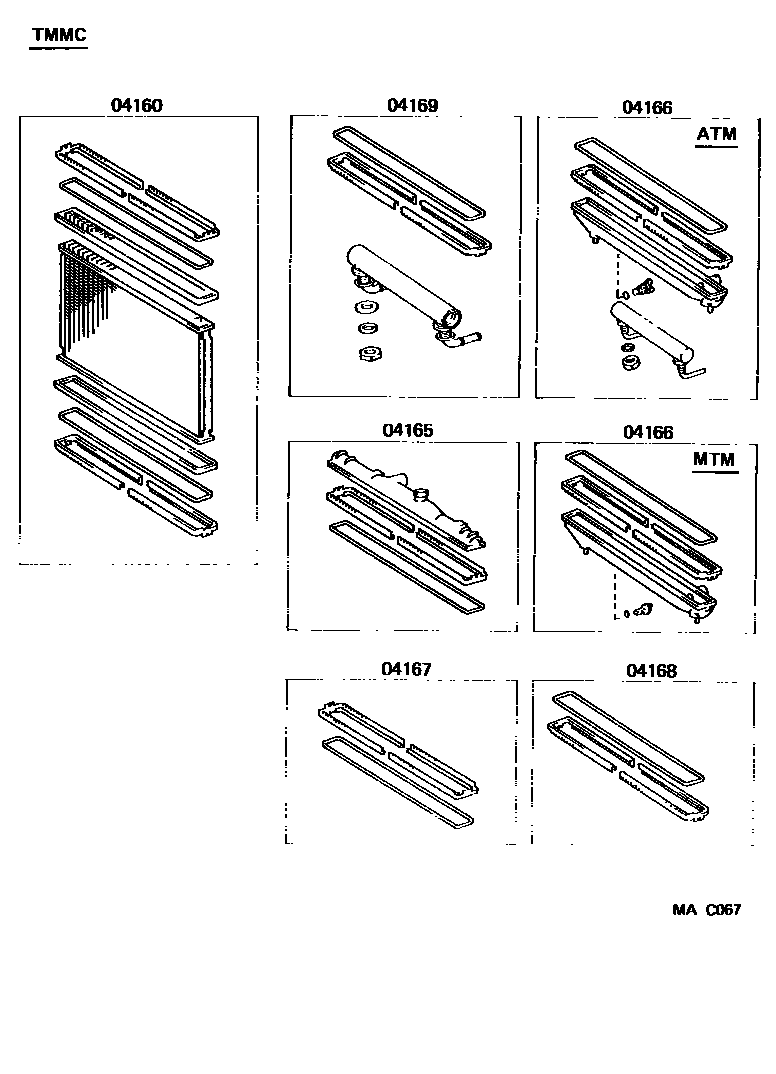

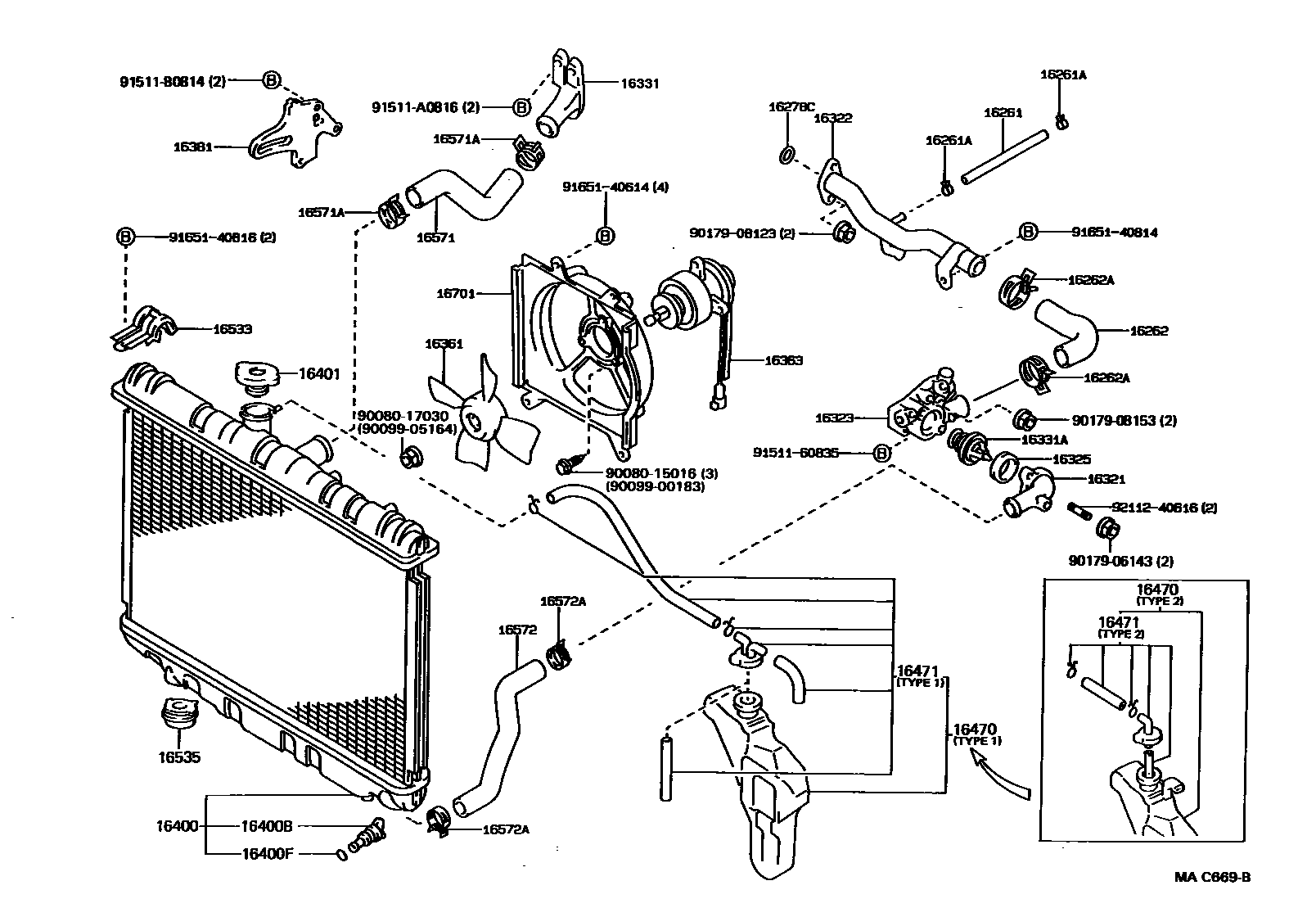

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 4 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04160 | Radiator core assembly | 04160-01021 · 04160-01030 · 04160-02010 · 04160-02020 · 04160-02030 |
| 04165 | Radiator upper tank assembly | 04165-01020 · 04165-02010 · 04165-02020 |
| 04166 | Radiator lower tank assembly | 04166-01030 · 04166-01070 · 04166-01080 · 04166-02010 · 04166-02020 · 04166-02030 · 04166-02040 |
| 04167 | Upper radiator ring and fin assembly | 04167-02010 · 04167-02020 |
| 04168 | Lower radiator ring and fin assembly | 04167-02020 · 04168-02010 |
| 04169 | Transmission oil cooler assembly (for ATM) | 04169-01020 · 04169-02010 · 04169-02020 |
| 16261 | HOSE, WATER BY-PASS | 99555-10200 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-13001 |
| 16262 | water inlet hose | 16262-15030 |
| 16262A | Clamp (for water inlet hose) | 90467-36001 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-16050 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13001 · 96135-41300 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16264-16050 · 16267-16040 · 90447-15021 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-13001 · 96135-41300 |
| 16278C | O-ring (for No. 2 water bypass pipe) | 96711-24035 |
| 16321 | water inlet | 16321-15020 |
| 16322 | PIPE, WATER INLET | 16322-15020 · 16322-15040 · 16322-15041 |
| 16323 | HOUSING, WATER INLET | 16323-15090 · 16323-16090 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63010 |
| 16331 | Water outlet | 16331-15070 · 16331-15080 |
| 16331A | thermostat | 90916-03046 |
| 16361 | Fan | 16361-01030 |
| 16363 | cooling fan motor | 16363-01030 |
| 16381 | Fan belt adjustment lever | 16381-15060 |
| 16400 | Radiator assembly | 16410-01030 · 16410-01040 · 16410-01070 · 16410-01080 · 16410-02010 · 16410-02020 · 16410-02030 · 16410-02070 · 16410-02080 |
| 16400B | Radiator drain switch screw plug | 23322-01010 · 90080-34002 |
| 16400F | Seal (for radiator drain switch) | 90080-30011 |
| 16401 | Radiator cover sub-assembly | 16401-16010 · 16401-63010 |
| 16470 | Radiator reservoir assembly | 16470-01020 · 16470-02010 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-01020 · 16405-02010 |
| 16533 | Radiator upper bracket | 16533-01020 · 16533-15090 |
| 16535 | Radiator lower support | 16535-01020 · 16535-11030 · 16535-15020 |
| 16571 | Radiator water inlet hose | 16571-01030 · 16571-02020 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34003 |
| 16572 | Radiator outlet hose | 16572-01030 · 16572-02010 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-34003 |
| 16701 | Fan cover sub-assembly | 16711-01030 |
