Toyota COROLLA Cylinder Head — Figure 1104

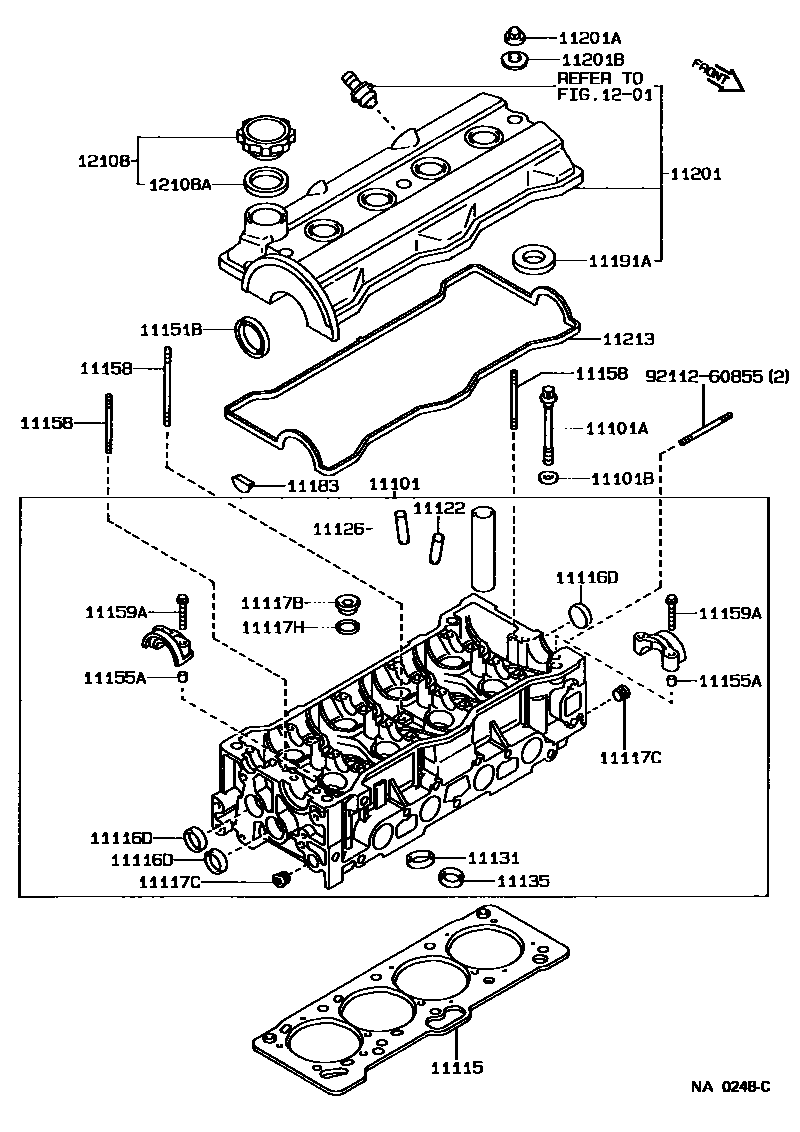

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-19235 · 11101-19245 · 11101-19255 · 11101-19265 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90109-10058 · 90109-10059 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10344 |
| 11115 | GASKET, CYLINDER HEAD | 11115-16082 |
| 11116D | No. 4 sealing plug | 96411-42800 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117C | No. 3 headed tapered thread plug | 90344-53005 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-15030 · 11123-15030 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-15030 · 11123-15030 |
| 11131 | intake valve seat | 11131-15040 · 11132-15040 |
| 11135 | Exhaust valve seat | 11135-15030 · 11136-15030 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90311-35013 · 90311-35022 · 90311-35025 |
| 11155A | PIN, RING W/HEAD | 90253-09001 |
| 11158 | STUD (FOR CYLINDER HEAD TO HEAD COVER) | 90116-06073 · 90116-06074 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90109-06080 |
| 11183 | PLUG, SEMICIRCULAR | 11183-15020 |
| 11191A | Gasket (for spark plug bushing) | 11193-15010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11210-16100 |
| 11201A | Cap nut (for cylinder head cover) | 90176-06008 |
| 11201B | Gasket (for cylinder head cover) | 90210-08020 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-15050 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-13030 · 12180-62010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-37140 |
