Toyota COROLLA Standard Tools — Figure 0901

Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 6 PNC and OE references.

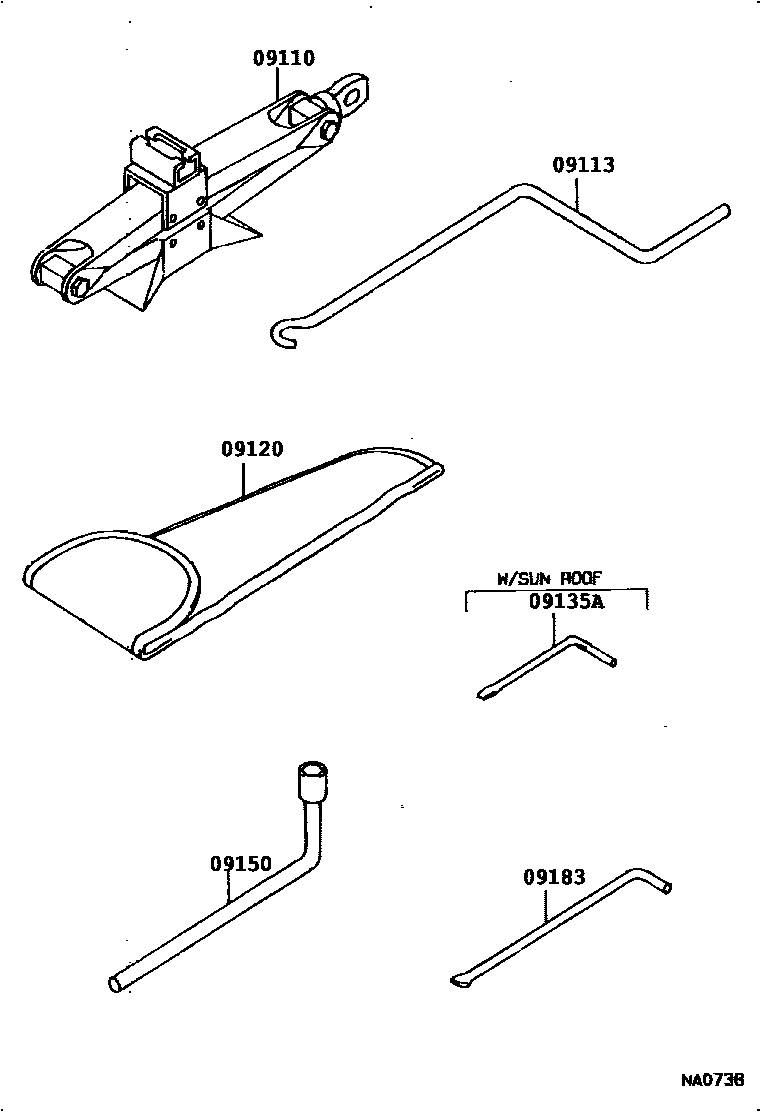

Toyota COROLLA Standard Tools EPC diagram — 090586
Standard Tools — 090586 (198708 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09111-03010 · 09111-03011 · 09111-12110
09113Jack Handle09113-01010 · 09113-20030
09120Tool Bag09120-01020
09135Ascrewdriver tip09135-03010
09150Wheel Nut Wrench09150-01010
09183Wheel Cap Remover09183-01020
