Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 9 PNC and OE references.

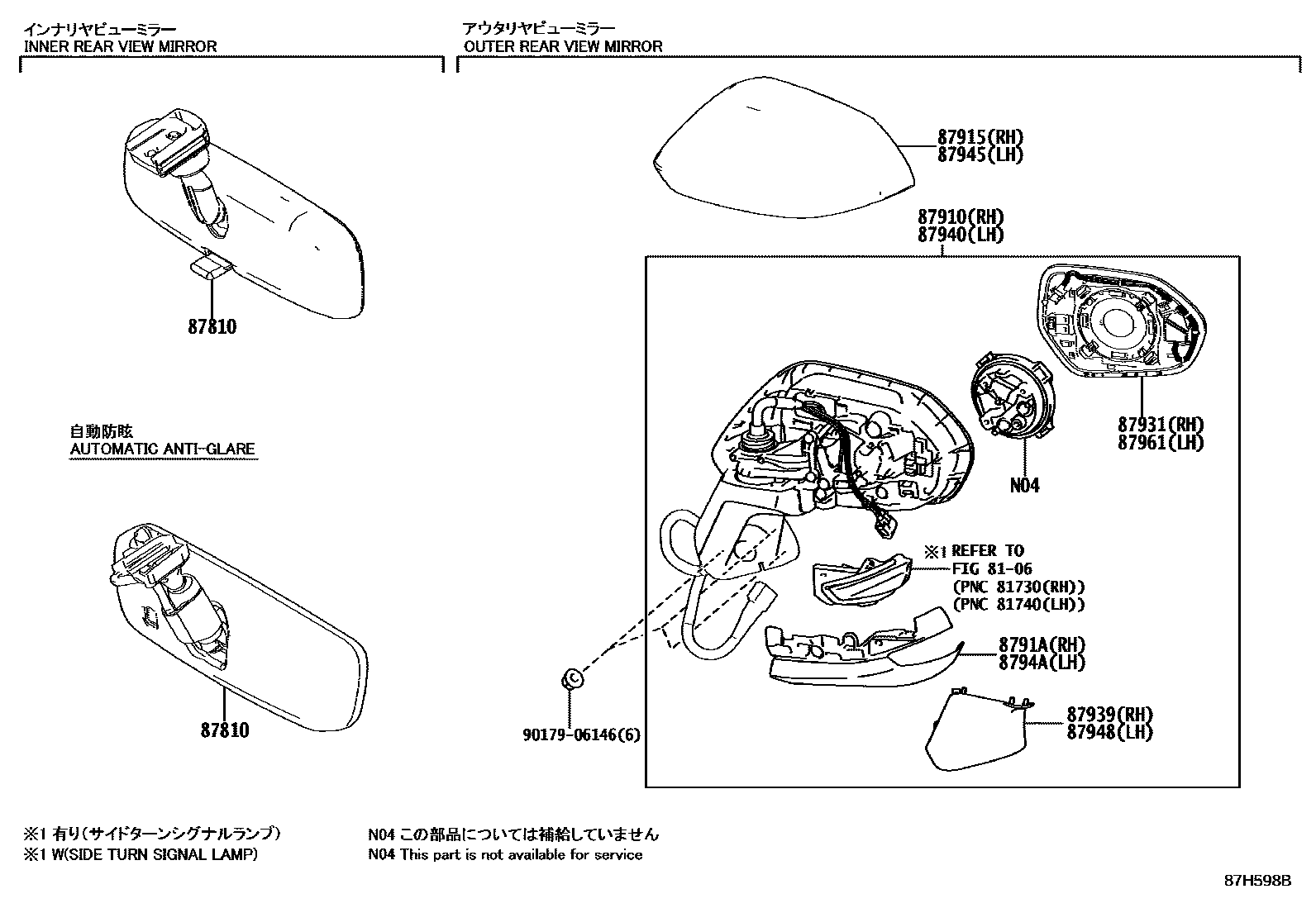

Toyota COROLLA 后视镜 EPC diagram — 87H598B
后视镜 — 87H598B (201901 – 202106)

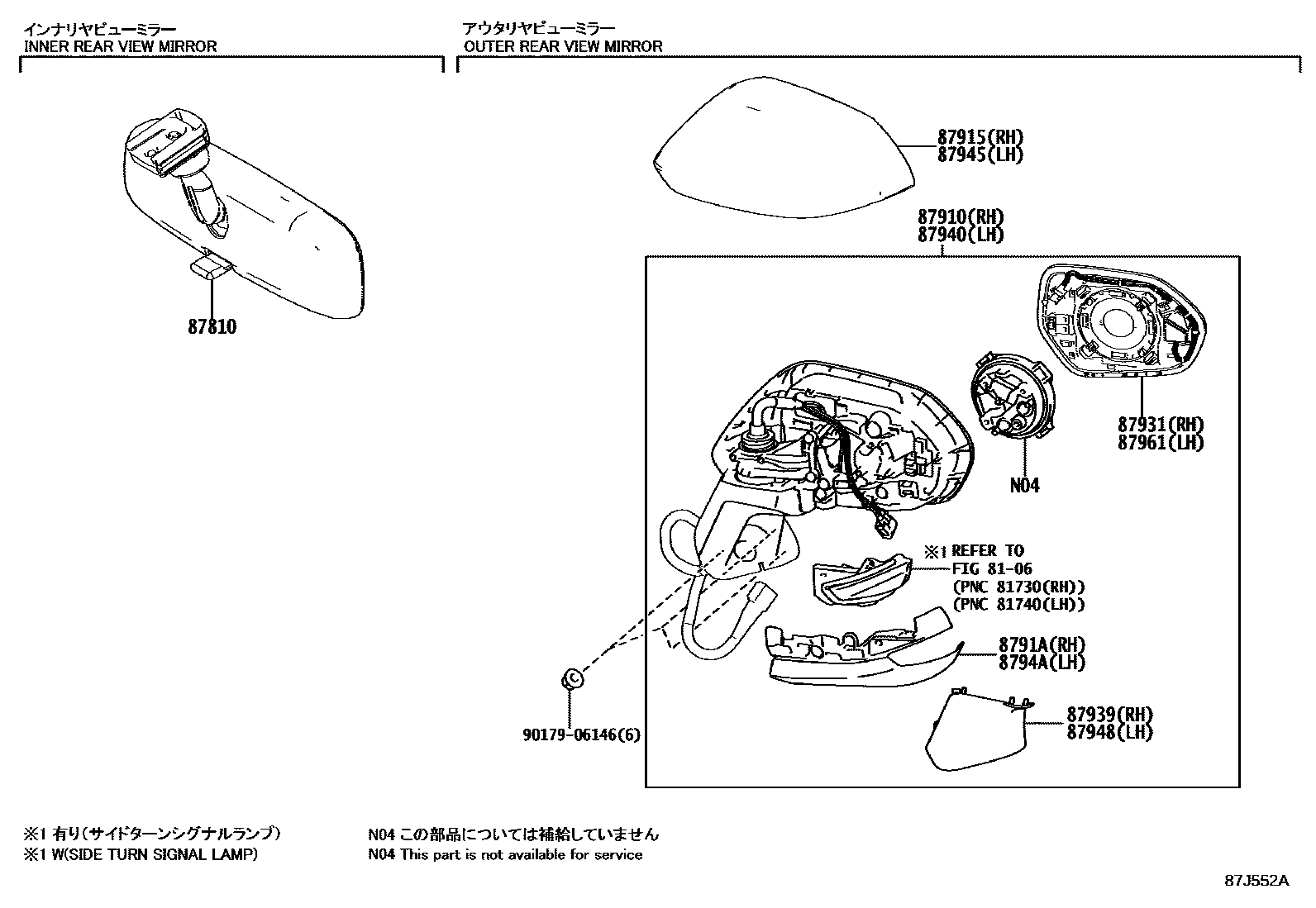

Toyota COROLLA 后视镜 EPC diagram — 87J552A
后视镜 — 87J552A (202106 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0WS10 · 87810-28140
87910Right exterior rearview mirror assembly87910-12F60 · 87910-12F80 · 87910-12F90 · 87910-12K60 · 87910-12K70
8791ARight exterior rearview mirror cover No. 28791B-12F60 · 8791B-12G30
87931Right exterior rearview mirror87902-33100 · 87902-33110 · 87902-33150
87939Right exterior rearview mirror hole cover87939-12G30
87940Left exterior rearview mirror assembly87940-12F80 · 87940-12G00 · 87940-12G10 · 87940-12K90 · 87940-12L00
87948Left exterior rearview mirror hole cover87948-12G50
8794ANo. 2 left exterior rearview mirror cap8794B-12F80 · 8794B-12G50
87961Left exterior rearview mirror87907-12040 · 87907-33080 · 87907-33090
