Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

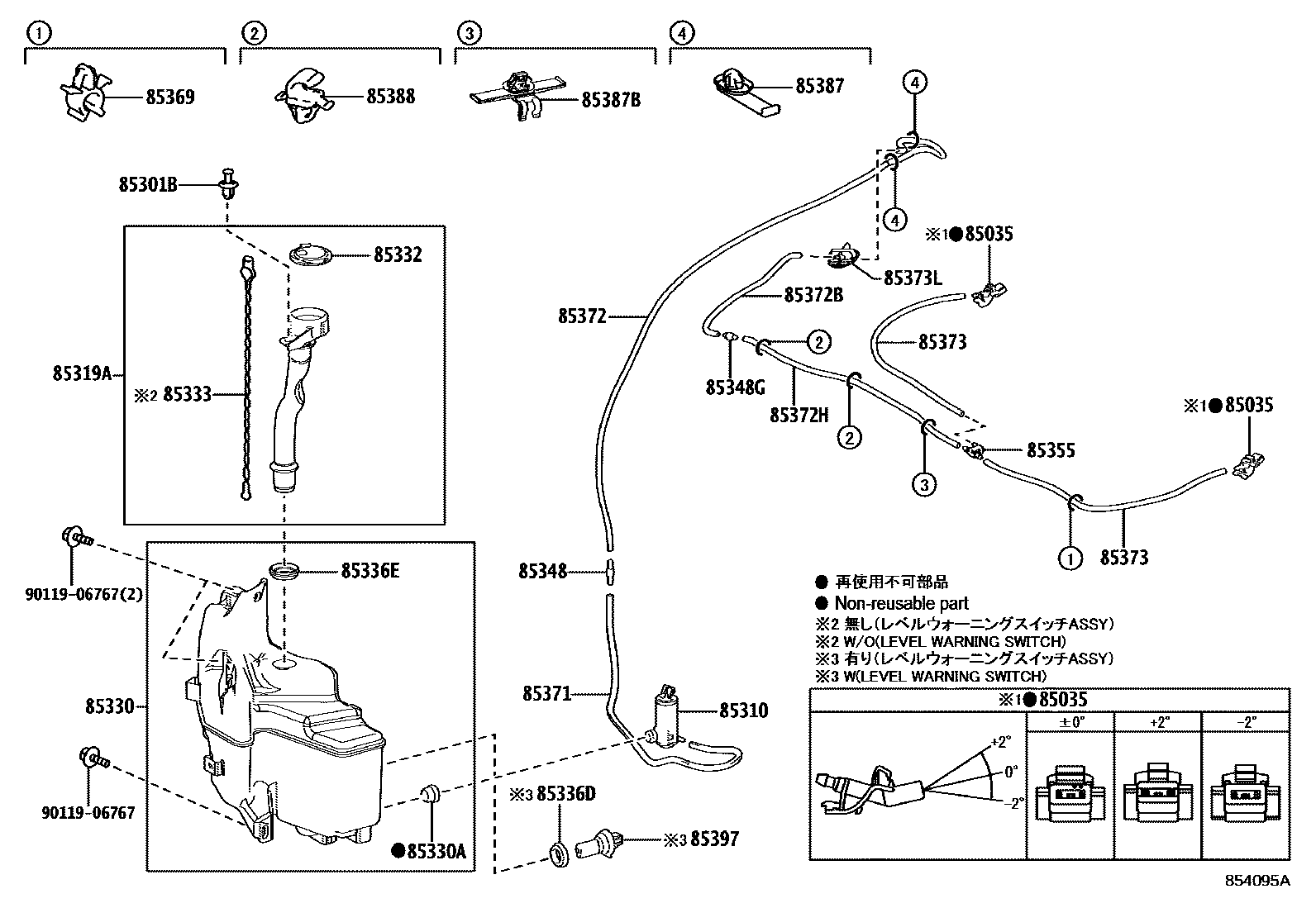

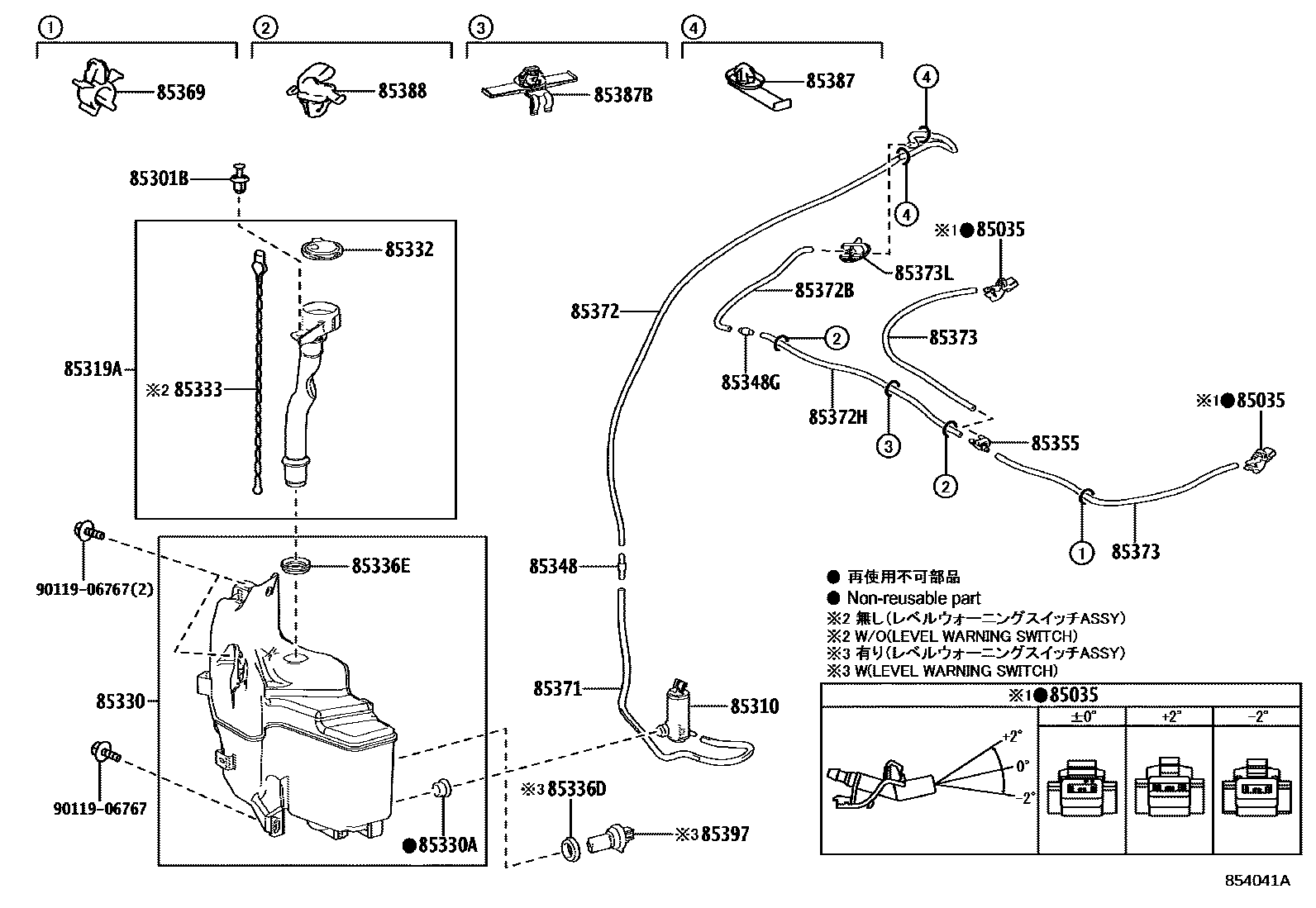

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12360 · 85381-12440 · 85381-33080 |
| 85301B | ATTACHE, RONDELLE | 90467-07214 |
| 85310 | Windshield washer motor and pump assembly | 85330-33070 |
| 85319A | water inlet hose | 85301-12030 · 85301-12040 · 85301-12050 |
| 85330 | Windshield washer fluid tank assembly | 85315-12720 · 85315-12730 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85386-60050 |
| 85333 | Windshield washer fluid tank filter | 85312-47020 |
| 85336D | Windshield washer fluid tank seal | 85319-33230 |
| 85336E | Windshield washer water inlet hose seal | 85336-30160 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85348G | Windshield washer hose connector No. 2 | 85349-89122 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85369 | card holder | 90469-07011 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-62176 |
| 85373L | OEILLET, RONDELLE | 85373-12050 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-52090 |
| 85387B | No. 3 cleaner clip | 82711-35750 |
| 85388 | Clip No. 2 (for windshield washer) | 85371-12040 |
| 85397 | Liquid level warning switch assembly | 85397-30400 |
